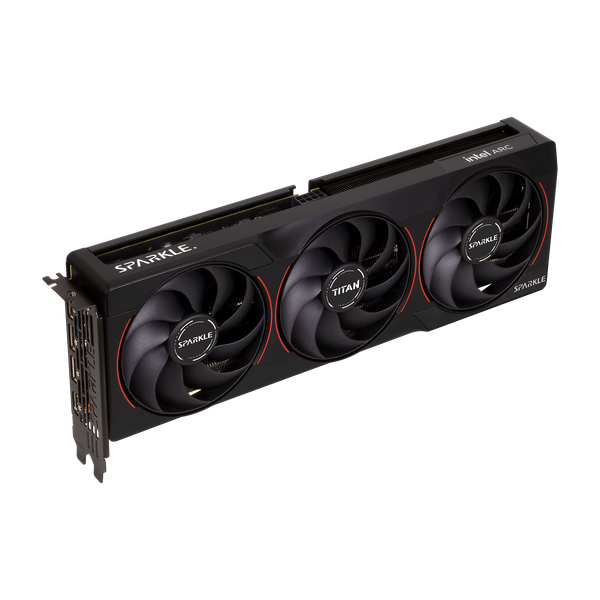

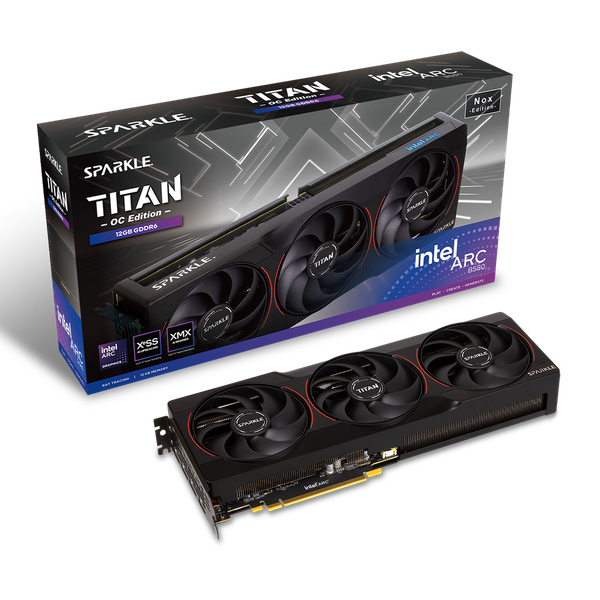

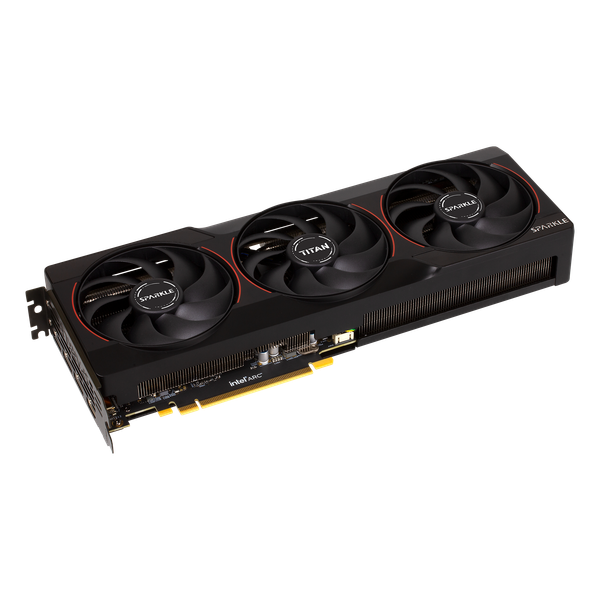

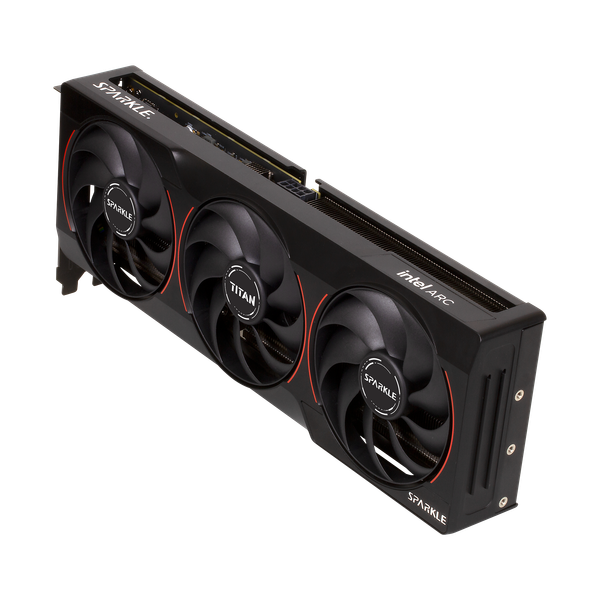

VGA SPARKLE Intel Arc B580 TITAN Nox OC 12GB GDDR6 SB580TB-12GOC

SPECFICATIONS

⚫ Graphics Clock: 2740 MHz

⚫ Xe-Core: 20

⚫ Ray Tracing Units: 20

⚫ Intel® XMX Engines: 160

⚫ GPU Peak Tops (Int8): 233

⚫ Memory Size: 12GB GDDR6

⚫ Graphics Memory Interface: 192-bit

⚫ Graphics Memory Bandwidth: 456 GB/s

⚫ Max Res.: Up to 8K at 120Hz HDR with DSC

⚫ PCI Express Configurations: PCI Express 4.0 x8

⚫ TBP: 200 Watt

⚫ Lighting: Blue Breathing Light

⚫ EAN: 4711342291105

KEY FEATURES

⚫ TORN Cooling 2.0

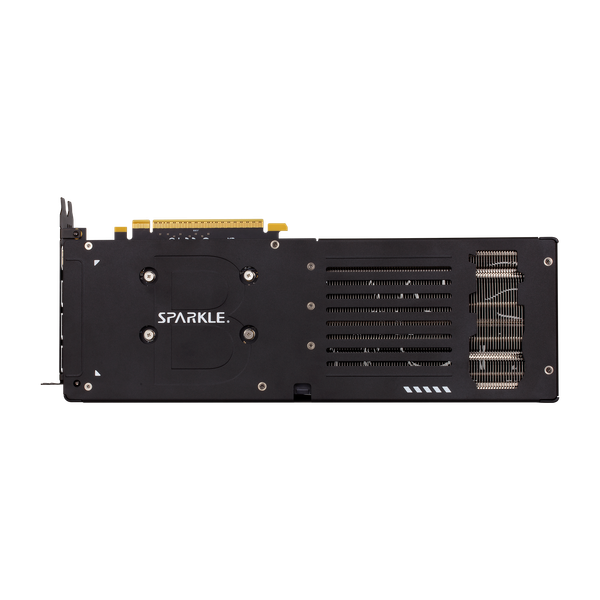

⚫ Metal Backplate, Pre-Installed

⚫ Ray Tracing

⚫ Variable Rate Shading (VSR)

⚫ DirectX 12 Ultimate

⚫ Vulkan 1.3

⚫ OpenGL 4.6

⚫ OpenCL 3.0

⚫ Adaptive Sync

⚫ AV1 Encode / Decode

⚫ VP9 Bitstream & Decoding

⚫ Intel Deep Link Hyper Compute

⚫ Intel Deep Link Hyper Encode

⚫ Intel Deep Link Stream Assist.

RESOLUTION & REFRESH

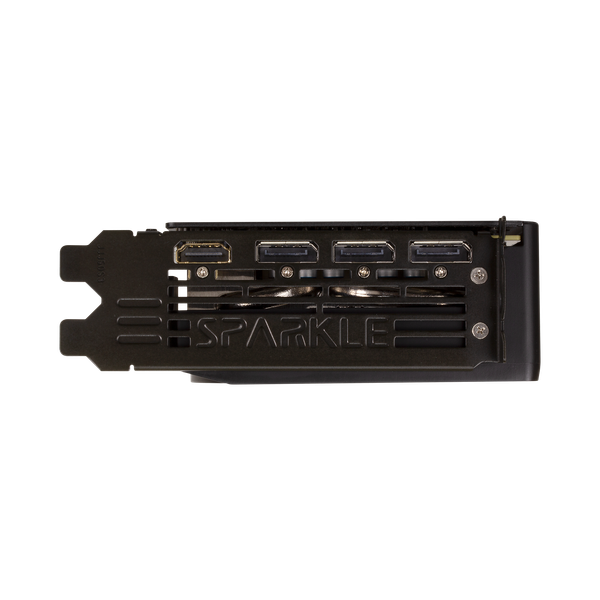

⚫ HDMI 2.1 (Max): 7680 x 4320 @120Hz

⚫ 3x DisplayPort 2.1 (Max): 7680 x 4320@60Hz

REQUIREMENTS

⚫ 10th Gen Intel® Core™ / AMD Ryzen™ 3000 Series

Processors or newer with compatible motherboards

supporting Resizable BAR / Smart Access Memory

⚫ PCI-Express® compliant MB with one x16 PCIe slot

⚫ 600W or greater PSU with 1x 8-pin PCIe power connector

⚫ 8GB of system memory minimum, 16GB recommended

⚫ Windows® 11 64-bit or Windows® 10 64-bit

DIMENSIONS

⚫ Dimension: 315 x 117 x 44mm

⚫ Weight: 954 g

⚫ Width: 2.2-Slot

Intel® Arc™ B580

SPARKLE Intel® Arc™ B580 TITAN Nox OC

FEATURES

• TORN Cooling 2.0
• Tri-fan, 2.2-slot, metal backplate

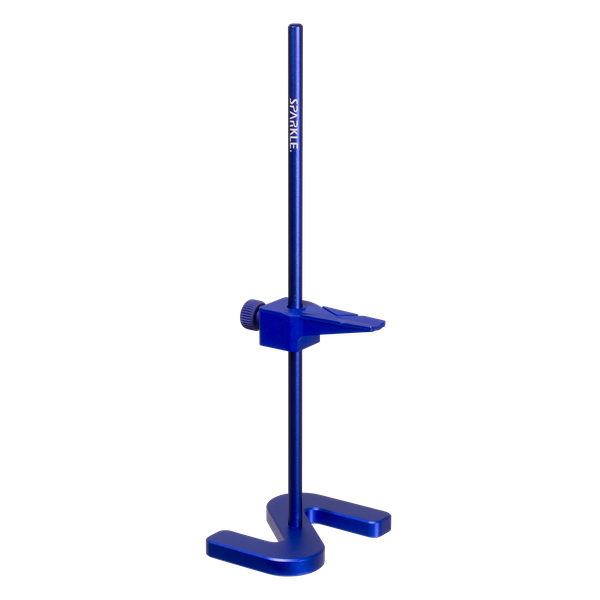

• Limited GPU Holder Included
