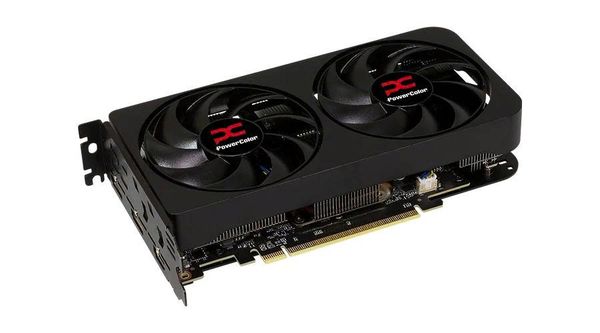

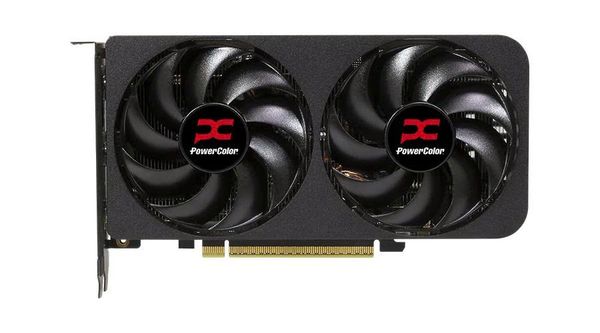

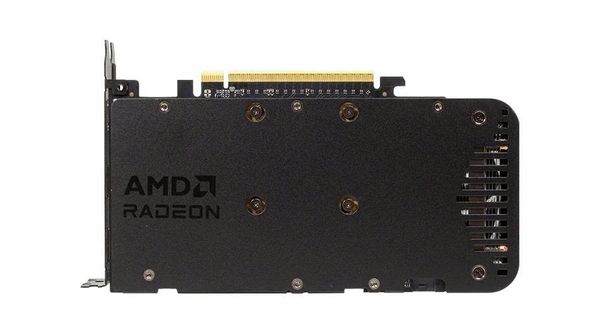

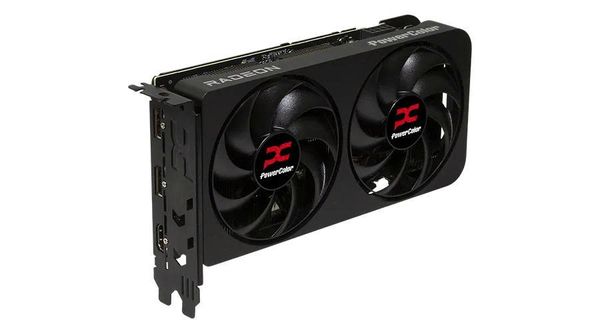

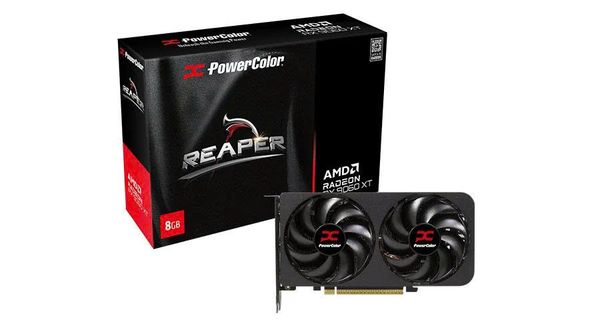

VGA PowerColor Reaper AMD Radeon RX 9060 XT 8GB GDDR6 RX9060XT 8G-A

SPECIFICATION

Graphics Engine

AMD Radeon™ RX 9060 XT

Model Name

RX9060XT 8G-A

Series

Reaper

Stream Processor

2048 Units

Video Memory

8GB GDDR6

Memory Speed

20.0 Gbps

Memory Interface

128-bit

Engine Clock(STD/Silent)

up to 2530MHz(Game)¹
up to 3130MHz(Boost)²

Bus Standard

PCIE 5.0 x16

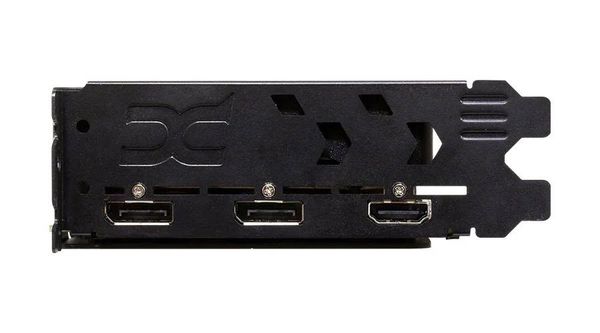

Standard Display Connectors

1 x HDMI 2.1b，2 x DisplayPort 2.1a

Feature Support

DirectX® Support

12

OpenGL

4.6

AMD Eyefinity Technology

Support

AMD Stream Technology

Support

AMD Smart Access Memory

Support

Maximum Resolution

DisplayPort

7680×4320

HDMI

7680×4320

Power Specs + Board Dimensions

Board Dimensions

200mm*100mm*39mm
220mm*120mm*40mm(with bracket)

Slot

2

Minimum System Power requirement (W)

500W

Extension Power Connector

One 8-pin PCI Express Power connector
