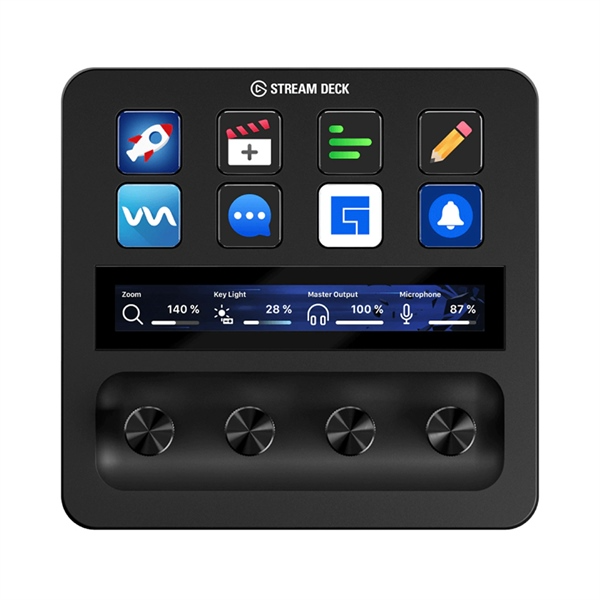

Thiết bị Stream Elgato Stream Deck + và XLR 10GBD9921

*Stream Deck + XLR | SKU: 10GBD9921

Tech Specs

Download Quick Start Guide

SIZE

140 x 138 x 110 mm | 5.5 x 5.4 x 4.3 in

WEIGHT

465 g | 1 lb

KEYS

8 x customizable LCD keys

MULTIFUNCTION DIALS

4 x 360° encoders with push function

LCD TOUCH PANEL

108 x 14 mm | 4.2 x 0.5 in

INTERFACE

USB 2.0

In The Box

Stream Deck +, USB-C to USB-A Cable, Quick Start Guide

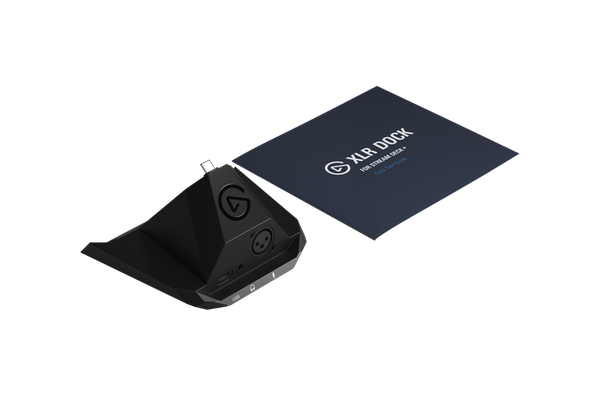

* XLR Dock for Stream Deck +

Tech Specs

FREQUENCY RESPONSE

20 Hz – 20 kHz

DYNAMIC RANGE

100 dB (120 dB with Clipguard)

EQUIVALENT INPUT NOISE (EIN)

-130 dBV at 60 dB gain

GAIN RANGE

0 – 75 dB

PHANTOM POWER

48 V DC, 7 mA

MAX INPUT LEVEL

10 V at 0 dB gain (with Clipguard)

MAX OUTPUT LEVEL

77 mW

RESOLUTION

24-bit

SAMPLE RATE

48 kHz

INTERFACE

USB 2.0, Type-C

DIMENSIONS

137 (W) x 115 (D) x 76 (H) mm | 5.39 x 4.53 x 2.99 in

WEIGHT

169 g | 5.96 oz

In The Box

XLR Dock for Stream Deck +

Quick Start Guide
