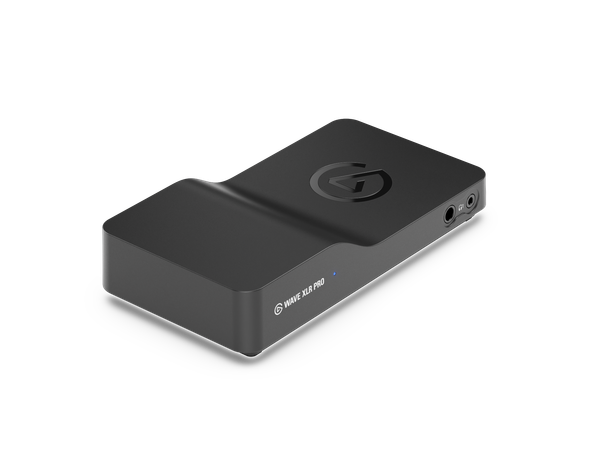

Wave XLR Pro

Integrated Audio Matrix

Built for modern workflows, Wave XLR Pro delivers onboard effects with real-time processing, VST effects integration, and full control through Wave Link. Its software-driven architecture gives you the kind of flexibility traditional gear can’t match—all powered by Wave FX Processor.

Tech Specs

Download Quick Start Guide

XLR INPUT 1/2

Frequency range: 20 - 20.000 Hz
Dynamic range: 135 dB
Equivalent Input Noise (EIN) (A-weighted): -130 dBV(A)
Gain: 80 dB (digital)
Phantom Power: 48 V, 7 mA
Maximum input level: 6 dBV
ADC resolution and sample frequency: 24 bit; 48 kHz

HEADPHONE OUTPUT 1/2

Maximum output level @16R: 50 mW
Maximum output level @600R: 18 mW
DAC resolution and frequency: 32 bit; 48 kHz

LINE IN

Frequency range: 20 - 20.000 Hz
Maximum input level: 10 dBV

LINE OUT

Frequency range: 20 - 20.000 Hz
Maximum output level: 10 dBV

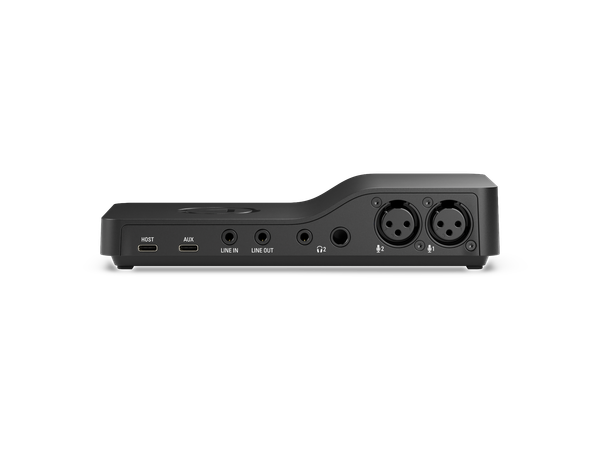

CONNECTORS

Microphone 1 (XLR, Mono)
Microphone 2 (XLR, Mono)

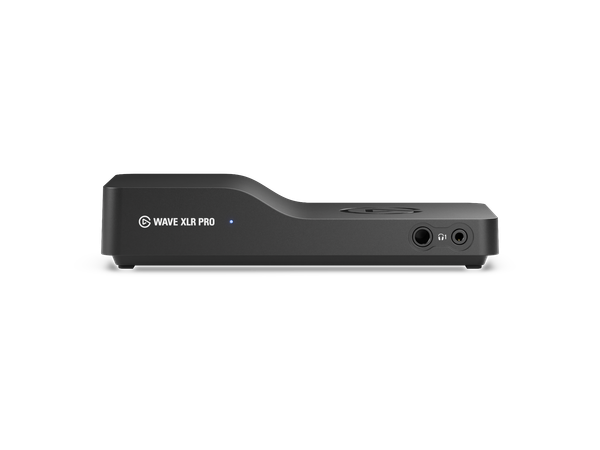

Headphone 1 (6.3 and 3.5 mm TRS Jack, Stereo)
Headphone 2 (6.3 and 3.5 mm jack, Stereo)
Line Input (3.5 mm TRS jack, Stereo)
Line Output (3.5 mm TRS jack, Stereo)
Host I/O (USB-C 2.0 High-Speed)
Aux I/O (USB-C 2.0 Full-Speed)

MOUNTING POINT

3/8” (housing) and 1/4” (adaptor)

POWER CONSUMPTION

5 VDV 900 mA max

WEIGHT

385 g

DIMENSIONS

97 × 185 × 37 mm (D x W x H)

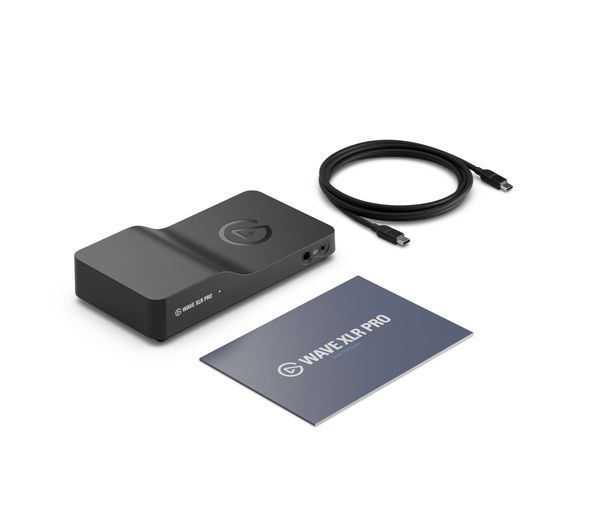

In The Box

Wave XLR Pro, USB-C cable (150 cm | 59 in), Quick Start Guide

SKU: 10MAM9901
