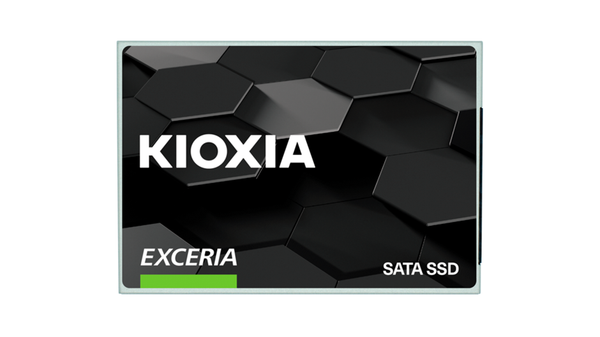

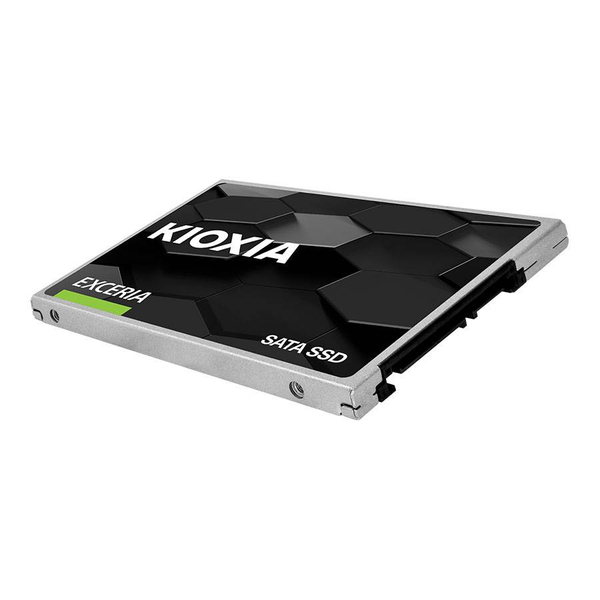

SSD Kioxia Exceria 480GB SATA III 2.5 inch LTC10Z480GG8

Features

• BiCS FLASH™
• Shock Resistant
• 2.5-inch, 7mm Height Form Factor
• SSD Utility Management Software

Instant Performance Upgrade

Up your productivity with the EXCERIA SATA SSD series and enjoy faster boot ups, file transfers, and system responsiveness. Say goodbye to hard disk drive lag and get a computing experience worthy of your time.

Performance Made Affordable

Upgrading to an SSD from a conventional HDD can feel like you've purchased an entirely new system. EXCERIA SATA SSD series balance price and performance so you have enough funds left over for other.

Improved for On-the-go

Compared to hard disk drives, EXCERIA SATA SSD series also offer improved durability and power consumption, which can translate into longer battery life to keep you up and running longer.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

EXCERIA SATA SSD Product Specifications

Capacity / dimensions

• Capacity

  240GB, 480GB, 960GB

• Interface

  Serial ATA (SATA) 6 Gbit/s

• Form Factor

  2.5-inch, 7mm height

• Flash Memory Type

  BiCS FLASH™ TLC

• Dimension (Max: LxWxH)

  100.45 x 70.10 x 7.20 mm

• Weight

  240GB: 45.5 g (typ.)
  480GB: 45.6 g (typ.)
  960GB: 45.7 g (typ.)

Performance

• Max Sequential Read Speed^*1

  555 MB/s

• Max Sequential Write Speed^*1

  540 MB/s

• Max Random Read Speed^*2

  240GB: 79,000 IOPS
  480GB: 82,000 IOPS
  960GB: 81,000 IOPS

• Max Random Write Speed^*2

  240GB: 87,000 IOPS
  480GB, 960GB: 88,000 IOPS

• Endurance: TBW (Total Bytes Written)^*3

  240GB: 60 TB
  480GB: 120 TB
  960GB: 240 TB

• MTTF

  1.5 million hours

Operating environment / protection performance

• Operating Temperature(Tc)

  0 ℃ to 65 ℃

• Storage Temperature

  -40 ℃ to 85 ℃

• Certification

  RoHS compliant^*5

• Shock Resistance

  14.7 km/s² {1,500 G} 0.5 ms half sine wave

• Vibration

  196 m/s² {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

• Supply Voltage

  5 V ± 5%

• Power Consumption (Active)

  240GB, 480GB: 1.6 W (typ.)
  960GB: 1.7 W (typ.)

• Power Consumption (Idle)

  100 mW (typ.)

• Power Consumption (DevSleep)

  10 mW max

Compatibility

• Serial ATA (SATA)

  ATA/ATAPI Command Set-3 (ACS-3) and Serial ATA revision 3.2 interface specifications supported

• Connector Type

  Standard SATA Power Connector

• Target Applications

  Client desktops and laptops

Others

• Services and Support

  Up to 3-year manufacturer's warranty^*4

• Performance Optimization

  TRIM, Idle Time Garbage Collection

Product Info

• 240GB

  PN: LTC10Z240GG8
  EAN: 4582563851849

• 480GB

  PN: LTC10Z480GG8
  EAN: 4582563851856

• 960GB

  PN: LTC10Z960GG8
  EAN: 4582563851863
