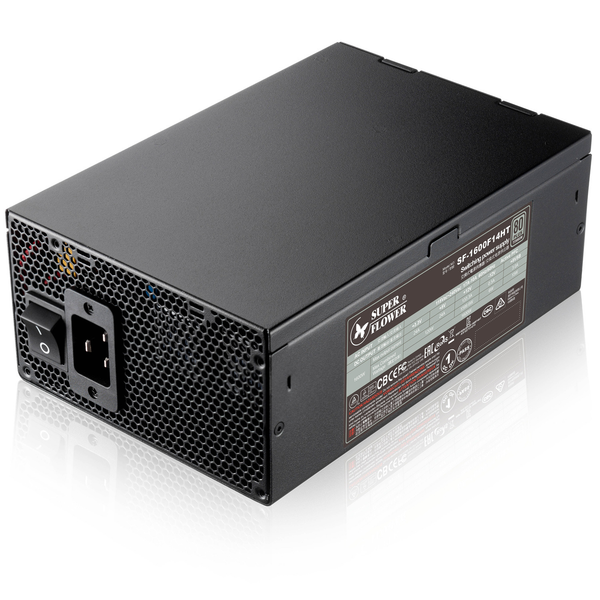

Nguồn máy tính SuperFlower Leadex 1600W 80 Plus Titanium SF-1600F14HT

Công suất: 1000W - 1600W
Chuẩn: 80 Plus Titanium ATX 3.1
Hiệu suất: 94%
Fan Size: 140mm Two-Ball Bearing Fan
Kích thước: 220mm(L) x 150mm(W) x 86mm(H)
Protection: OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP
Cáp: Fully Modular, Flat.
Tự động điều chỉnh dòng điện: 115V - 240V (Active PFC)
Tụ điện: 100% tụ Nhật Bản, sức chịu đựng tới 105°C
Max output: 133.3A - 1599.6W (@12V single rail)
Passed 50°C Hot Testing

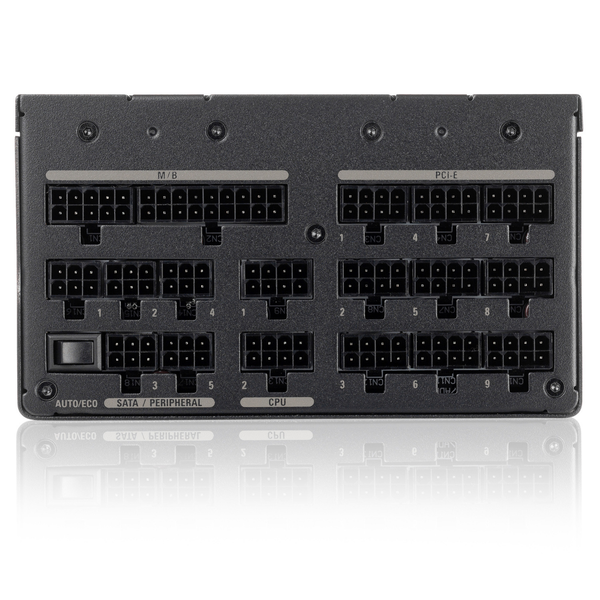

Cable Spec:
20+4pin: 1
(4+4pin): CPU 2
PCI-E 6+2Pin: 4
SLI (2 x PCI 6+2Pin): 5
12VHPWR: 2
4SATA: 3
3Molex: 1
Molex to FDD Adapter: 2

Description

Specification

LEADEX Titanium series PSU are 80+ Titanium certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

♦100% Full Modular Cabling Design For Easy Cable Management
♦80 PLUS® Titanium Certified, 90% 92% 94% 90% Efficiency At 10% 20% 50% 100% Rated Load
♦Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
♦Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System
♦Exclusive Patents
(Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)
1. ECO Intelligent Thermal Control System
2. Multi Patenet Pending Extreme High Efficiency Main Transformer

♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:

• Industrial grade server system.
• Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
• Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
