Công suất: 850W
Chuẩn: 80 Plus Gold
Hiệu suất: 90%

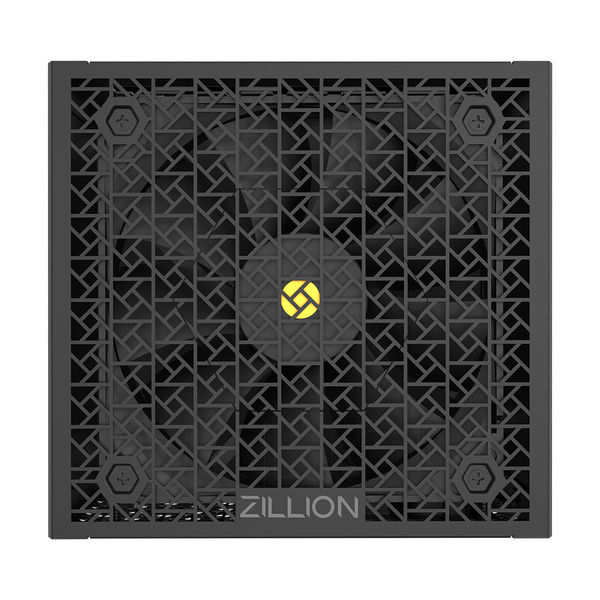

Fan Size: 120mm FDB Fan
Kích thước: 140mm(L) x 150mm(W) x 86mm(H)
Protection: OVP/ OCP / OTP/ SCP / OPP / NLP

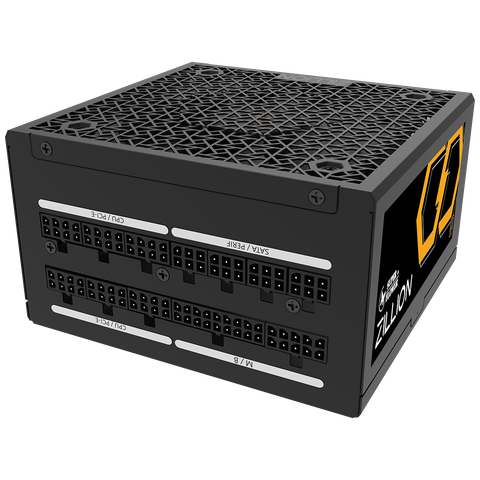

Cáp: Fully Modular
Tự động điều chỉnh dòng điện: 100V-240V (Active PFC)
Tụ điện: 100% tụ Đài Loan, sức chịu đựng tới 105°C
Max output: 70.5A - 846W (@12V single rail)
Cable Spec:
20+4Pin: 1 (600 mm)
8Pin & (4+4Pin) CPU: 2 (750mm+150mm)
PCI (PCI 6+2pin): 3 (700mm)
4SATA: 2 (550mm+150mm+150mm+150mm)
3Molex+FDD: 2 (550mm+150mm+150mm+150mm)
Molex to FDD: 1 (100 mm)
PCIe 16 Pin: 1 (700mm)
Passed 50°C Hot Testing
Description
★Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
★Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
★Fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion..
★OVP/ OCP / OTP/ SCP / OPP / NLP
★Compact 14cm size.
★ECO Fan control design.
★Pass 50°C Hot Testing.
★All Flat Cables.
★105°C Taiwanese Full Capacitor.
Specification

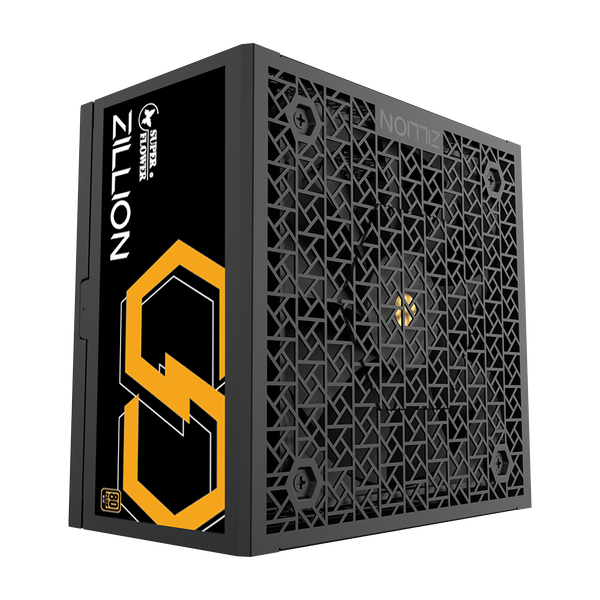

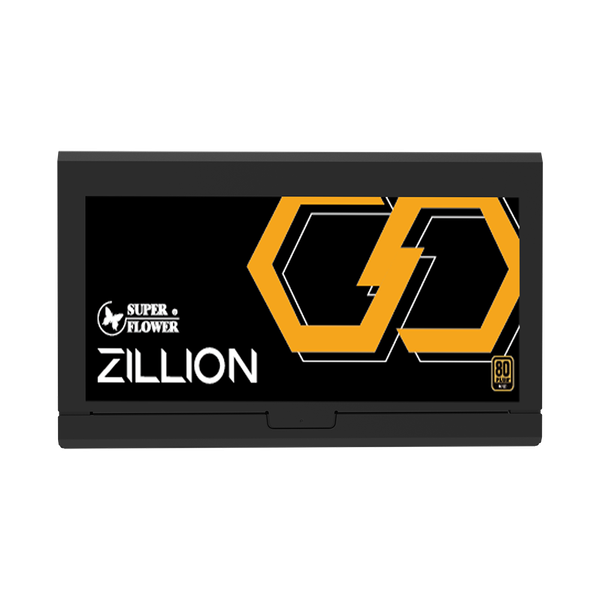

Model | Zillion FG Gold 850W |
Wattage | 850W |
Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) Efficiency |
Intel Power Design Guide | ATX 12V v3.1, EPS 12V v2.92 Specification. |

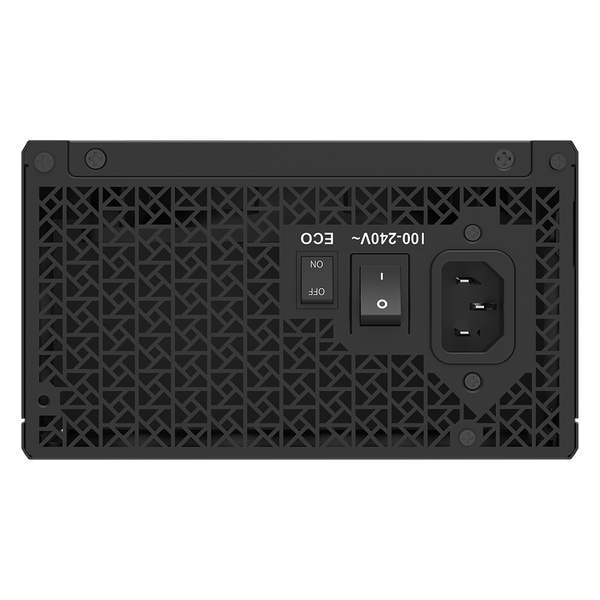

AC Input / Frequency | 100V-240V | 60 / 50Hz , Full Range APFC |
Fan Size | 120mm FDB Fan |
Dimension | 140mm(L) x 150mm(W) x 86mm(H) |
Protection | OVP/ OCP / OTP/ SCP / OPP / NLP |
Safety | CCC / FCC / cTÜVus / TÜV / CE / UKCA |
Weight | Around 1.5 KG |

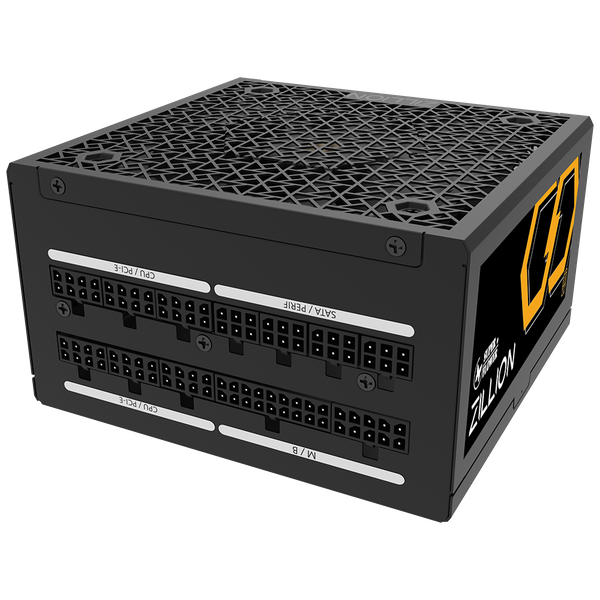

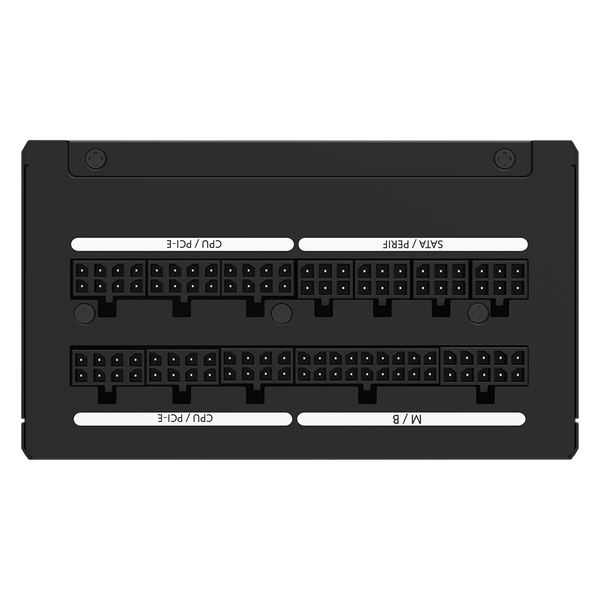

Cable Spec |
20+4Pin | Detachable | 1 (600 mm) |
PCI(6+2)Pin | 3 (700mm) |
8Pin (4+4Pin) | 2 (750mm+150mm) |
12+4 Pin PCIe | 1 (700mm) |
4SATA | 2 (550mm+150mm+150mm+150mm) |
3Molex+FDD | 2 (550mm+150mm+150mm+150mm) |
Molex to FDD | 1 (100 mm) |
model no.:SF-850Z12FG |
AC INPUT | 100-240V~ 10-5A 50-60Hz |
DC OUTPUT | +3.3V | +5V | +12V | -12V | 5VSB |
850W | Max Output Current | 20A | 20A | 70.5A | 0.3A | 2.5A |
Max Combined Wattage | 100W | 846W | 3.6W | 12.5W |
850W |
