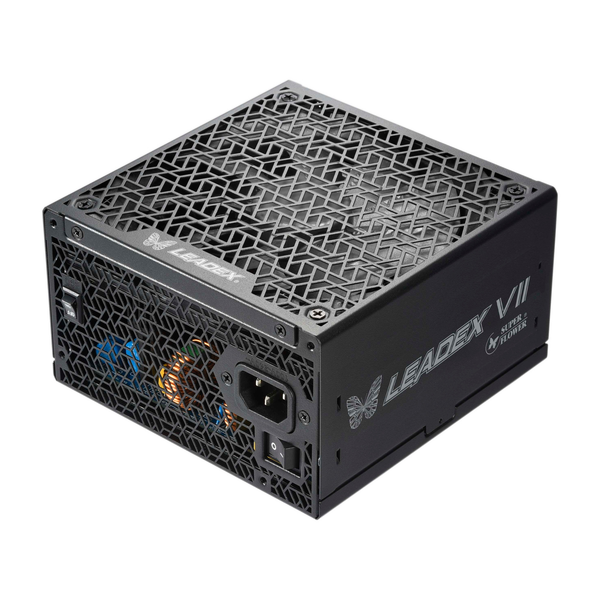

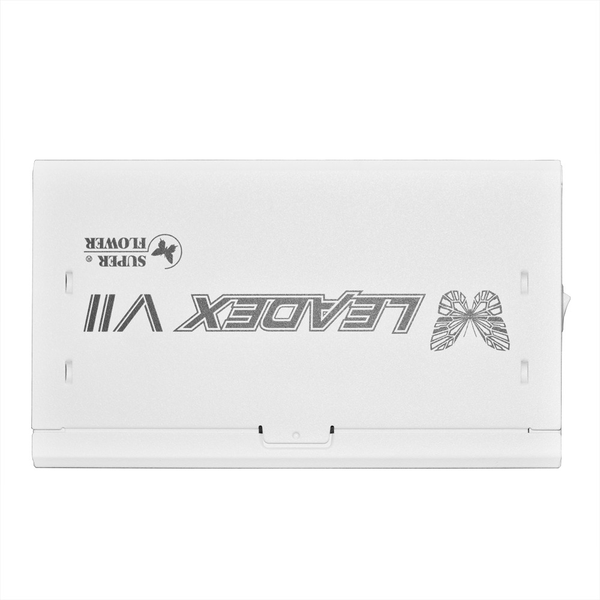

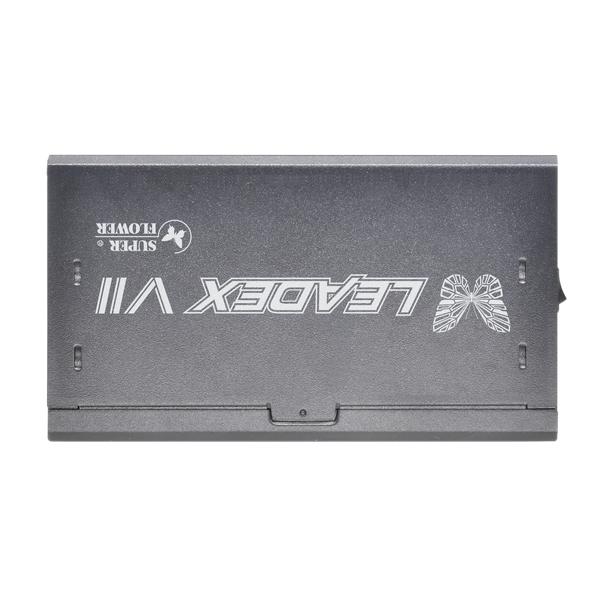

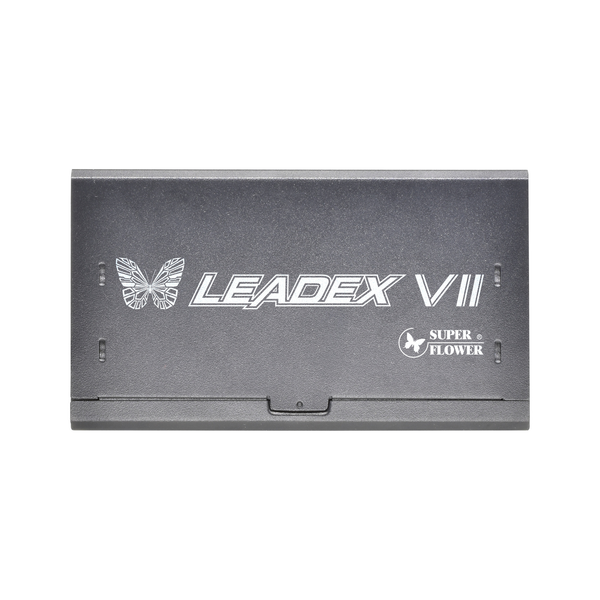

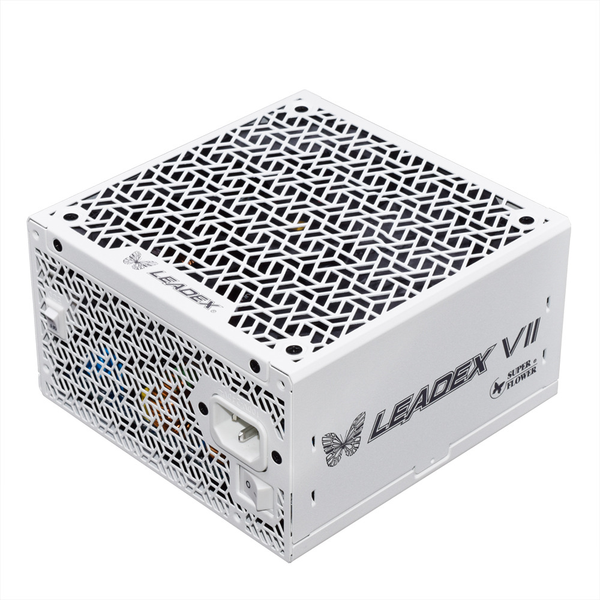

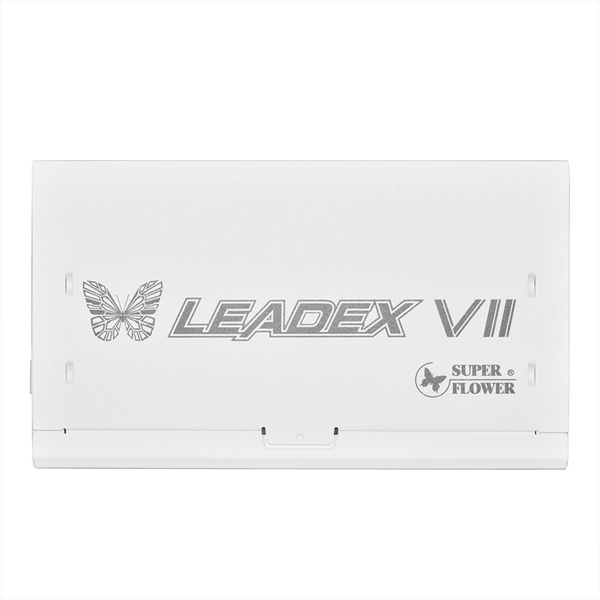

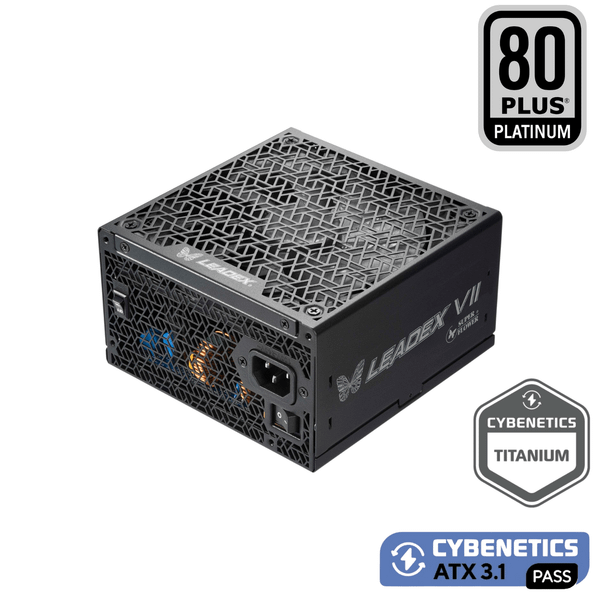

Nguồn máy tính Super Flower LEADEX VII Platinum PRO 1200W ATX 3.1 SF-1200F14XP
-
Hàng chính hãng -
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB,... -
Đổi trả trong 7 ngày -
Giao hàng tận nhà
- Bảo hành: 120 Tháng
- Bao gồm VAT
Thông số sản phẩm
Công suất: 1200w
Chuẩn: 80 Plus Platinum
Hiệu suất: 94%
Fan Size: 140mm Ultra Silent FDB Fan
Kích thước: 150mm(L) x 150mm(W) x 86mm(H)
Protection: OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP
Cáp: Fully Modular, dẹp, dẻo.
Tự động điều chỉnh dòng điện: 100V - 240V (Active PFC)
Tụ điện: 100% tụ Nhật Bản, sức chịu đựng tới 105°C.
★ ECO-design
1. Auto & ECO Fan Control
Dây cáp:
20+4 pin: 1
8(4+4) pin CPU: 2
PCI 6+2 Pin: 4
4 SATA: 3
4 MOLEX: 1
600w 16 Pin: 1
Bảo hành 120 Tháng
Description
Specification
Model No.: | SF- 1200F14XP | |
Transform Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency | |
Cybernetics Certified | Efficiency: Platinum / Efficiency 230V: Platinum | |
Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.1 | |
AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC | |

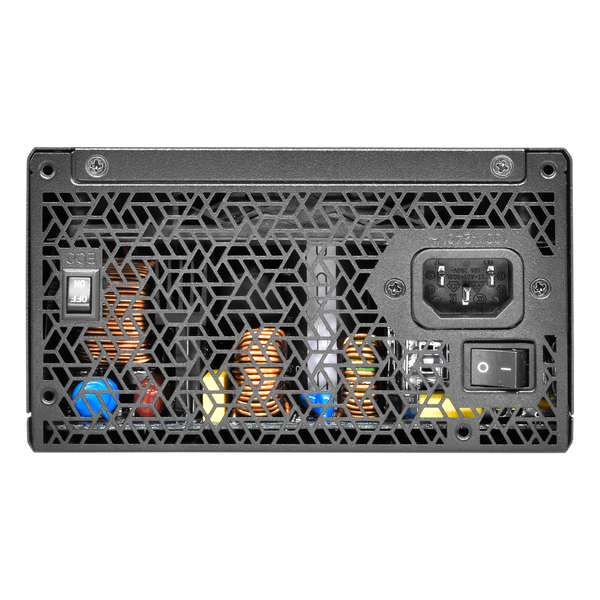

Fan Size | 14cm FDB FAN | |
Dimension | 150mm(L) x 150mm(W) x 86mm(H) | |
Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP | |
Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC | |
Temperature | Passed 50℃ Hot Testing | |
Cable Wires | ||
20+4 Pin | Detachable | One Cable (600mm) |
8(4+4) Pin CPU | Two Cables (700mm) | |
PCI 6+2 Pin | Four Cables (700mm) | |
4 SATA | Three Cables (550+130+130+130mm) | |
4 Molex | One Cable (550+150+150+150mm) | |
PCIe 12+4 Pin | One Cable (700mm) | |

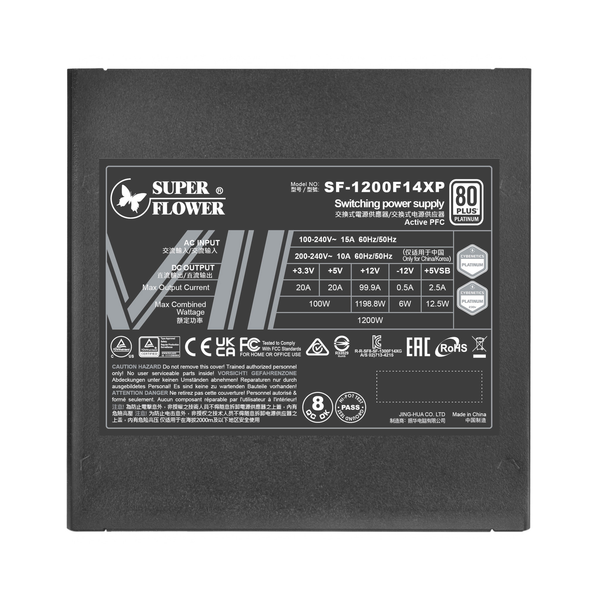

model no.: SF-1200F14XP | ||||||
AC INPUT | 100-240V~ 15A 60Hz/50Hz | |||||
200-240V~ 10A 60Hz/50Hz (Only for China/Korea) | ||||||
DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
1200W | Max Output Current | 20A | 20A | 99.9A | 0.5A | 2.5A |
Max Combined Wattage | 100W | 1198.8W | 6W | 12.5W | ||
1200W | ||||||
LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

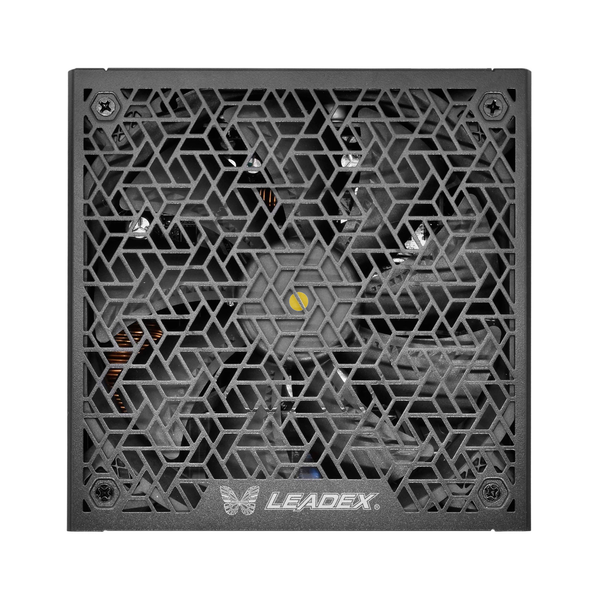

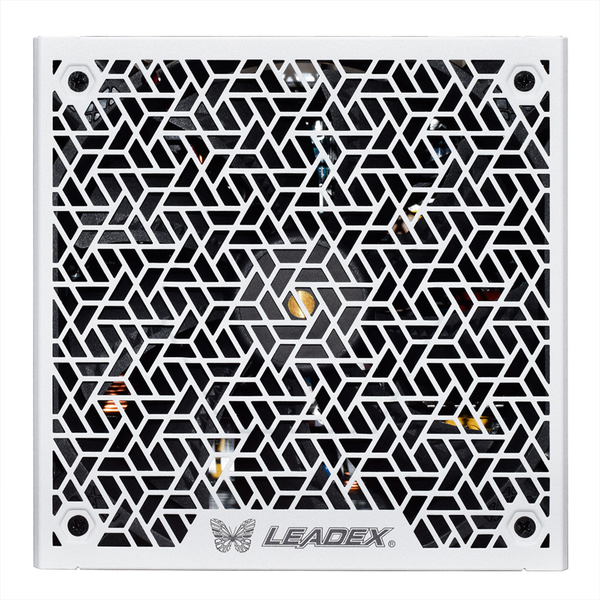

★ 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
★Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.

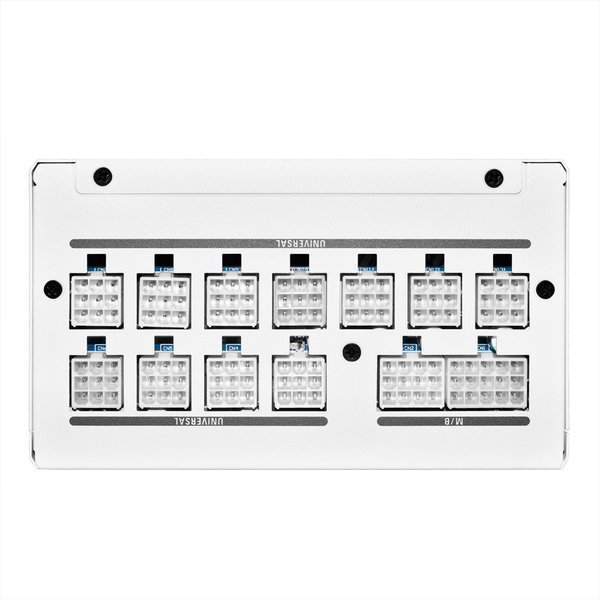

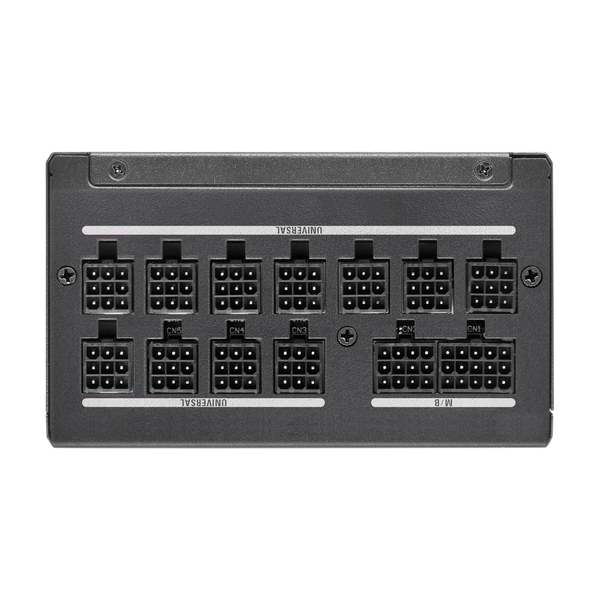

★ New patented Universal SUPER CONNECTOR(Patent No.: Taiwan D196948 D196949 ; China CN304998083S) Universal Super Connectors with a patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided.
★ New patented technology of Buckle (20+4) Pin connector(Patent No.: Taiwan M563575 ; China 7566010)
★ Innovative Design for gaming System & PSU protection
1. DC output +12V/+5V/+3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple
★ ECO-design
1. Auto & ECO Fan Control
2. High efficiency on all rails, including 5VSB
★ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
★ 80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
★ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
★Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
★ More than 2,000 times On/Off test
★ Lead-free Green Materials with RoHS / WEEE Compliance
★ Perfect For Professional & High Performance Gaming System
★ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.
