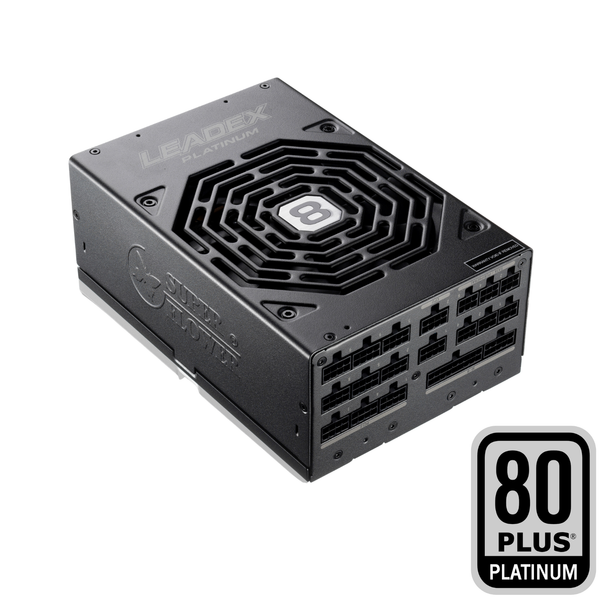

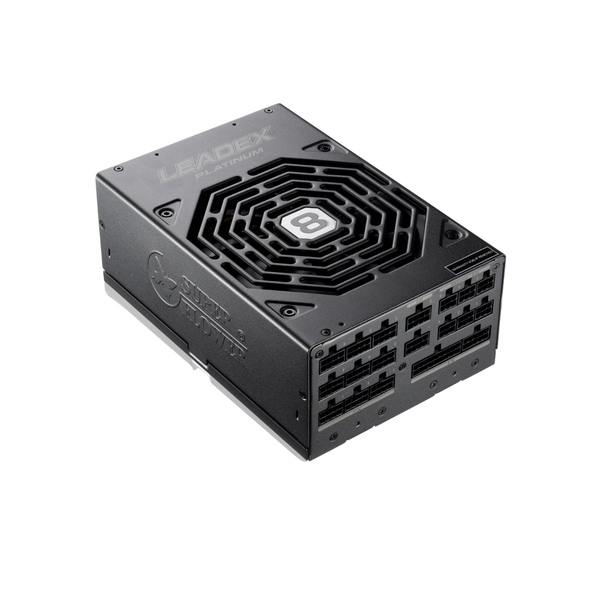

Nguồn máy tính Super Flower Leadex Platinum 2000W 80 Plus Platinum SF-2000F14HP

Công suất: 1600W - 2000W
Chuẩn: 80 Plus Platinum
Hiệu suất: 92%
Fan Size: 140mm Two-Ball Bearing Fan
Kích thước: 220mm(L) x 150mm(W) x 86mm(H)
Protection: OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP
Cáp: Fully Modular
Tự động điều chỉnh dòng điện: 115V - 240V (Active PFC)
Tụ điện: 100% tụ Nhật Bản, sức chịu đựng tới 105°C
Max output: 166.6A - 1999.2W (@12V single rail)
Passed 50°C Hot Testing

Description

Specification

LAEDEX Platinum series PSU are 80+ Platinum certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

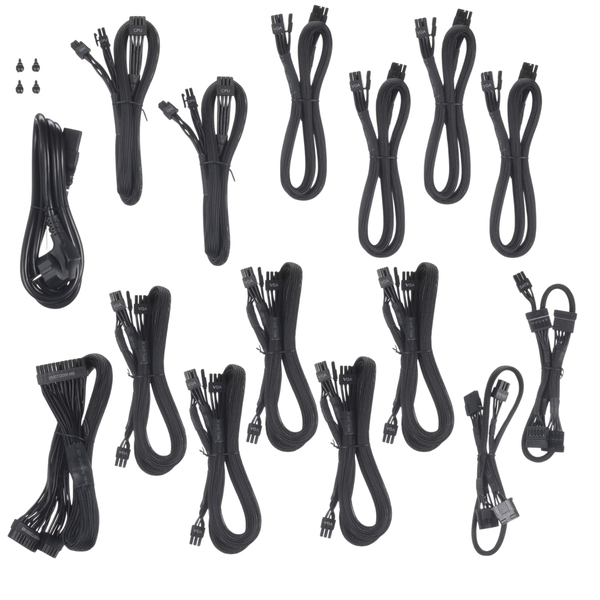

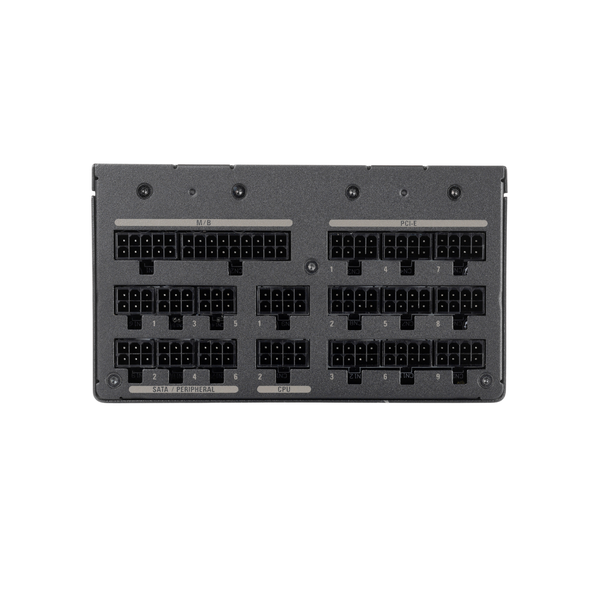

♦100% Full Modular Cabling Design For Easy Cable Management

♦80 PLUS® Platinum 230V EU Certified,92% 94% 90% Efficiency At 20% 50% 100% Rated Load.

♦Single Voltage Design 230V (Active PFC).

♦Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification

♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation

♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection  / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection.

♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards

♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card

♦More than 2,000 times On/Off test

♦Unleaded Green Materials with RoHS/WEEE Compliance

♦Perfect For Professional & High Performance Gaming System

♦Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design

♦Exclusive Patents

1. Dual Voltage Circuit with IntelligenceThermal Control System (Taiwan Patent NO.:381102 (China,U.S.A,Germany,Japan patent applied))
2. Multi Patenet Pending Extreme High Efficiency Main Transformer

Taiwan Invention Patent no: 103127942 (Patent Pending)

Taiwan Utility Model Patent no: 103214502 (Patent Pending)

China Invention Patent no: 201410414373.3 (Patent Pending)

China Utility Model Patent no: 201420474128.7 (Patent Pending)

Germany, United Kingdom, USA, Korea, Japan Patent Applied

♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:

• Industrial grade server system.
• Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
• Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
