Specifications for

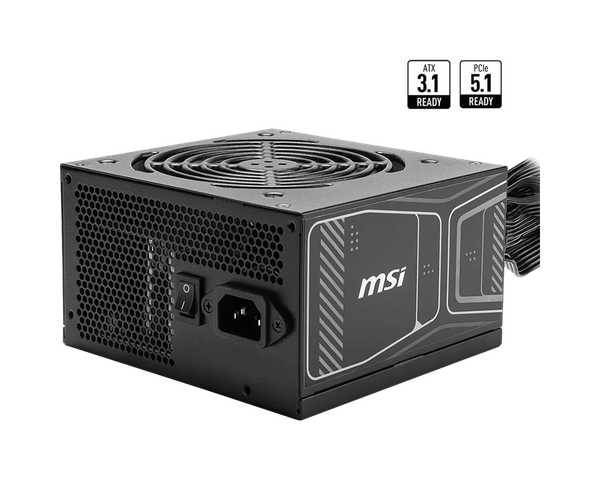

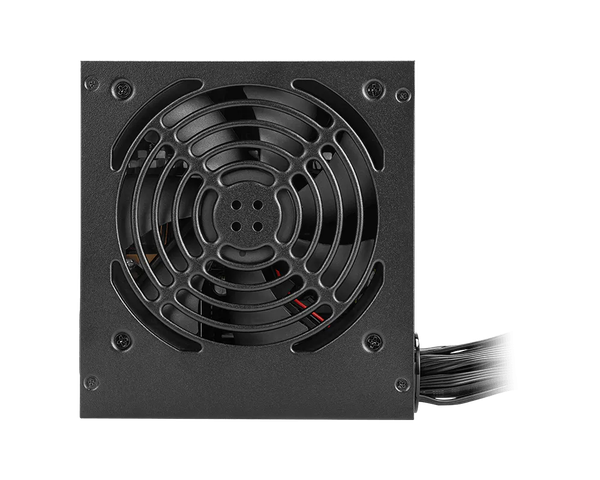

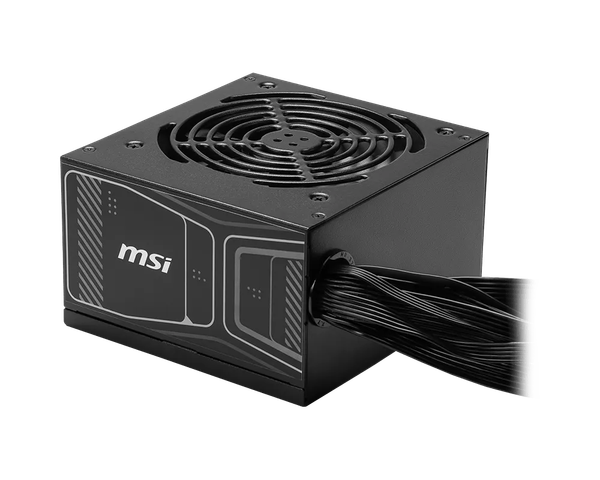

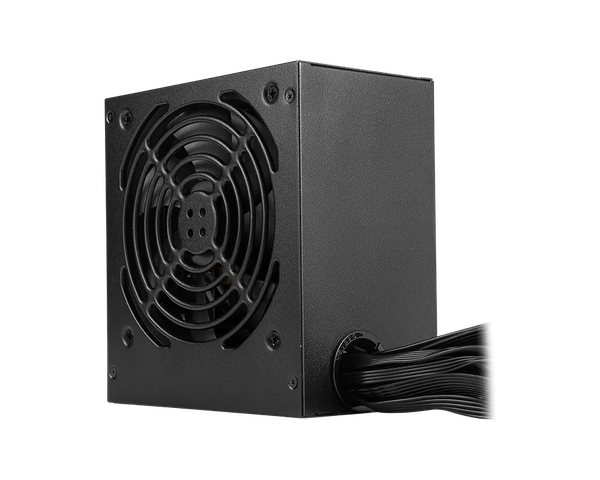

MAG A850GN PCIE5

Data sheet

Efficiency Rating 80 PLUS Gold (up to 90%)

Modular No (non modular)

Fan Size 120 mm

Fan Bearing Sleeve Bearing

Dimensions (DxWxH) 140 x 150 x 86 mm

PFC Type Active PFC

Input Voltage Range 100~240 VAC

Power Watt 850W

Power Excursion 1700W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range 47-63Hz

Protection OCP / OVP / OPP / OTP / SCP

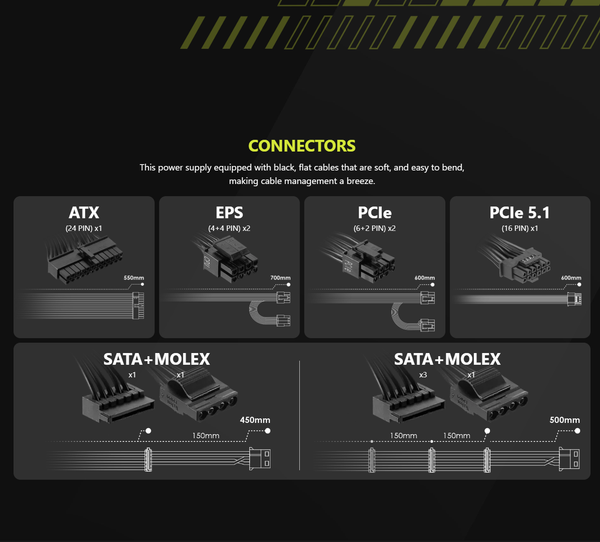

ATX (24 pin) 1

EPS (4+4 pin) 2

PCI-E 5.1 (16 pin) 1

PCI-E (6+2 pin) 2

SATA (15 pin) 4

PERIPHERAL (4 pin) 2
