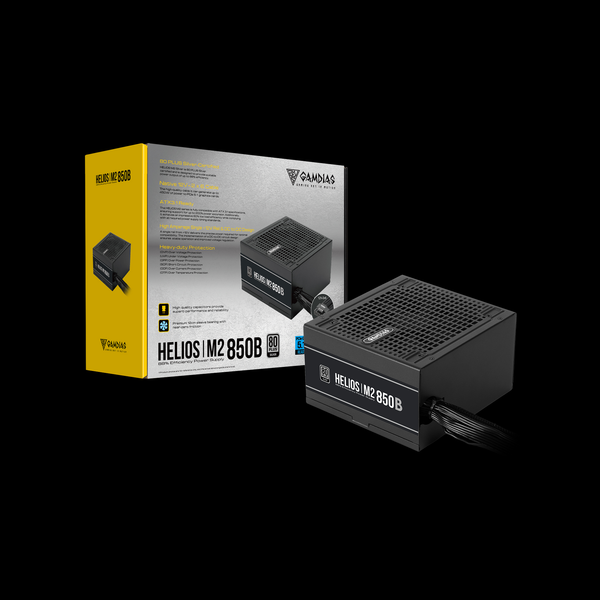

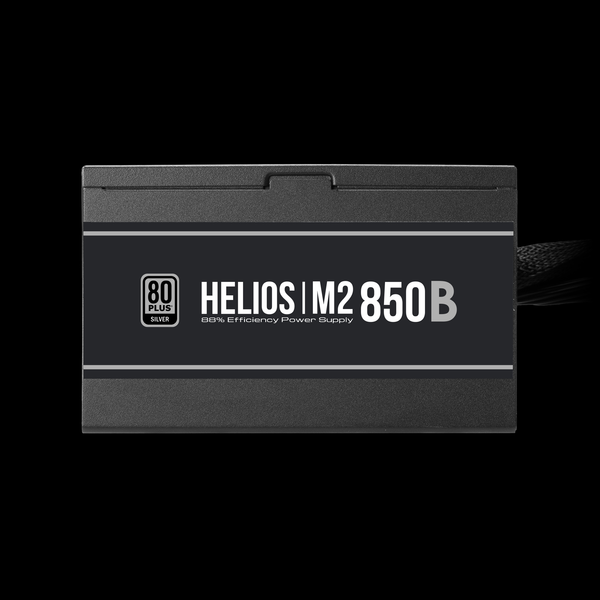

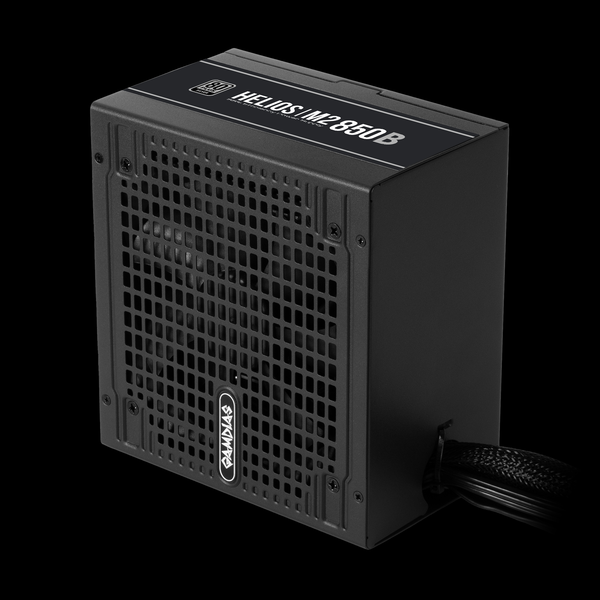

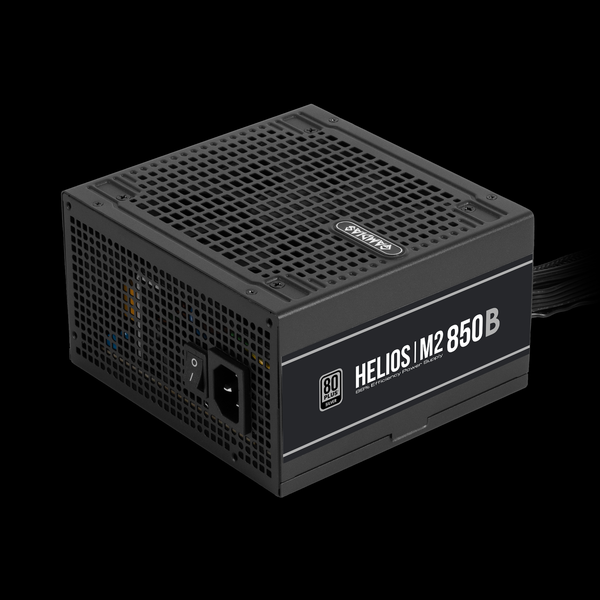

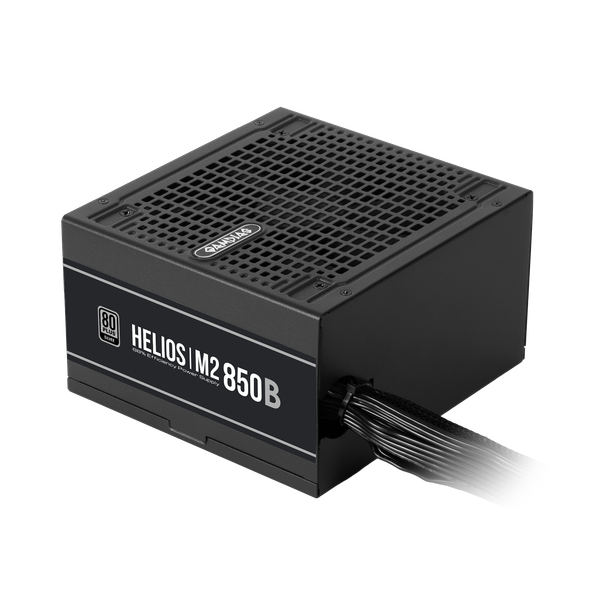

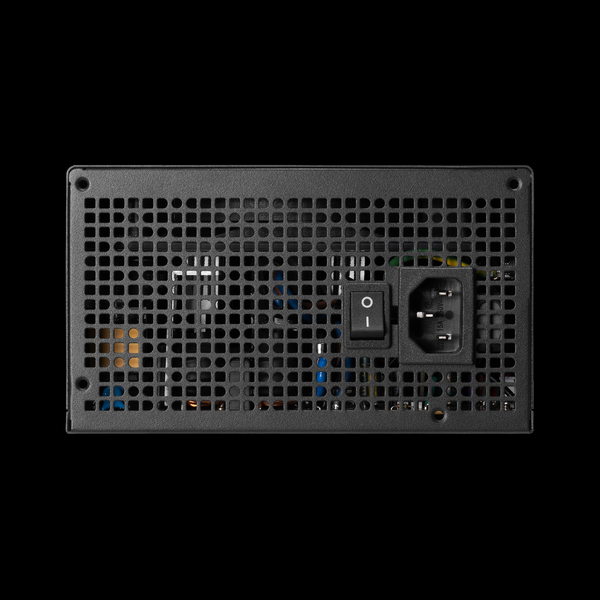

Nguồn máy tính Gamdias HELIOS M2-850B 850W

SPECIFICATIONS

Model HELIOS M2-850B

POWER

Type ATX12V v3.1

Efficiency Meet 80 PLUS Silver efficiency

Power Factor Correction APFC with PF value of 0.99

Support MB Sync No

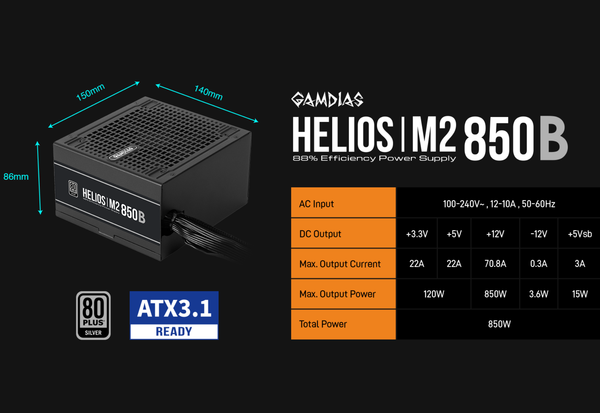

Dimension (L x W x H)140 x 150 x 86 mm

Support C6/C7 power state Yes

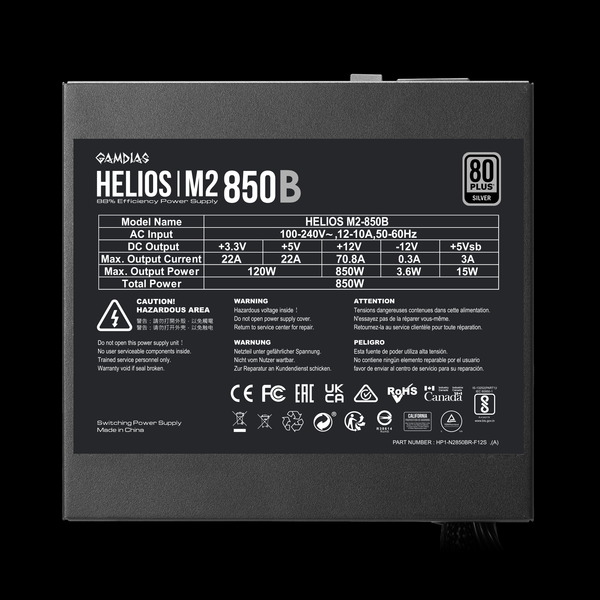

AC Input 100-240V~ / 10A /  50-50-60Hz

DC Output +3.3V / +5V / +12V / -12V / +5Vsb

Max. Output Current 22A / 22A / 70.8A / 0.3A / 3A

Max. Output Power 120W / 850W / 3.6W / 15W

Total Power 850W

Peak Power 1105W

Protection OVP / UVP /  OPP / SCP / OCP / OTP

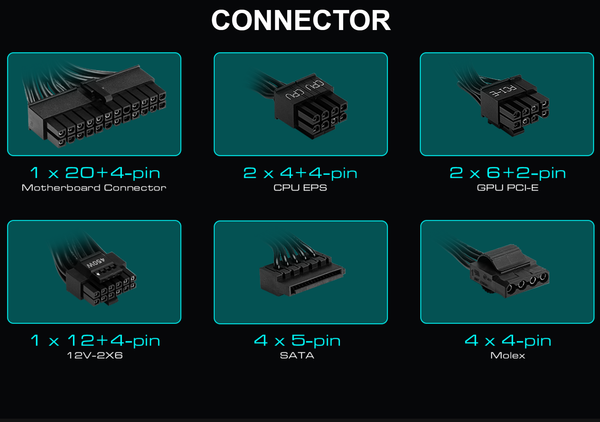

Main Power 1 (20+4 Pin)

CPU 2 (4+4 Pin)

PCI-E 2 (6+2 Pin)

12V 2x6 1 (12+4 Pin)

SATA 4 (5 Pin)

Molex 4 (4 Pin)

Modular Non Modular

Flat Cable Yes

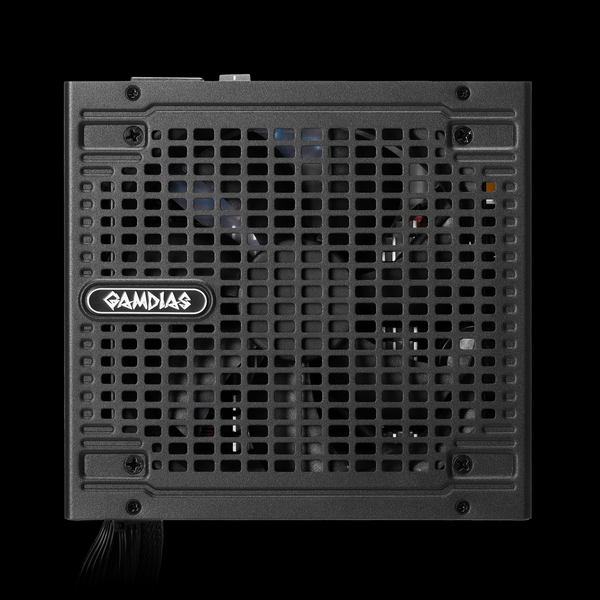

Cooling System 120mm long-lifespan sleeve bearing

Silent Mode No

DC to DC Yes

Environmental Compliance Erp Lot 6
