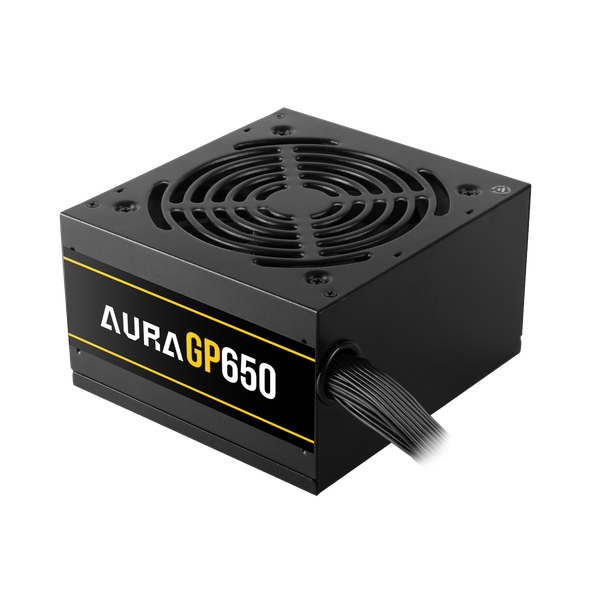

AURA GP650

650W EFFICIENT POWER SUPPLY

• 650W Power Supply

• 120mm Hydraulic Bearing Fan

• 1x 24-pin Main Connecter

• Compatible with ATX12V v2.4

SPECIFICATIONS

Model

AURA GP650

POWER

Type ATX12V v2.4

Efficiency Close to 80 PLUS White efficiency

Dimensions (LxWxH) 140 x 150 x 86 mm

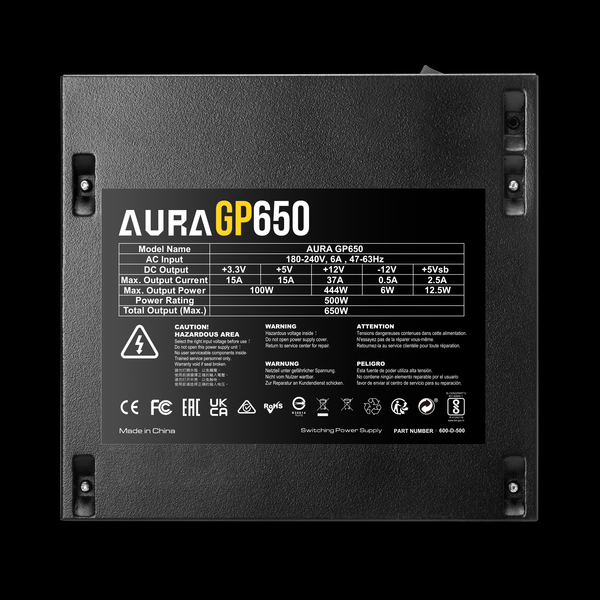

AC Input 180-240V / 6A / 47-63Hz

DC Output +3.3V / +5V / +12V / -12V / +5Vsb

Max. Output Current 15A / 15A / 37A / 0.5A / 2.5A

Max. Output Power 100W / 444W / 6W / 12.5W

Power Rating 500W

Total Output (Max.) 650W

Protection OVP / UVP / OPP / OCP / SCP

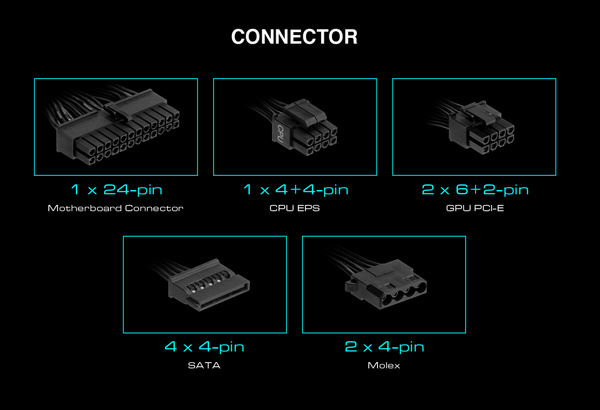

Main Power 1 (24 Pin)

CPU 1 (4+4 Pin)

PCI-E 2 (6+2 Pin)

SATA 4 (4 Pin)

Molex 2 (4 Pin)

Modular Non Modular

Flat Cable Yes

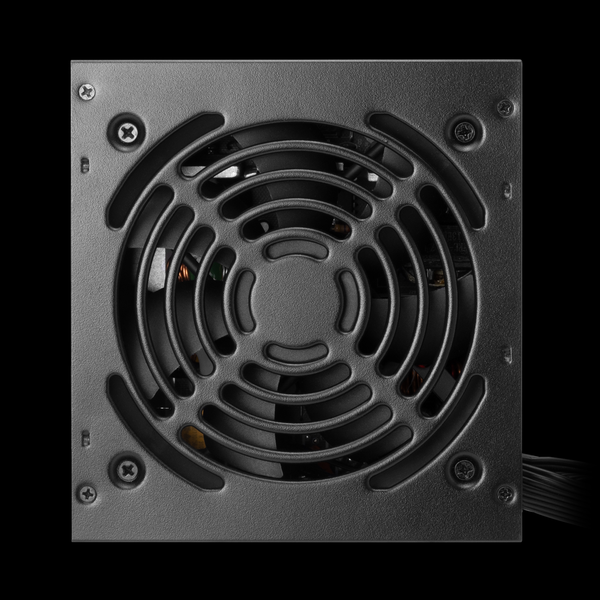

Cooling System 120mm hydraulic bearing fan
