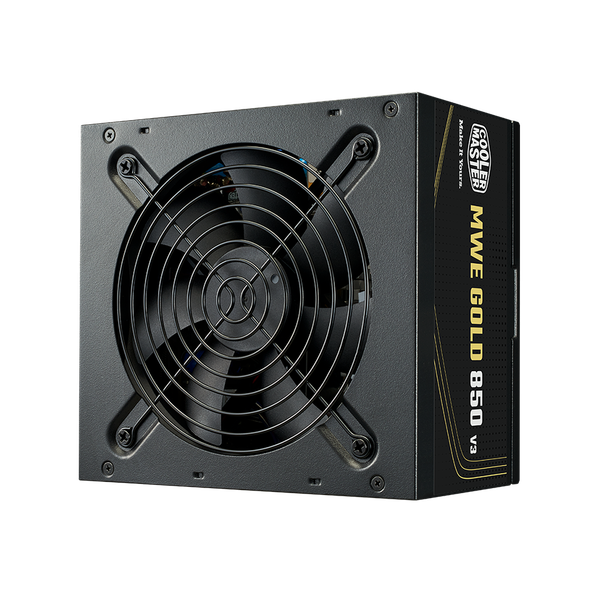

Nguồn máy tính Cooler Master MWE Gold 850 V3 ATX 3.1 Non Modular

ModelMPE-8506-ACAG-G**, MPE-7506-ACAG-G**, MPE-6502-ACAAG-3G**, MPE-5502-ACAAG-3G**

ATX Version ATX 12V Ver. 3.1

PFC Active PFC

Input Voltage100-240V

Input Current 10-6A (850/750W), 10-5A (650W), 8-4A (550W)

Input Frequency 50-60Hz

Dimensions (L x W x H) 140 x 150 x 86 mm

Fan Size 120mm

Fan Bearing HDB

Fan Speed 2400 RPM (850/750/650W), 1800 RPM (550W)

Efficiency ≥90% @ Typical Load

80 PLUS Rating 80 PLUS Gold

ErP 2014 Lot 3 Yes

Operating Temperature 0-40°C

Power Good Signal 100 - 150 ms

Hold Up Time ≥16ms at 80% Load

MTBF >100,000 Hours (850/750W), >100,000 Hours @ 25℃ambient (650/550W)

Protections UVP / OVP / OPP / OTP / SCP / OCP

Regulatoryc TUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

ATX 24 Pin Connectors 1

EPS 8 Pin / 4+4 Pin Connectors 2

PCI-e 6+2 Pin Connectors 4 (850/750/650W), 2 (550W)

SATA Connectors 6

Peripheral 4 Pin Connectors 3

12V-2x6 (12+4 Pin) Connectors 1 (850/750W)

Series MWE Gold Series

Modular Non Modular

Form Factor ATX

80 Plus Efficiency Gold
