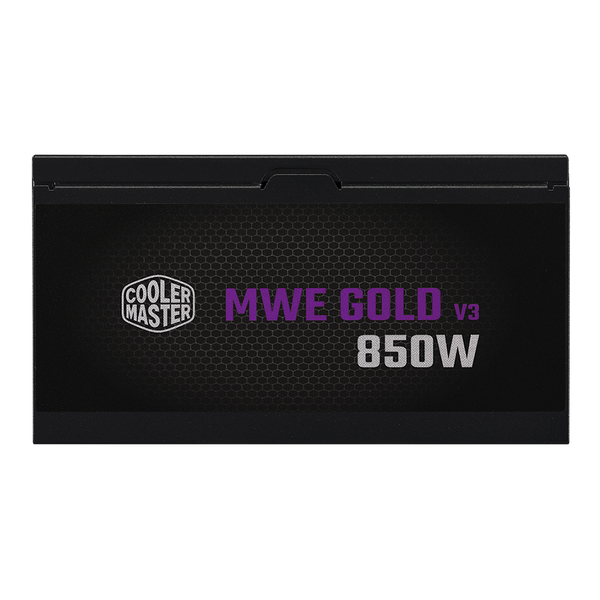

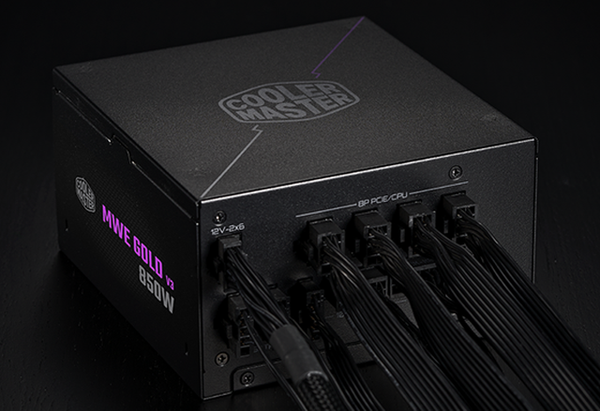

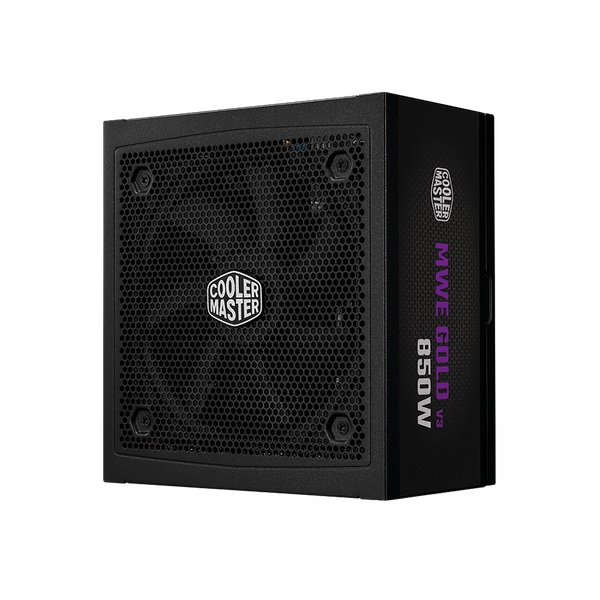

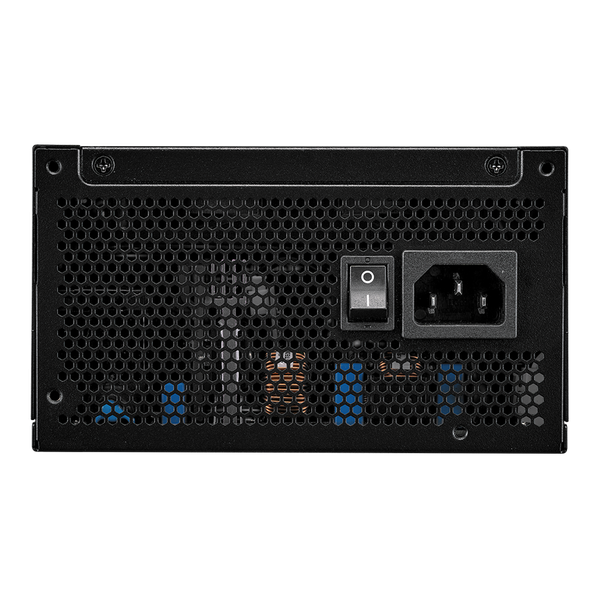

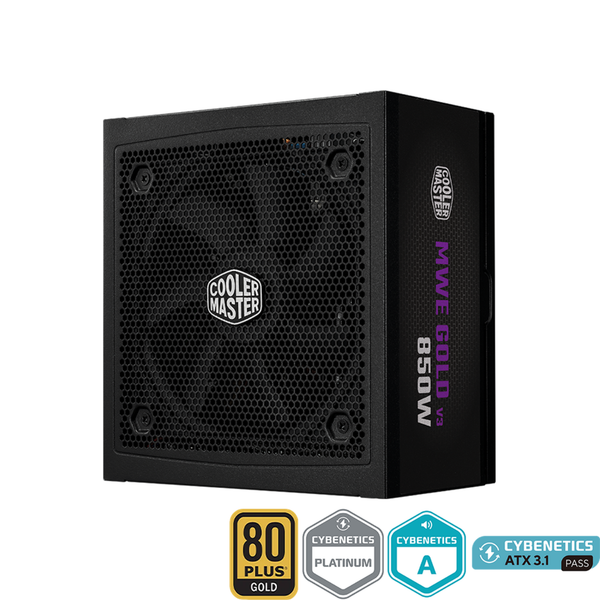

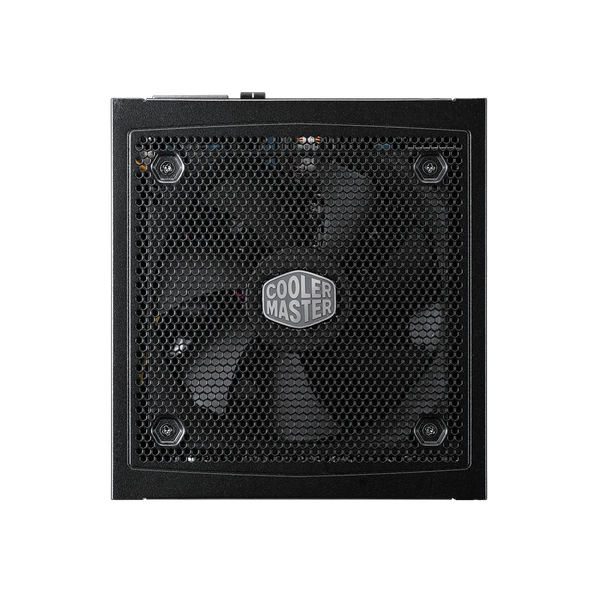

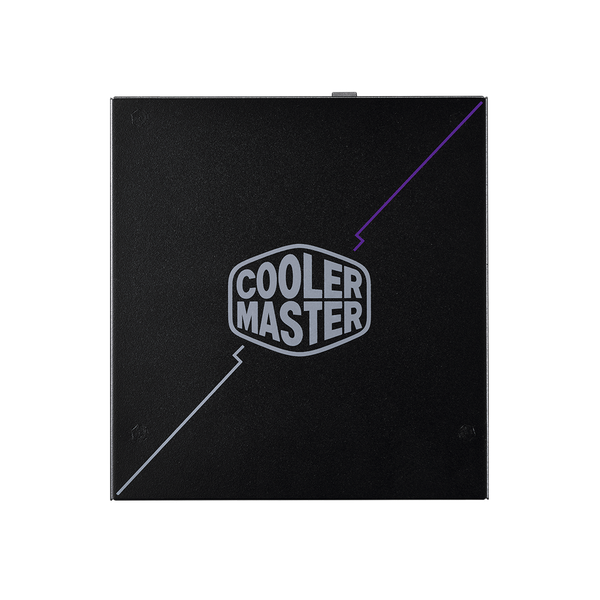

Nguồn máy tính Cooler Master MWE Gold 850 V3 ATX 3.1 Fully Modular

Model

MPX-8503-AFAG-2***

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

100-240V

Input Current

10-5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

2500 RPM

Efficiency

≥90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-40°C

Power Good Signal

100 - 150 ms

Hold Up Time

≥16ms at 80% Load

MTBF

>100,000 Hours

Protections

OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

Regulatory

cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

SATA & Peripheral 4 Pin Connectors

6 (SATA) / 2 (Peripheral)

PCI-e 6+2 Pin Connectors

4

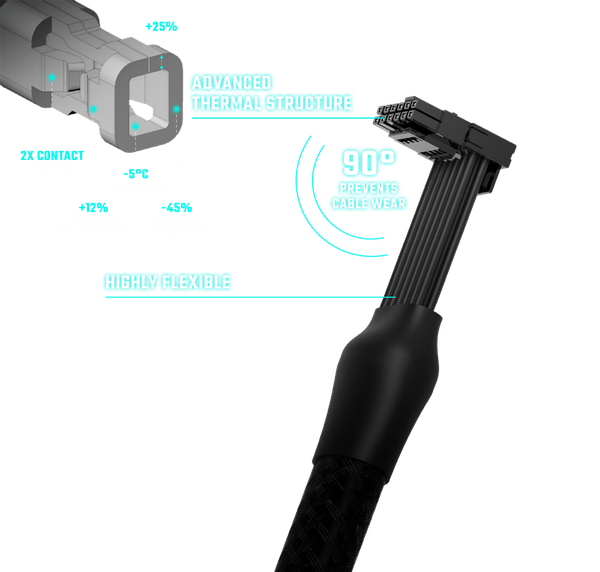

12V-2x6 Connectors

1

Series

MWE Gold Series

Category

Above 750W

Modular

Fully Modular

80 Plus Efficiency

Gold

Form Factor

ATX

Watts

850W
