Elite Gold 1200

• Supports ATX 3.1 and PCIe Gen 5.1 standards

• Ideal for RTX 50 GPUs

• Stable performance under high loads at up to 40°C

• Quiet, long-life FDB fan cooling

• 1200W output with 80 Plus Gold-certified efficiency

• Fully modular embossed cable design

• Reliable 5-year warranty

Product Name ELITE GOLD 1200

Model MPW-C001-AFAG

ATX Version ATX 12V Ver. 3.1

PFC Active PFC

Input Voltage 100-240V

Input Current 7.5 ~ 15A

Input Frequency 50-60Hz

Dimensions (L x W x H) 150 x 150 x 86 mm

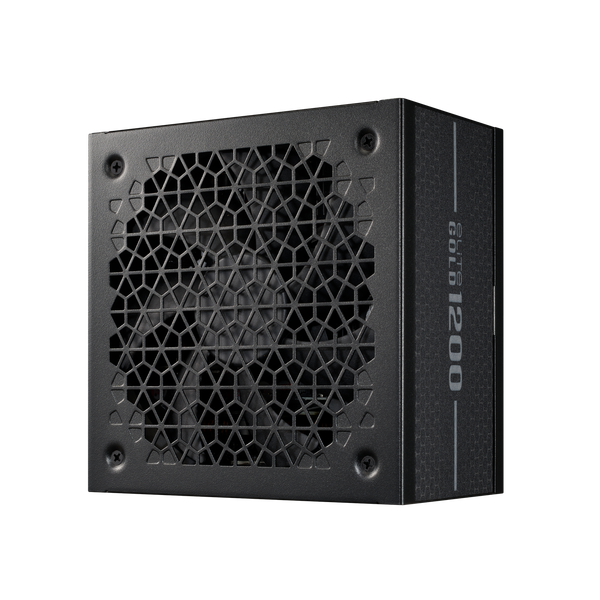

Fan Size 135mm

Fan Bearing FDB

Efficiency ≥90% @ Typical Load

80 PLUS Rating 80 PLUS Gold

ErP 2014 Lot 3 Yes

Operating Temperature 0-40°C

Power Good Signal 100 - 150 ms

Hold Up Time ≥16ms at 80% Load

MTBF >100,000 hours​ @ 25℃ ambient

Protections UVP / OVP / OPP / OTP / SCP

Regulatoryc TUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

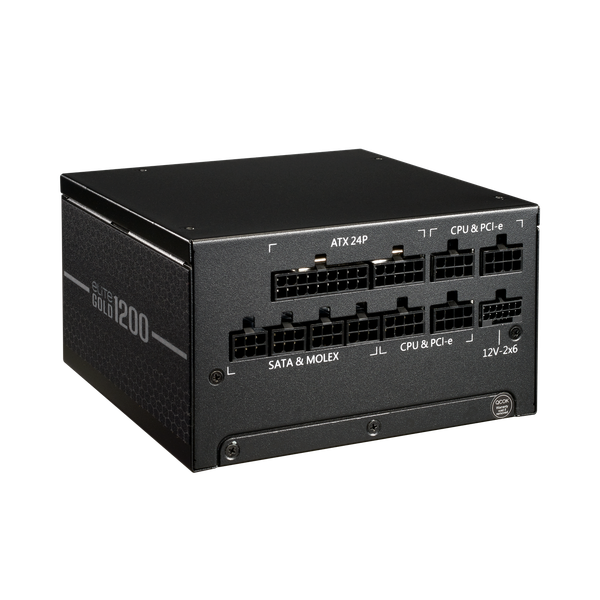

ATX 24 Pin Connectors x1 = 1 (600mm)

EPS 4+4 Pin Connectors x2 = 2 (700mm)

SATA Connectors x9 = 3 (500+100+100mm)

Peripheral 4 Pin Connectors x3 = 1 (500+100+100mm)

PCI-e 6+2 Pin Connectors x6 = 3 (550+120mm)

12+4 Pin Connectors x1 = 1 (600mm)

Series Elite Series

Form Factor ATX

Watts 1200W

Modular Fully Modular

80 Plus Efficiency Gold
