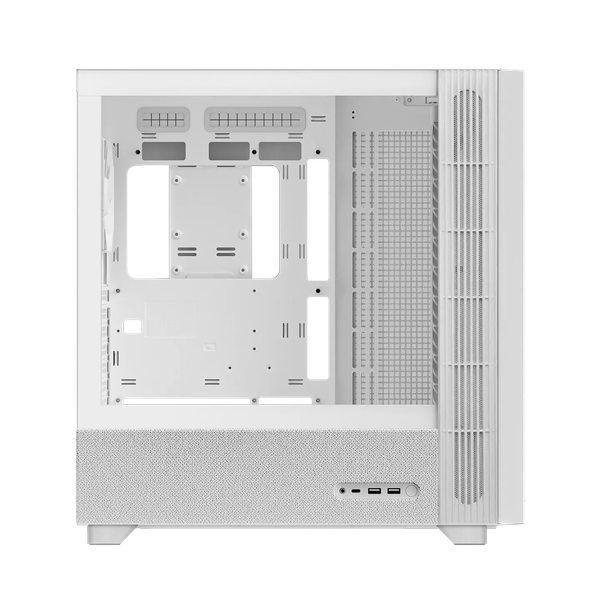

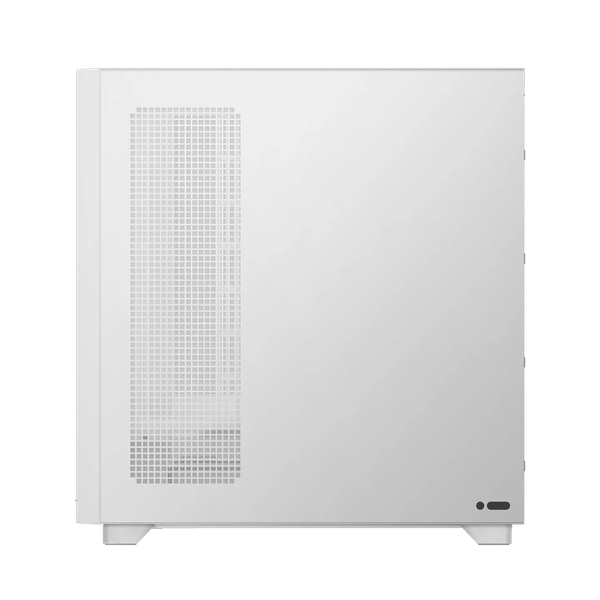

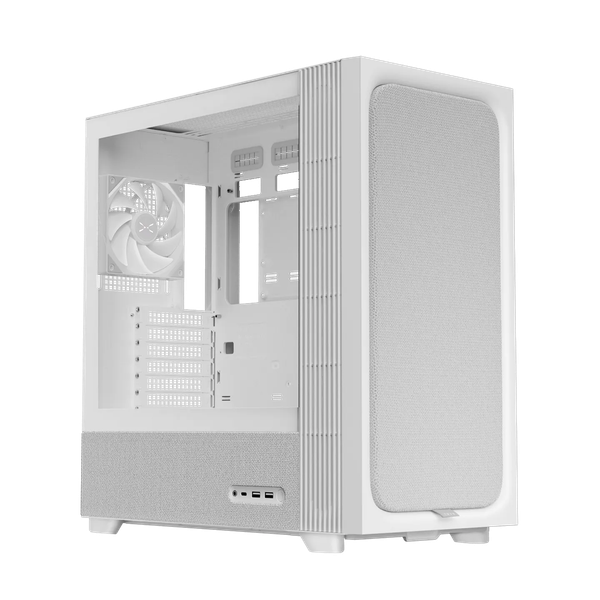

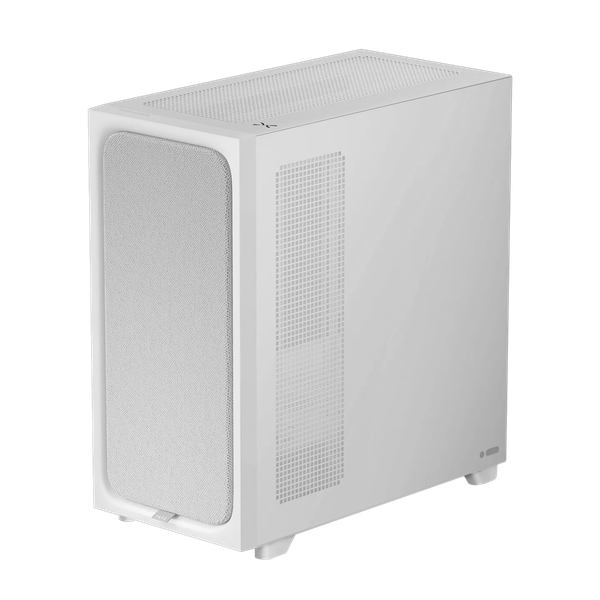

Case TRYX FLOVA F50 Mid-Tower ATX

Specifications

Appearance

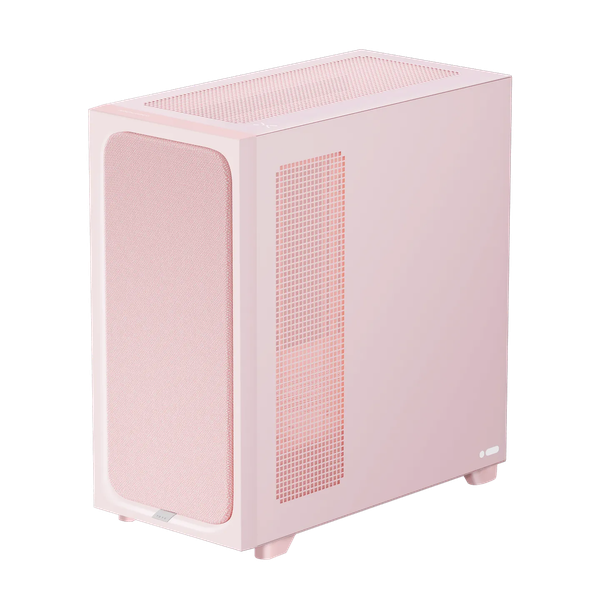

ColorBlack / White / Pink

Dimensions481 mm(D) x 240 mm(w) x 501 mm(H) / 58L

MaterialsSteel, TG, Plastic, Fabric

Compatibility

Motherboard CompatibilitySupport Motherboard Size: ATX / Micro-ATX / Mini-ITX Back Connect Motherboard Support: ATX（BTF / Project Zero / Project Stealth）

PCI-e Expansion Slots7

Expansion Drive Support4 x 2.5”SSD or 4 x 3.5"HDD

I/O Ports2 x USB-A 3.2 Gen 1, USB-C 3.2 Gen 2 x 2, Audio / Mic jack x 1, Power Button

Fan SupportTop: 120 mm x 3 / 140 mm x 2 Side: 120 mm x 2 / 140mm x 2 Front: 120 mm x 3 (with pre-installed Cross Flow Fan mounted)， 140 / 160 / 180 / 200 mm x 2 (requires removal of Cross Flow Fan) Bottom: 120 mm x 2 Rear: 120 mm x 1

Radiator SupportTop / Front: up to 280 mm / 360 mm Rear: 120 mm Side: up to 240 mm / 280 mm

GPU Clearance≤420 mm, ≤360 mm With Pre-installed Cross Flow Fan

CPU Cooling Clearance≤170 mm

PSU SupportATX, Length 200 mm

Layout

Cable Management Space40 mm

Dust FiltersTop, Bottom, Front, Side

Pre-installed FansTRYX Cross Flow Fan, 1 x TRYX ROTA 120 Fan

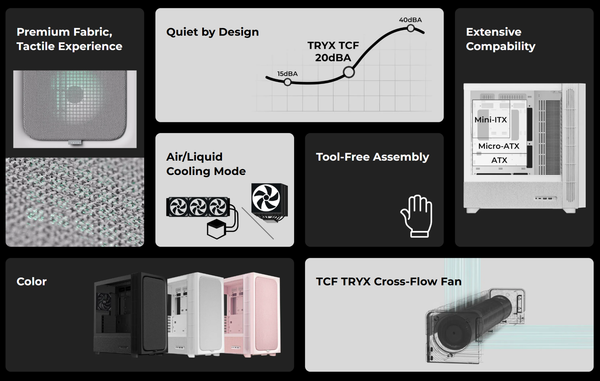

Key Features

Premium Fabric, Tactile Experience

Quiet by Design

Extensive Compability

Air/Liquid Cooling Mode

Tool-Free Assembly

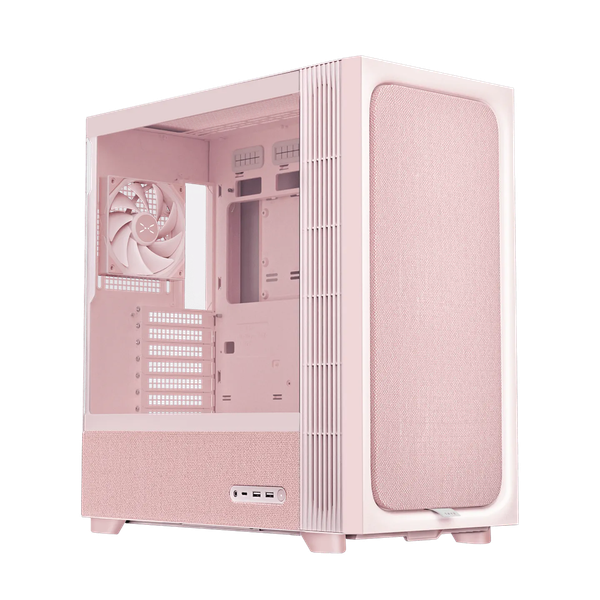

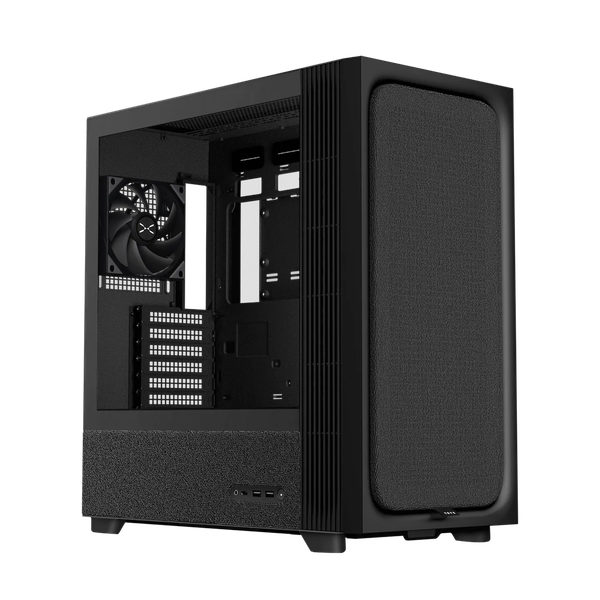

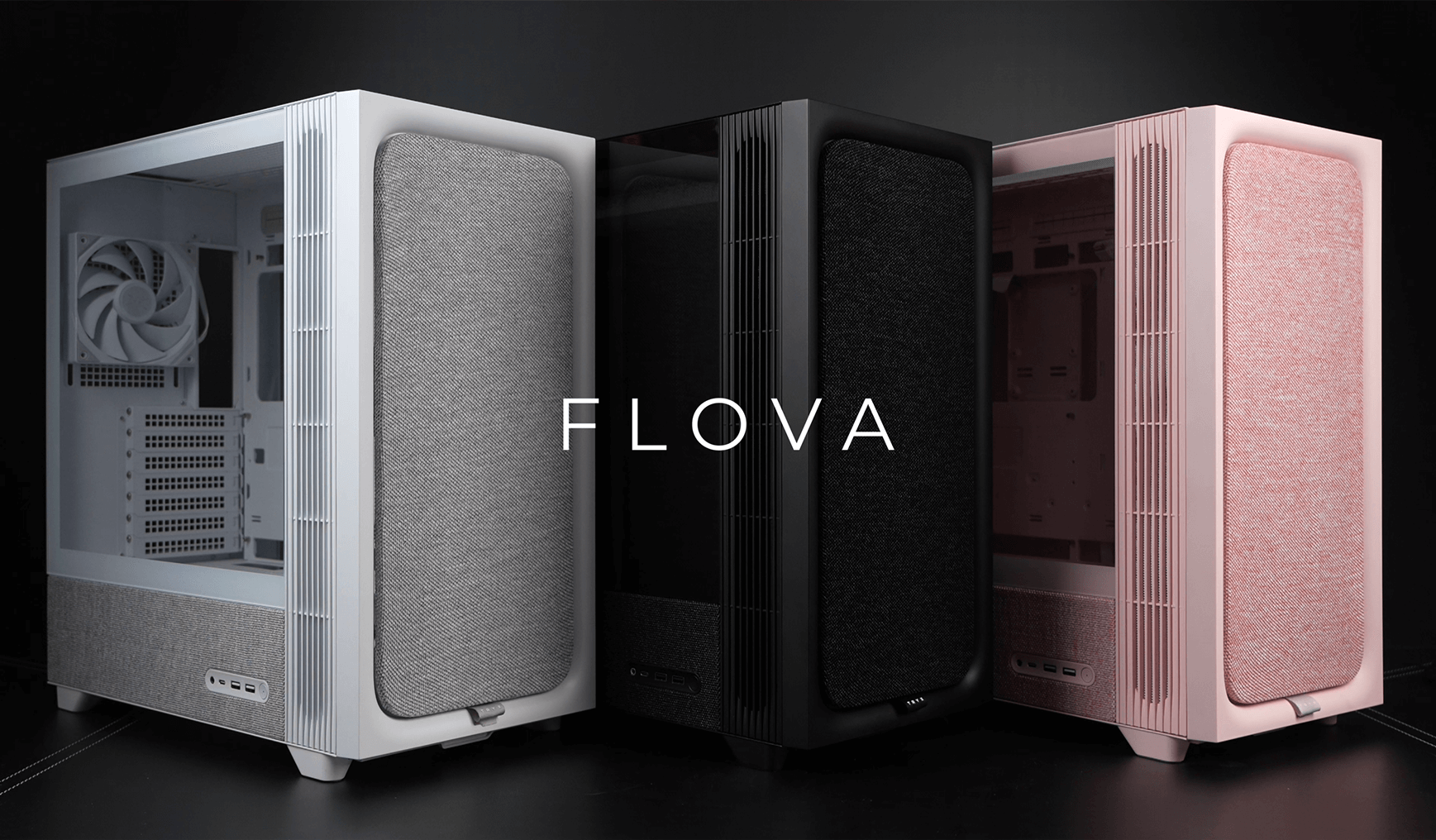

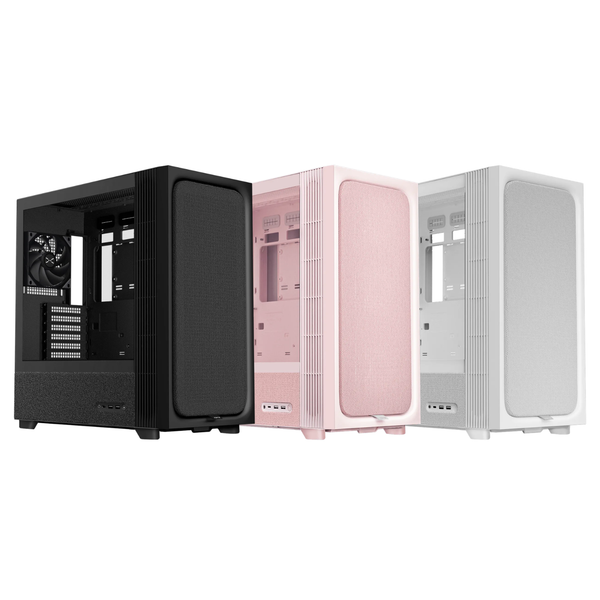

Color

TCF TRYX Cross-Flow Fan

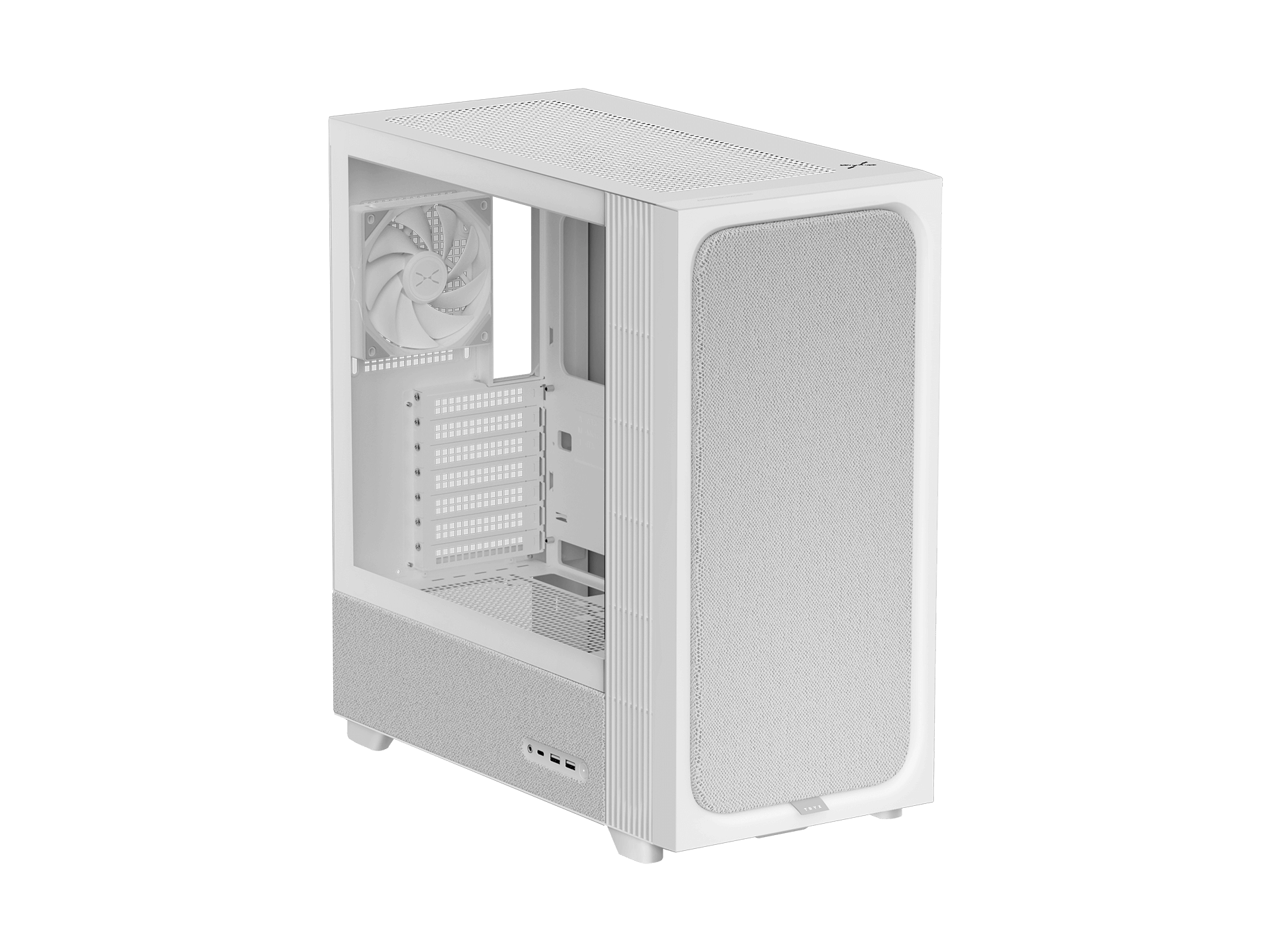

Studio Grade Material

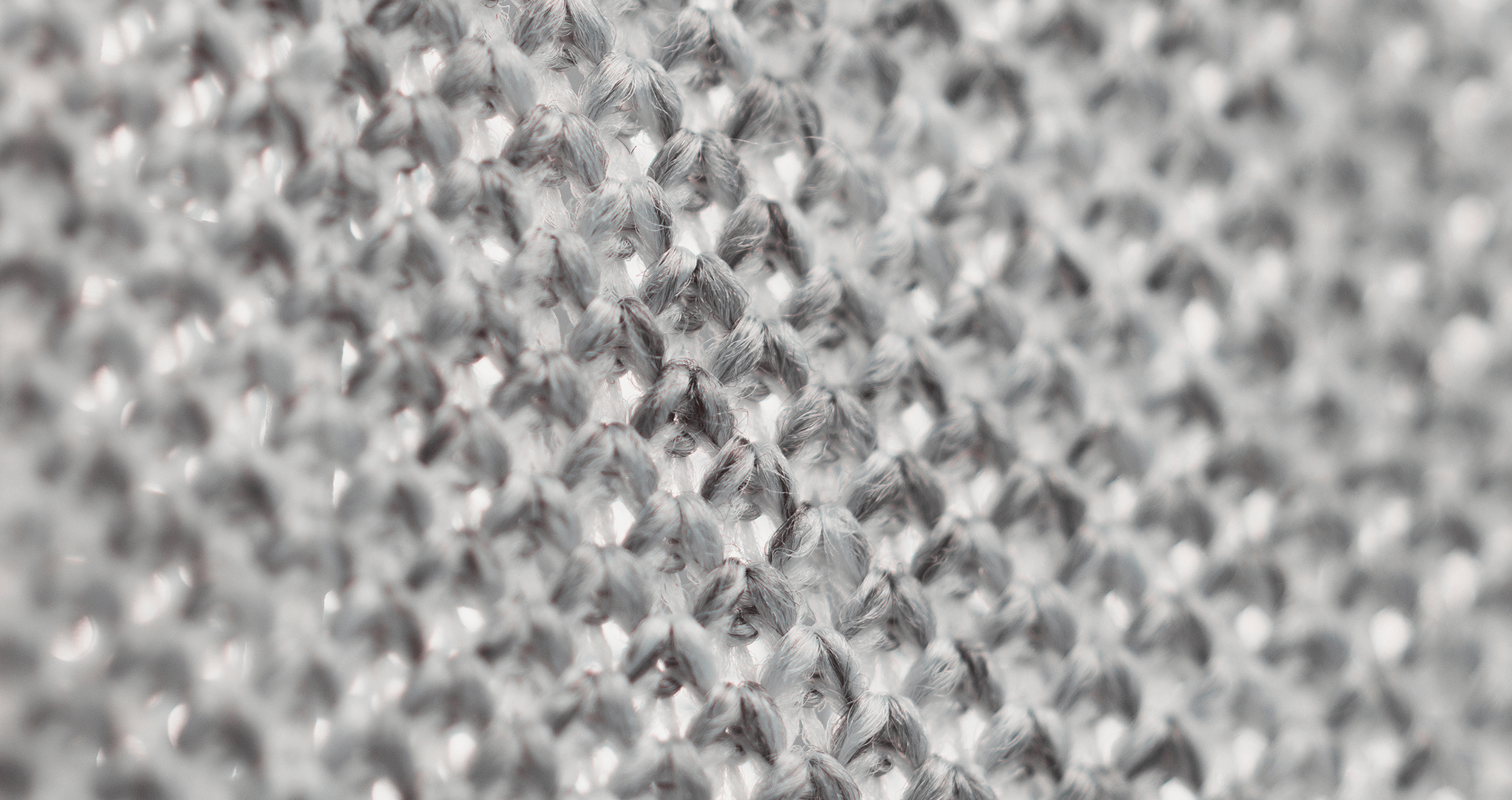

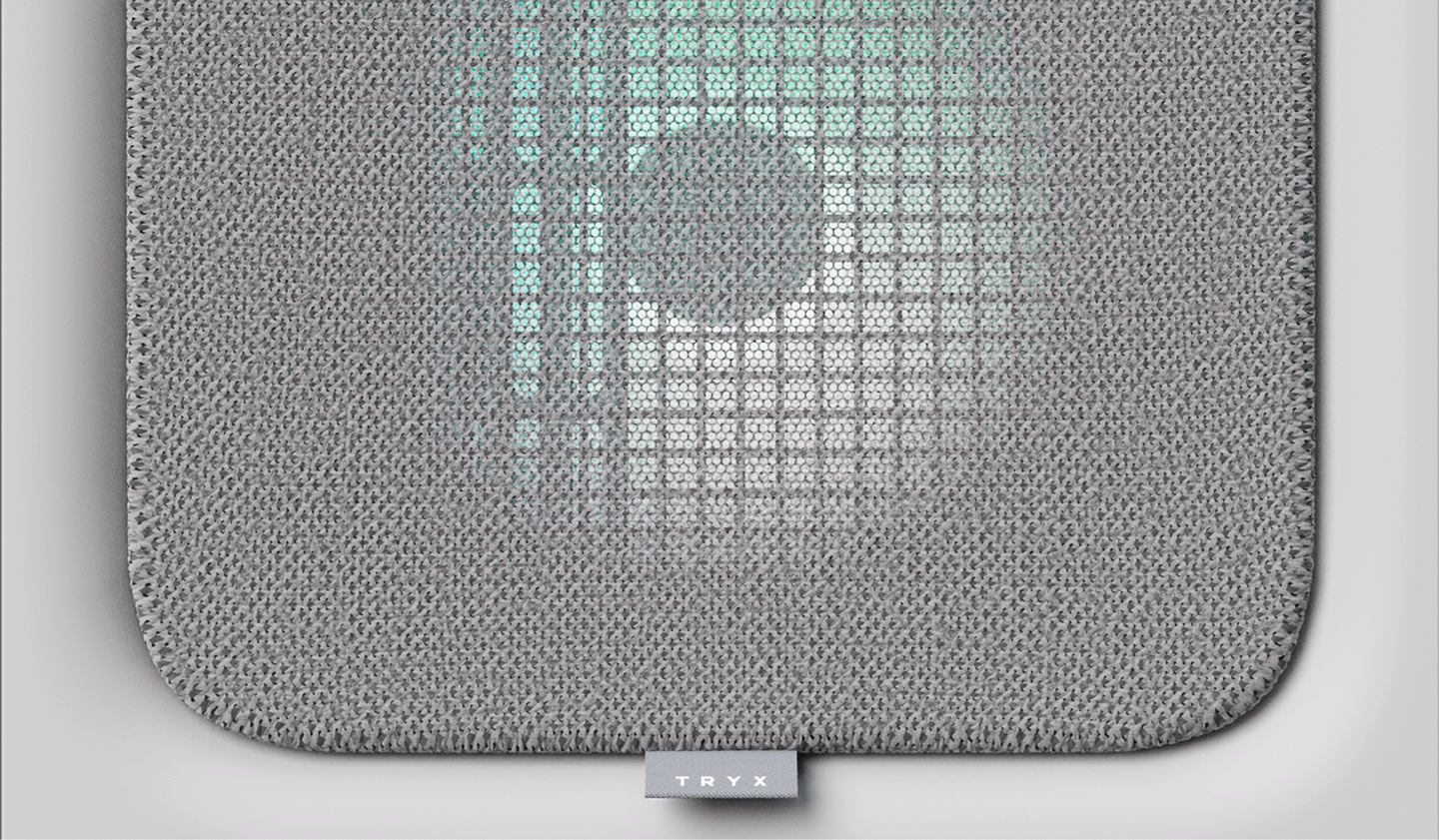

Premium fabric for a touch of warmth

Studio-standard material Premium fabric Shrink and humidity resistant Easily detachable

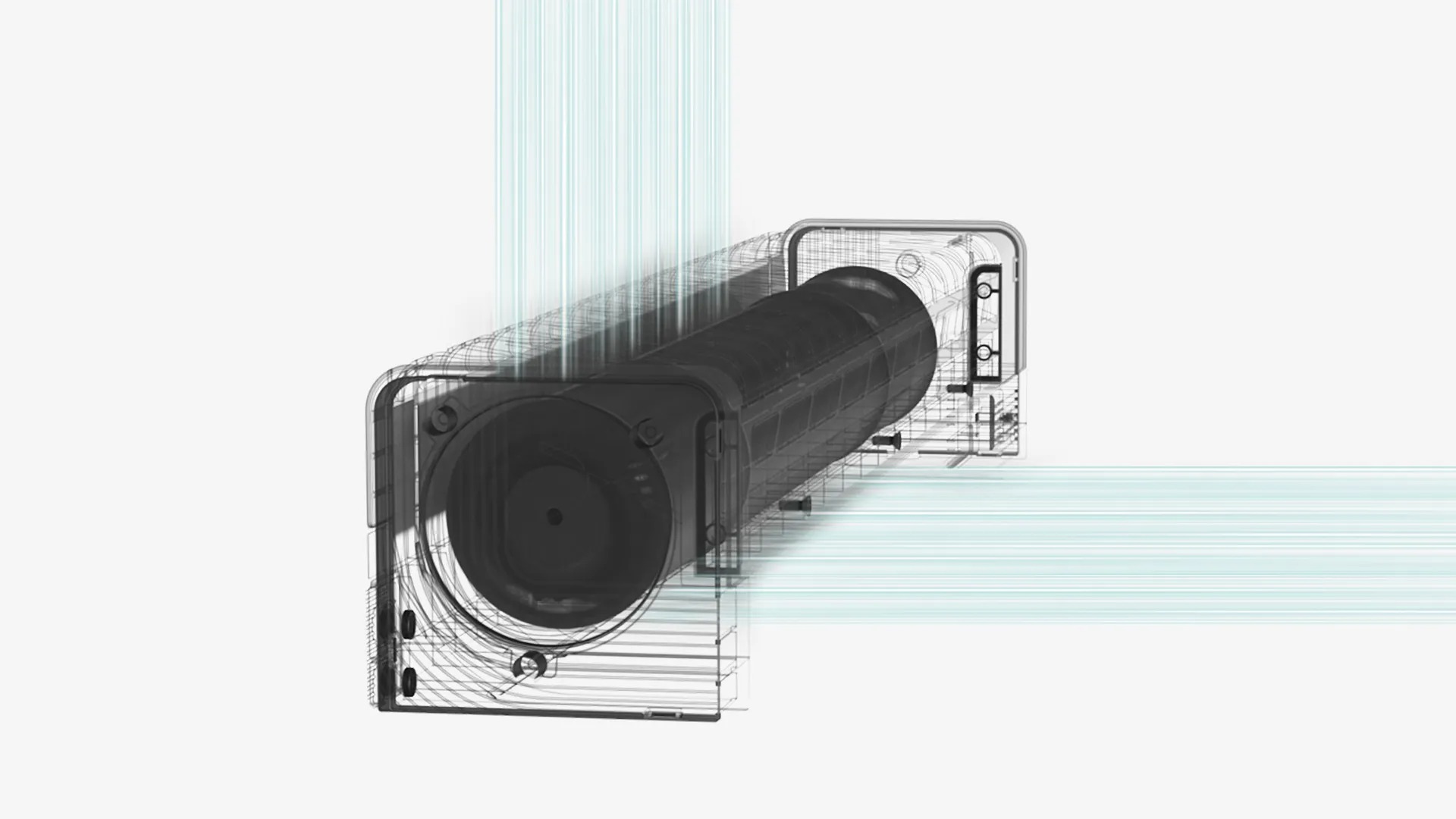

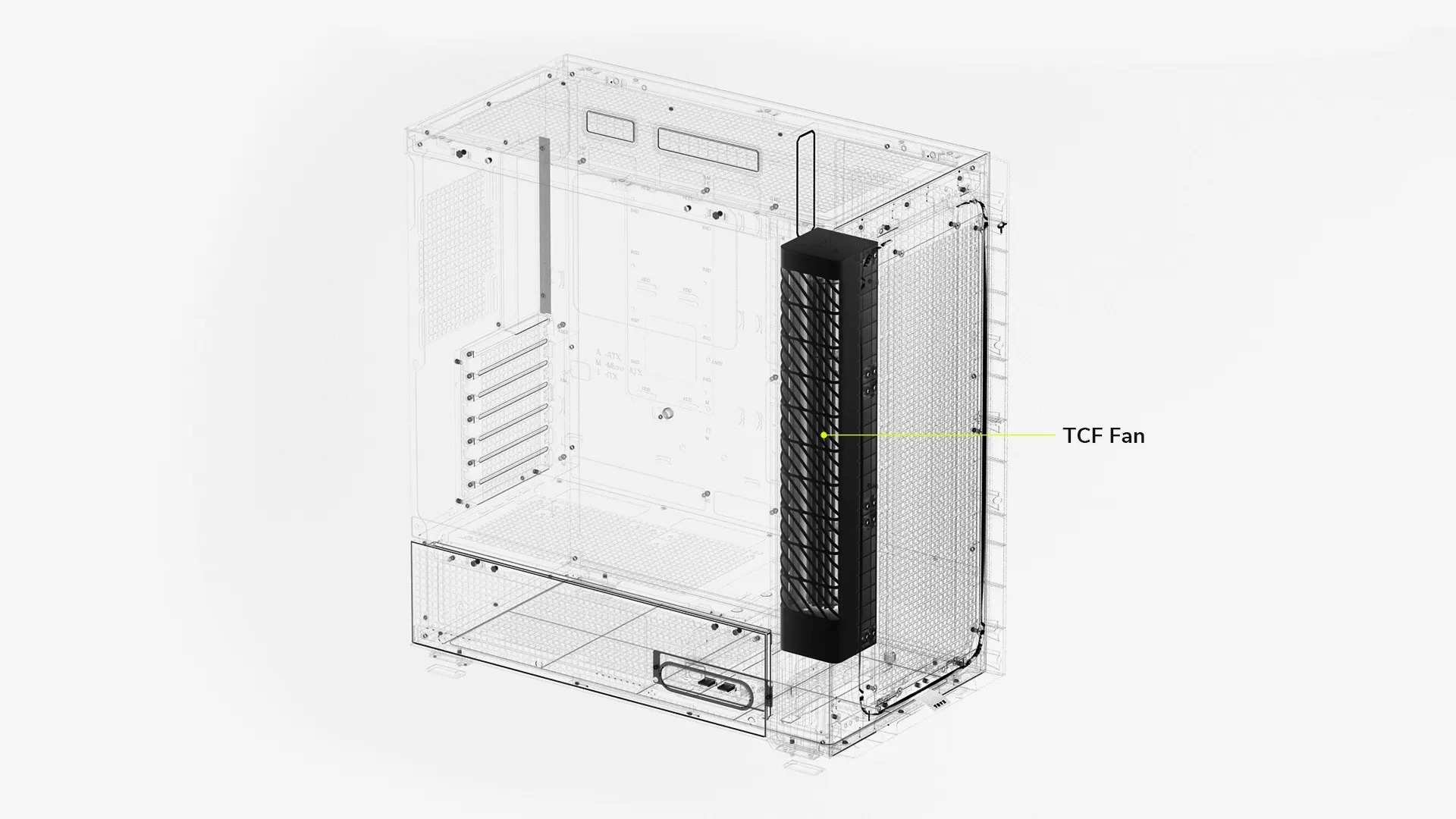

TCF Fan

The TCF (TRYX Cross-Flow) fan allows for an additional intake, low profile and quiet. Designed to deliver air directly to heat sources.

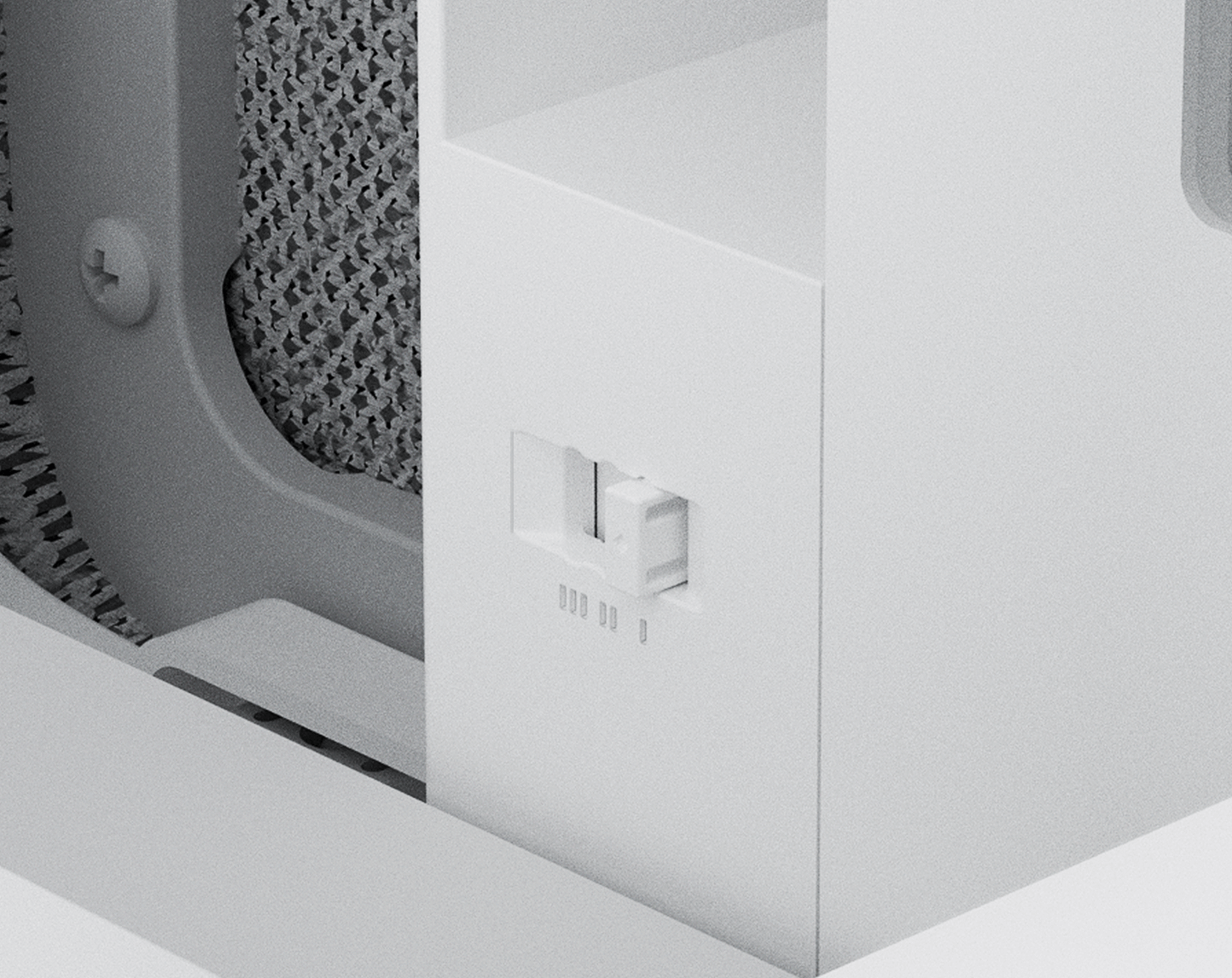

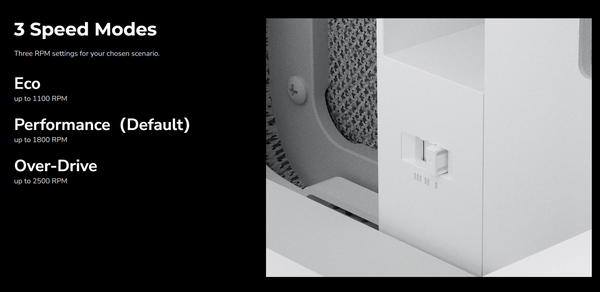

3 Speed Modes

Three RPM settings for your chosen scenario.

Ecoup to 1100 RPM

Performance（Default）up to 1800 RPM

Over-Driveup to 2500 RPM

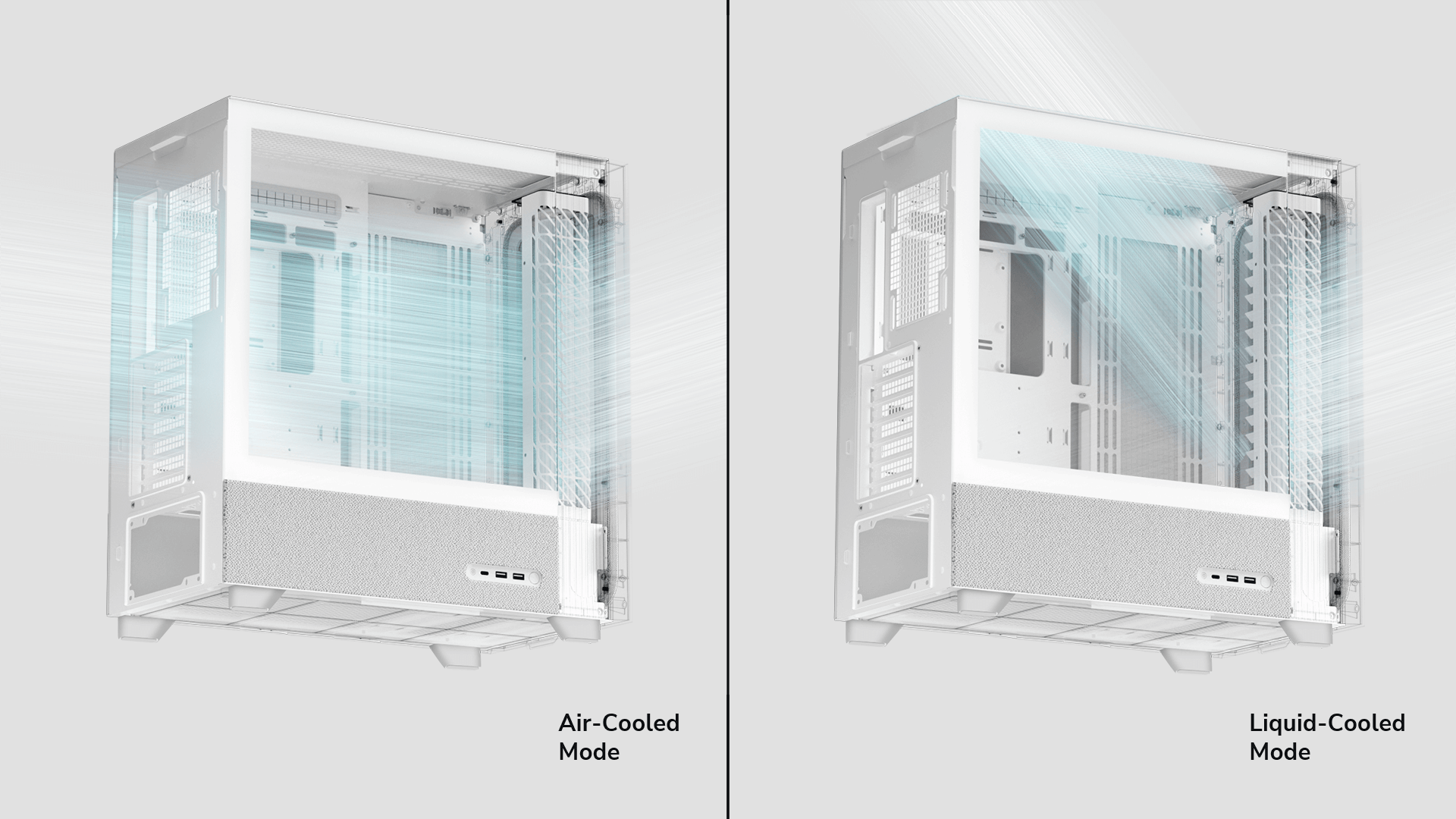

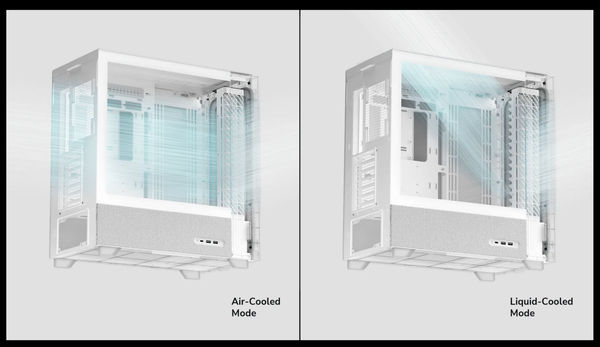

Air-Cooled & Liquid-Cooled Modes

FLOVA’s Cross-Flow fans feature adjustable Air Blades that help optimize airflow, ensuring air and liquid cooled systems have optimal thermal performance.

Wide Compatibility

Precision cut-outs. Support Motherboard Size: ATX / Micro-ATX / Mini-ITX. Back Connect Motherboard Support: ATX（BTF / Project Zero / Project Stealth） Fits the largest card dimensions available(<420mm) e.g., RTX 5090. Support for 360 mm liquid cooling and 3high-wattage power supplies. Precise cut-outs and a 40 mm backplate for 3cable management space

Supports 3 Main Form FactorsExpansive 58L Capacity

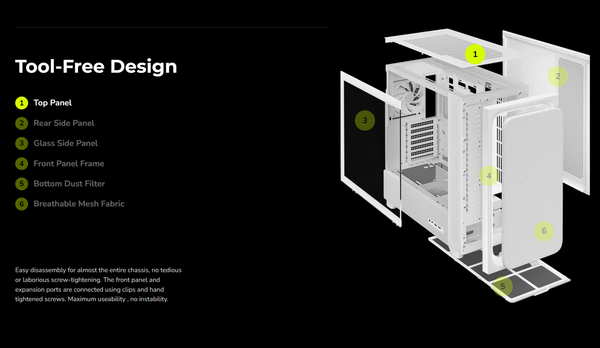

Tool-Free Design

1

Top Panel

2

Rear Side Panel

3

Glass Side Panel

4

Front Panel Frame

5

Bottom Dust Filter

6

Breathable Mesh Fabric

Easy disassembly for almost the entire chassis, no tedious or laborious screw-tightening. The front panel and expansion ports are connected using clips and hand tightened screws. Maximum useability , no instability.

1

2

3

4

5

6

Tool-Free Design

Expansion Possibilites

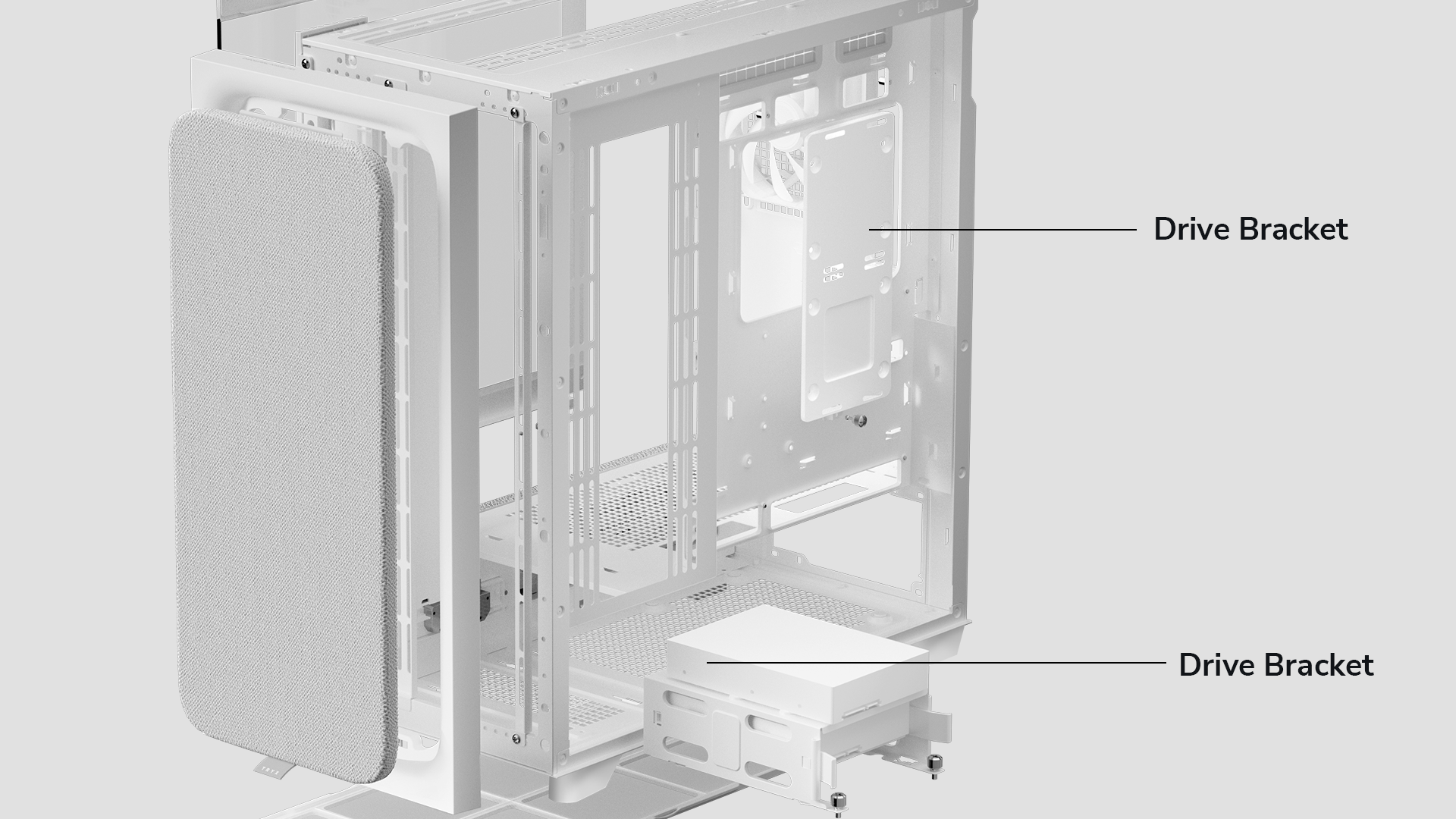

Drive ExpansionFan CompatibilityIO Panel Support
