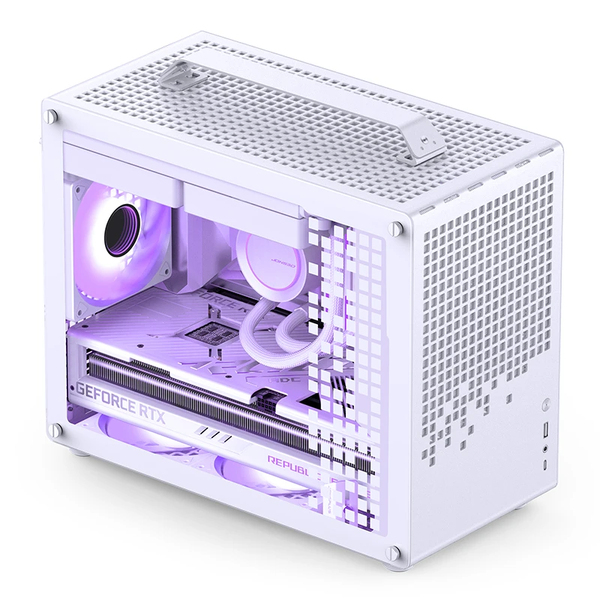

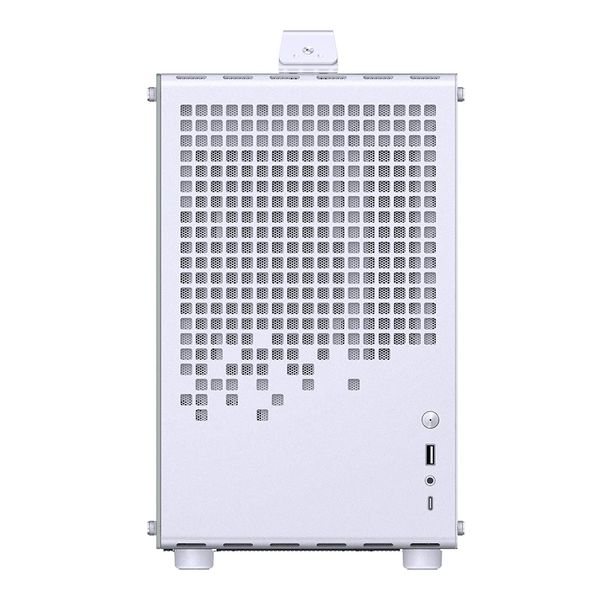

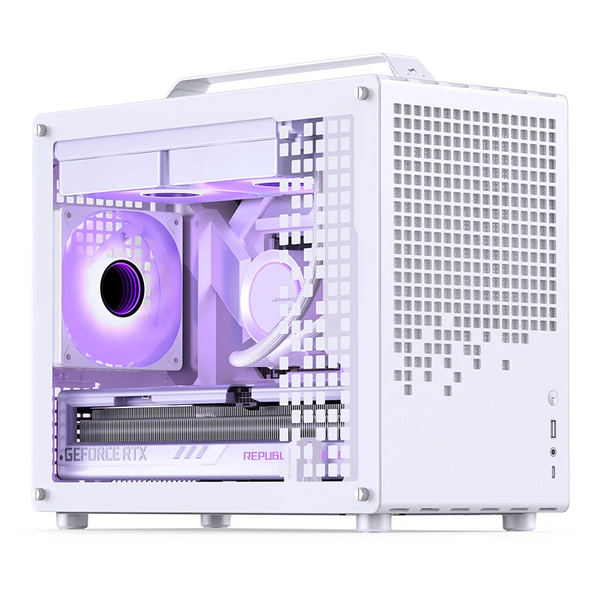

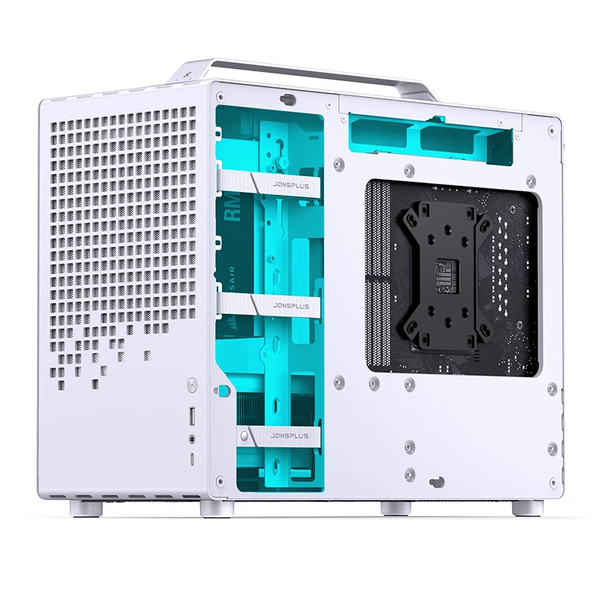

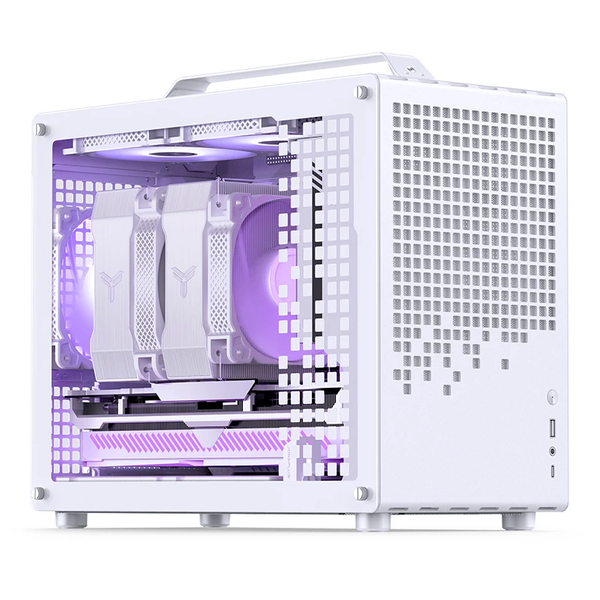

Case Jonsbo Z20 White

Model：Z20

Color：White

Dimension(w/o handle/feet and other protrusions)：370mm * 186mm* 295mm(depth/width/height)

Dimension (with handle/feet and other protrusions)：382mm * 198mm* 335mm (depth/width/height)

Case Material：SPCC Steel，Tempered Glass

Motherboard Support: Mini-ITX / Micro-ATX

Drive Bay： 2.5〞SSD：up to 3,depends on other hardware configurations

3.5〞HDD：up to 1,depends on other hardware configurations

Front IO Port：USB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

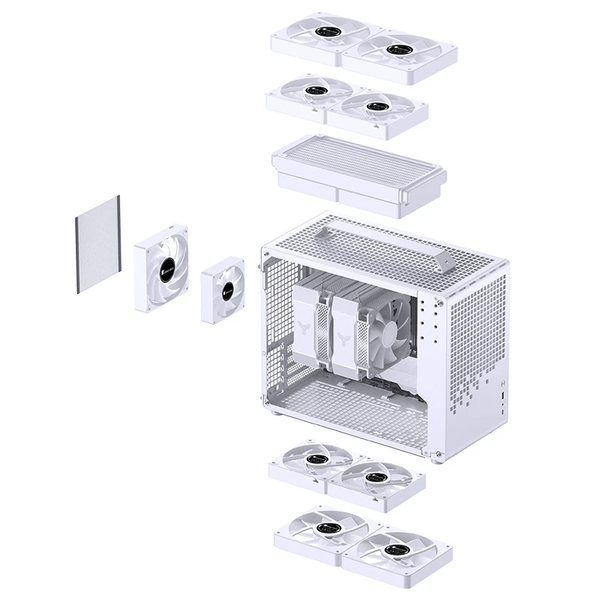

FAN：Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations

Radiator support：Top，up to 240mm

ATX PS2 PSU Clearance：Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)

SFX PSU Support：SFX / SFX-L

CPU Air Cooler Clearance：164mm MAX (Intel CPU) or 163mm MAX (AMD CPU)

GPU Clearance：Up to 363mm，depends on other hardware configurations

Weight：N.W. 5kg / G.W. 6.5kg
