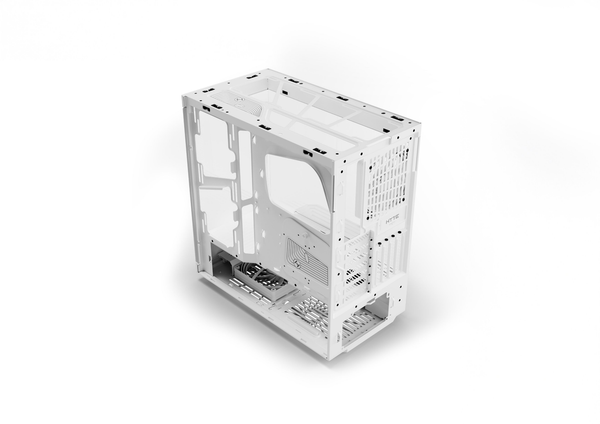

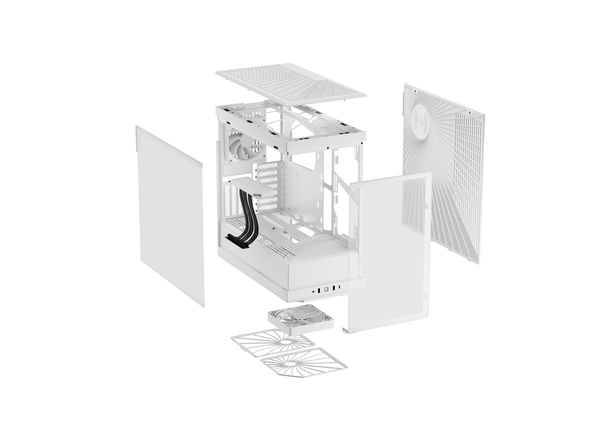

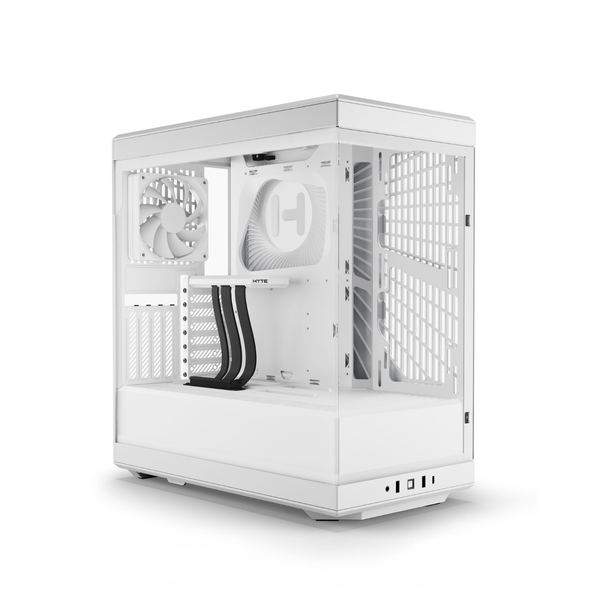

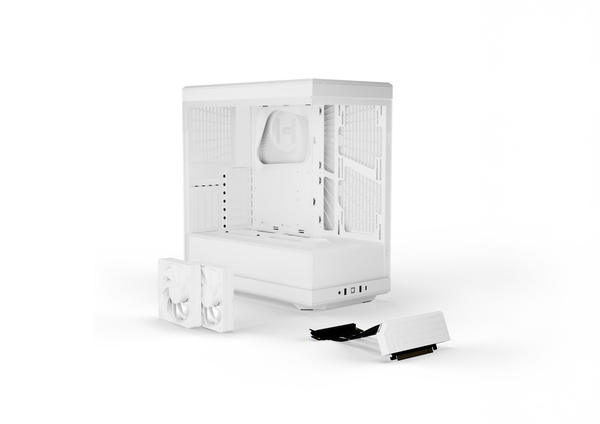

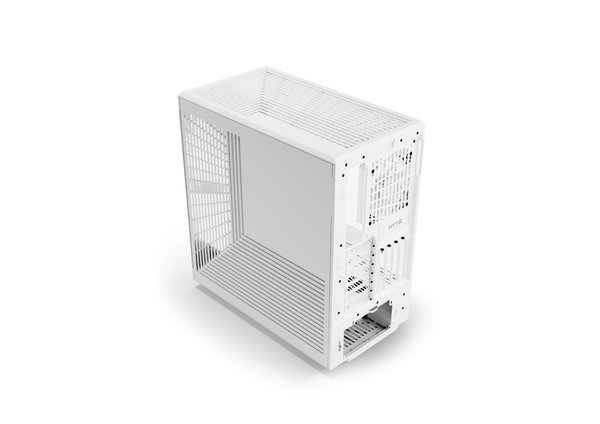

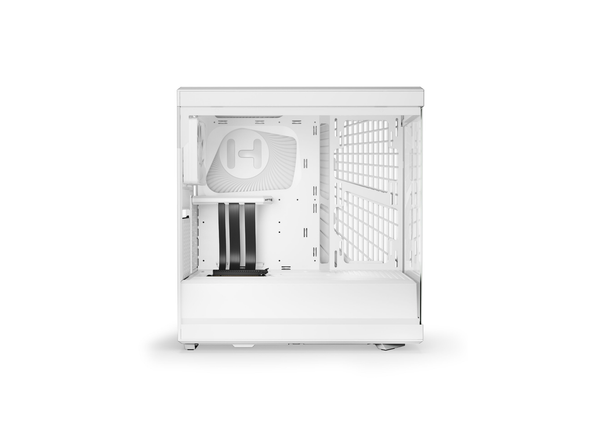

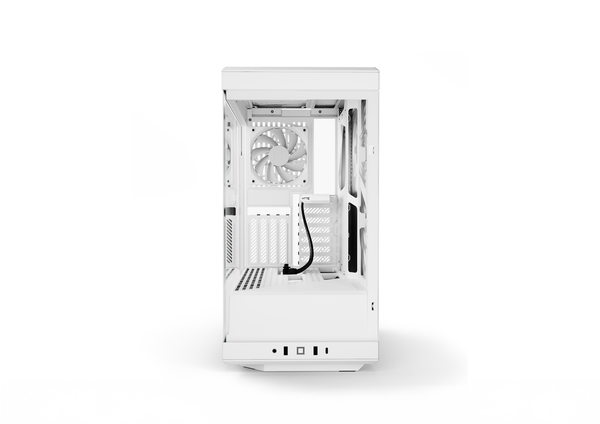

Designed From Every Dimension
The all-new Y40 is designed to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.
Specs Summary
| Type | ATX Mid Tower |
|---|
| Volume | 50L |
|---|
| Case Dimensions | 439mm x 240mm x 472mm |
|---|
| Motherboard Support | ITX, mATX, ATX |
|---|
| Power Supply | ATX up to 224mm in length |
|---|
| Video Card Max Dimensions | 422mm length, 94mm height (80mm height or less recommended for best cooling) |
|---|
| Fan Support (Side) | 2x 120mm/140mm |
|---|
| Fan Support (Top) | Top: 3x 120mm |
|---|
| Fan Support (Rear) | 1x 120mm (1x 120mm, 1300 rpm included) |
|---|
TECH SPECS
Type ATX Mid Tower
Volume 50L
Case Dimensions 439mm x 240mm x 472mm
Motherboard Support ITX, mATX, ATX
Power Supply ATX up to 224mm in length
Video Card Max Dimensions 422mm length, 94mm height (80mm height or less recommended for best cooling)
Fan Support (Side) 2x 120mm/140mm
Fan Support (Top) Top: 3x 120mm
Fan Support (Rear) 1x 120mm (1x 120mm, 1300 rpm included)
Fan Support (Bottom) 1x 120mm/140mm (1x 120mm, 1300 rpm included)
Radiator Support (Side) 120, 140, 240, 280mm up to 120mm thick
Radiator Support (Top) 120, 240, 360mm
Radiator Support (Rear) 120mm
CPU Cooler Height 183mm
Storage 1 x 3.5" HDD or 2 x 2.5" SSD
Expansion Slots 4 + 6 half-height
Sku CS-HYTE-Y40-BW, CS-HYTE-Y40-B, CS-HYTE-Y40-BR, CS-HYTE-Y40-WW
Interfaces
PCI Express Riser Cable 4.0 x 16 (included)
Front USB 3.0 2
Front USB 3.2 Type-C 1
Audio/Mic Jack 1
Dust Filters Top, Side, Bottom (x2)
RGB Lighting None
