Case Type: FULL Tower
MB hỗ trợ: ATX、Micro-ATX、Mini-ITX
Chất liệu: SPCC & ABS & Tempered glass
Tản/fan hỗ trợ:
AIO: Top: 360mm、280mm / Side: 360mm、420mm / Rear: 120mm.
Fans: Top: 3 x 120mm、2 x 140mm / Side: 3 x 120mm、 3 x 140mm / Rear: 1 x 120mm / Bottom: 3 x 120mm
Hỗ trợ ổ cứng:
2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage)
2 x 2.5"(HDD Cage) + 3 x 2.5'' (SSD Bracket)
I/O Ports:
USB 3.0 x2, Type C x 1, HD Audio x1, LED Control x1

Hỗ trợ chiều cao tản CPU: 193mm
Hỗ trợ chiều dài VGA: 426mm
Hỗ trợ VGA đặt ngang: 192mm
Hỗ trợ PSU: 180mm
Kích thước:
490 x 310 x 495 mm

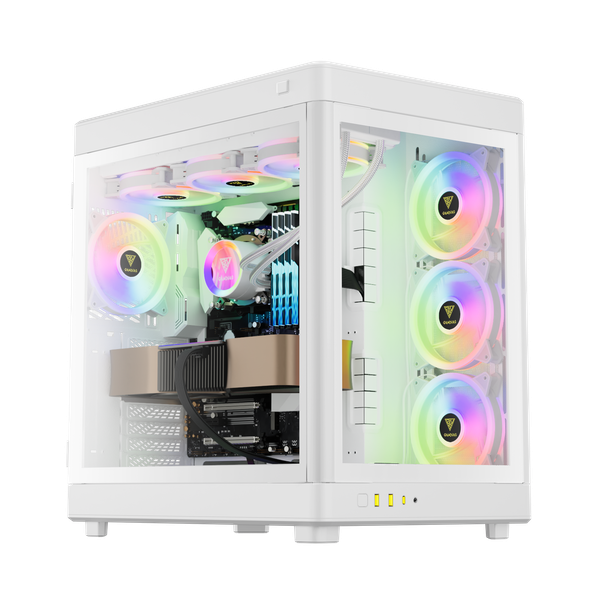

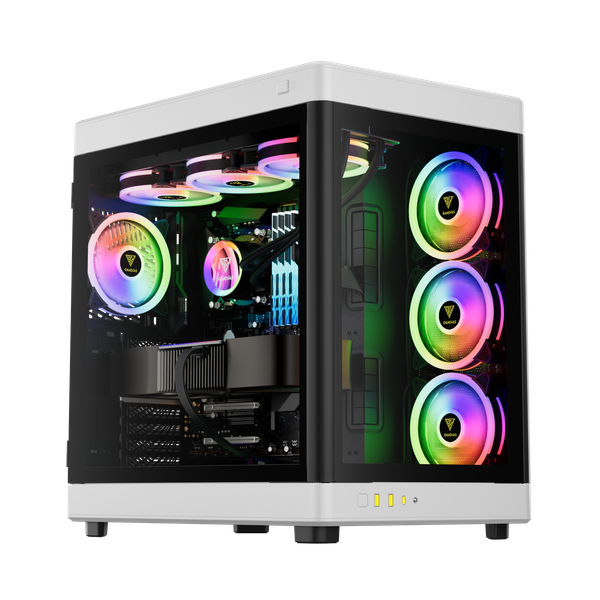

PRIME LIFESTYLE CASE

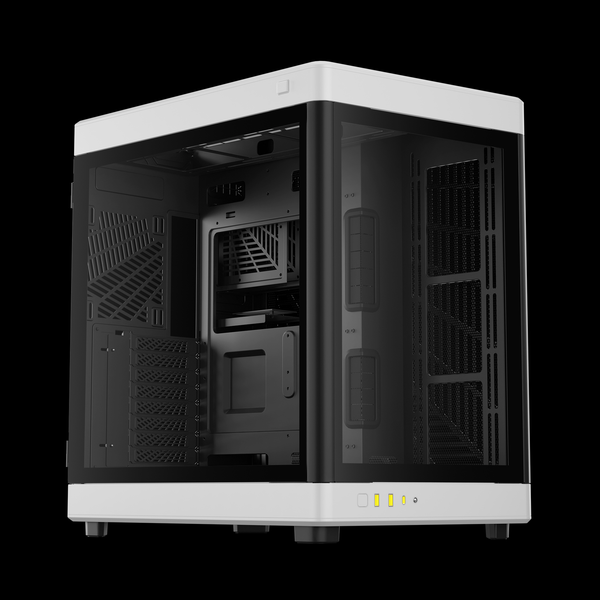

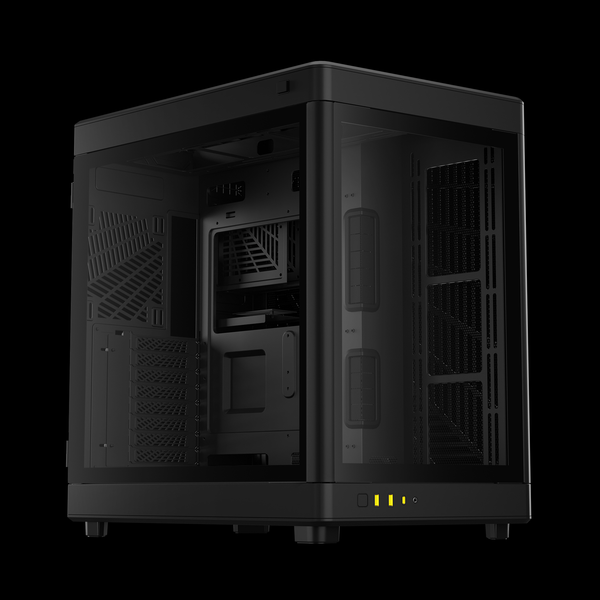

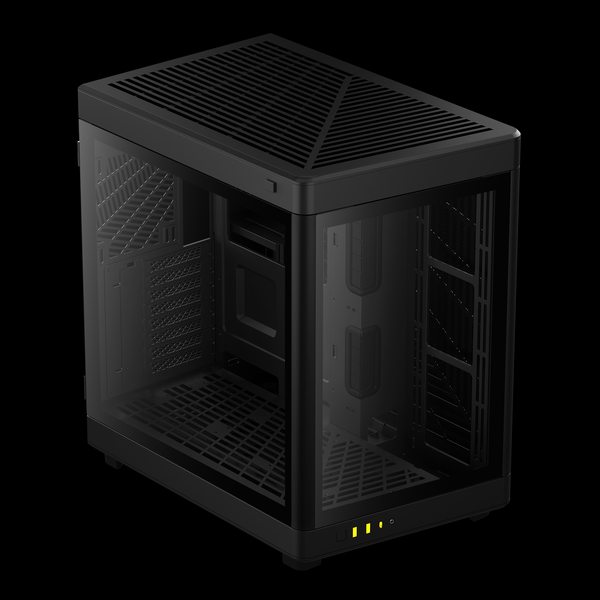

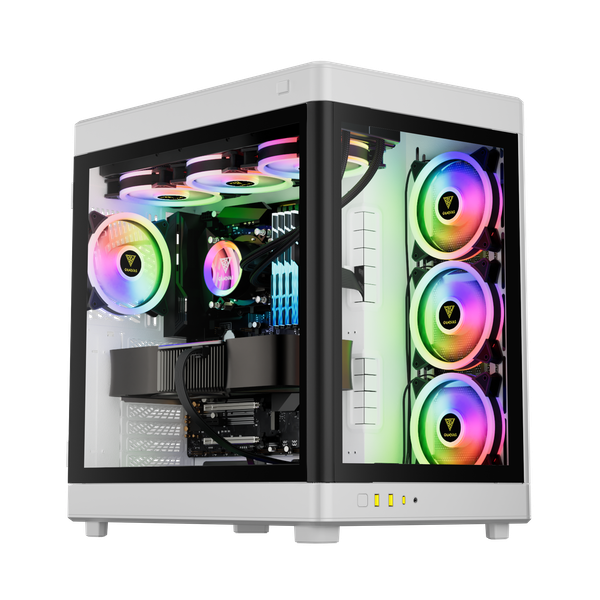

The NESO P1 full-tower case features a dual-chamber design and a distinctive trapezoidal form that allows you to showcase your hardware in either horizontal or vertical orientation. Improve your building experience by using the one-touch mechanism to easily remove the glass and gain access to the inside for upgrades and maintenance. The high-end chassis provide robust functionalities and features for enthusiasts, gamers, and professionals who require high-end performance, better build quality, and improved aesthetics.

LIFESTYLE DESIGN

The NESO P1 comes out as a lifestyle case with its distinctive trapezoidal appearance and a sleek grid design from the inside-out.

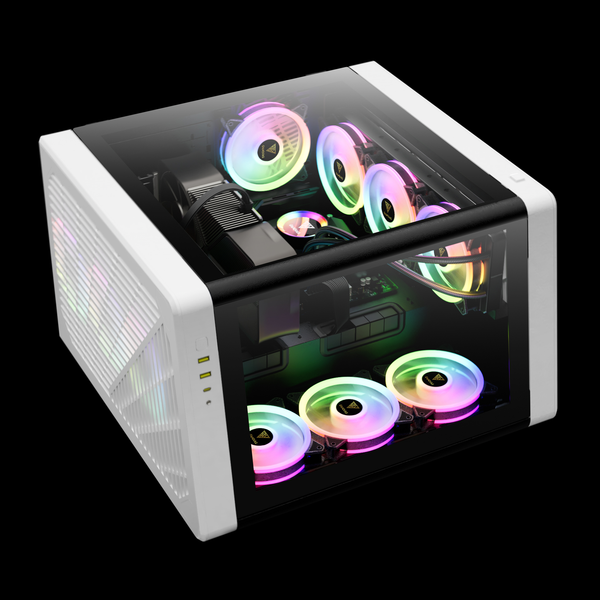

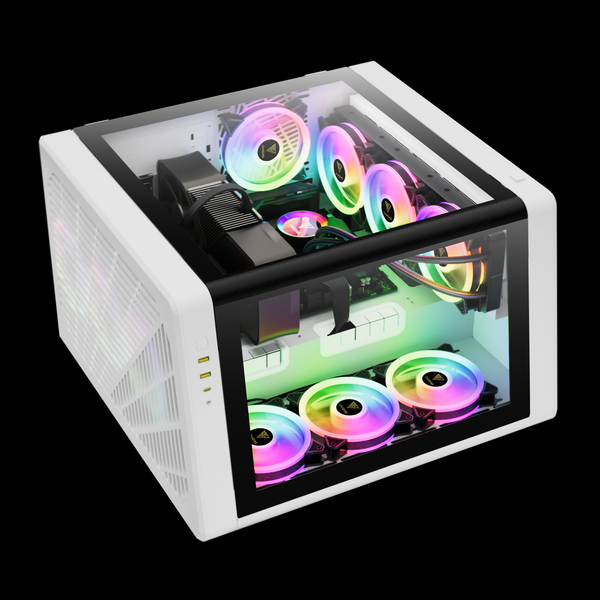

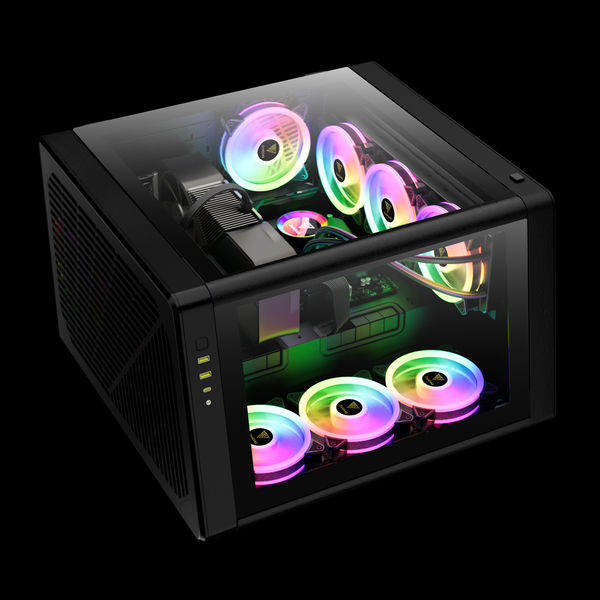

MODULAR ORIENTATION

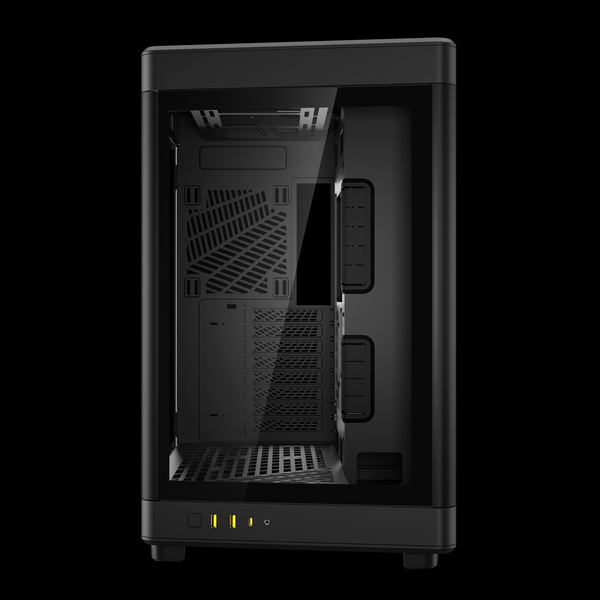

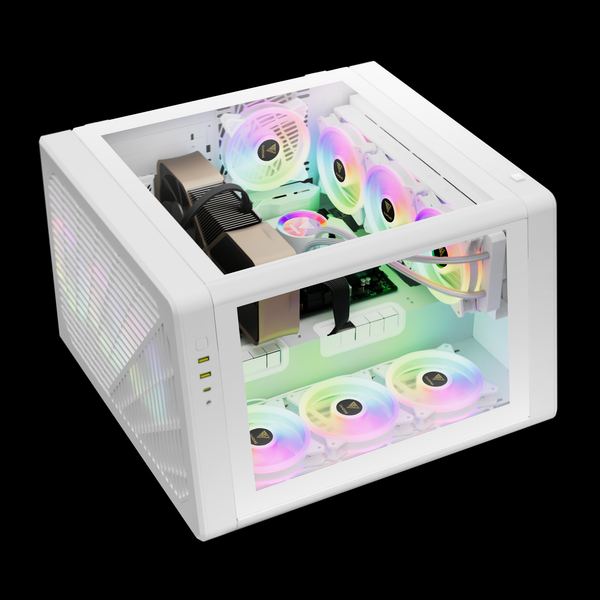

The case utilizes modular pedestals to rotate the case from vertical to horizontal seamlessly while leveraging solid airflow and stability. A new case orientation provides a fresher look and unlocks an entirely new building experience.

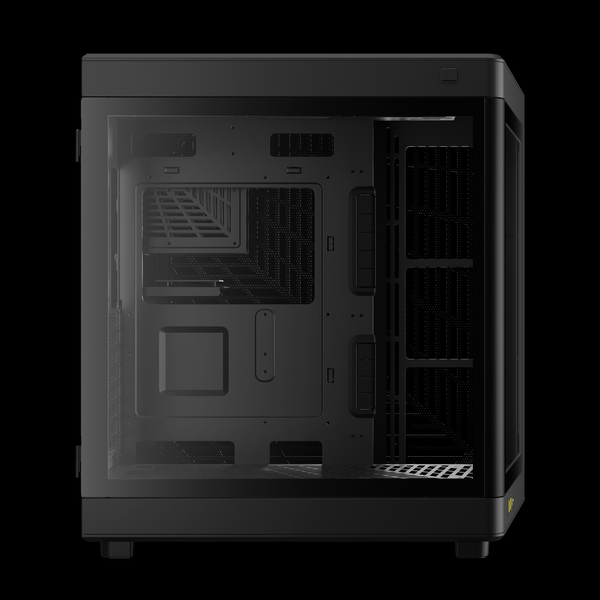

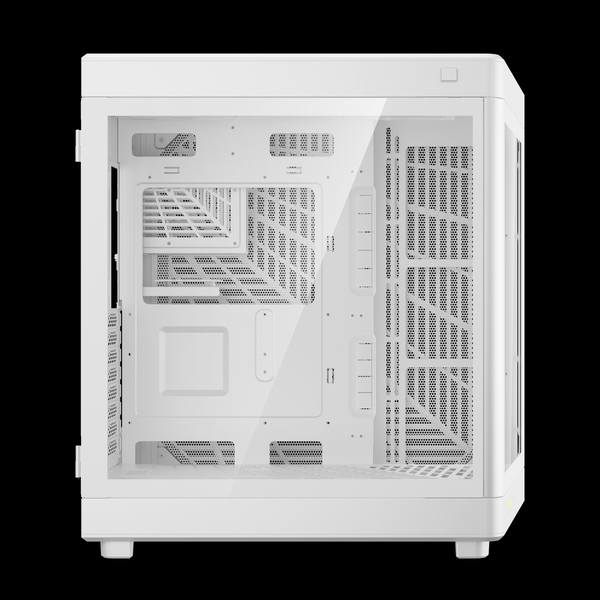

FULL PANORAMIC DISPLAY

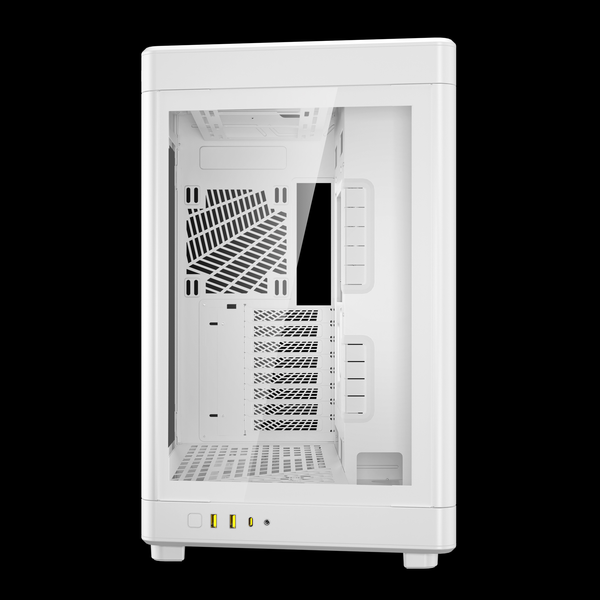

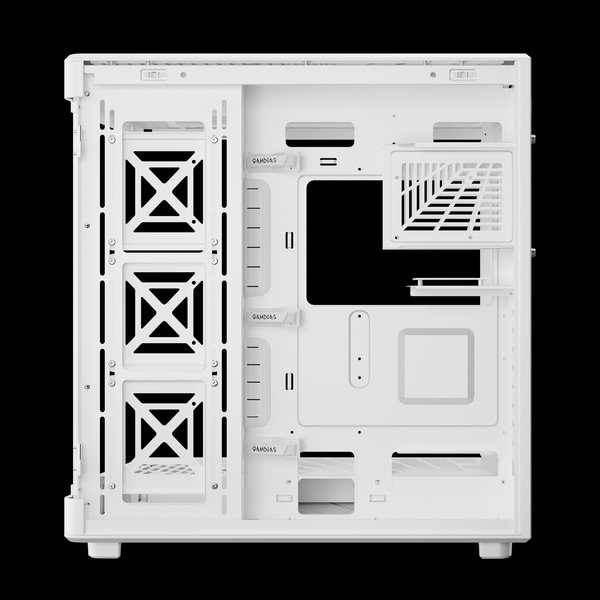

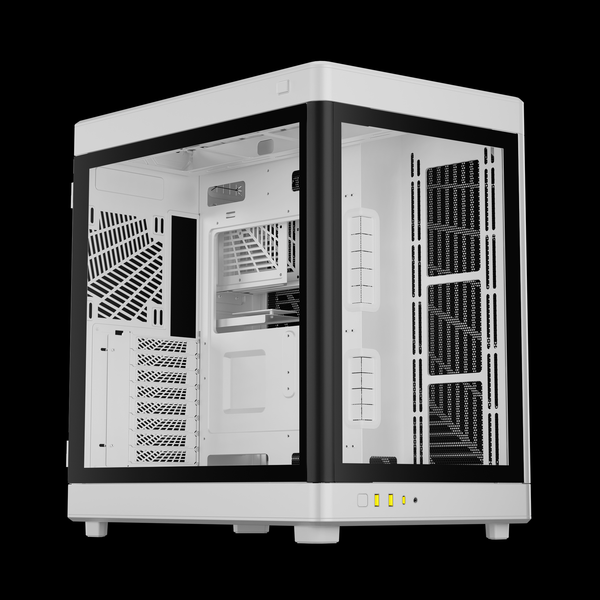

The NESO P1 is an open dual-chamber case that properly displays all of your hardware thanks to its unique trapezoidal form factor while concealing unsightly cables and components.

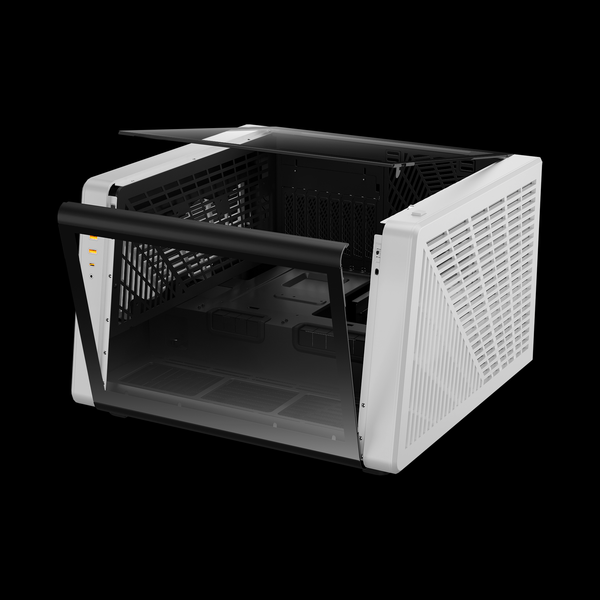

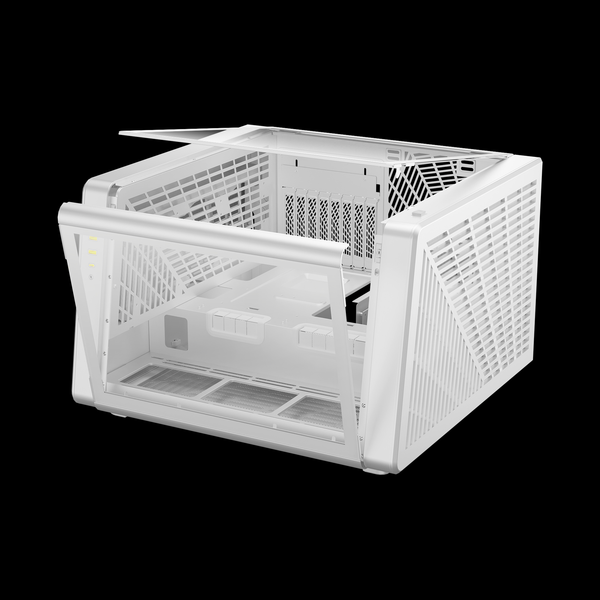

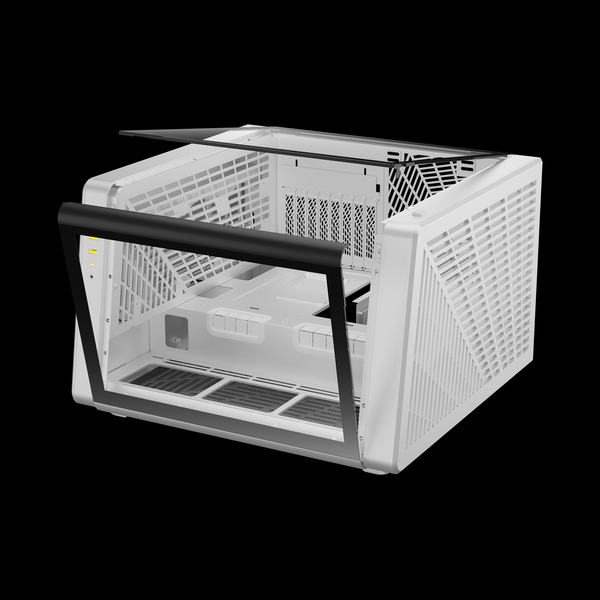

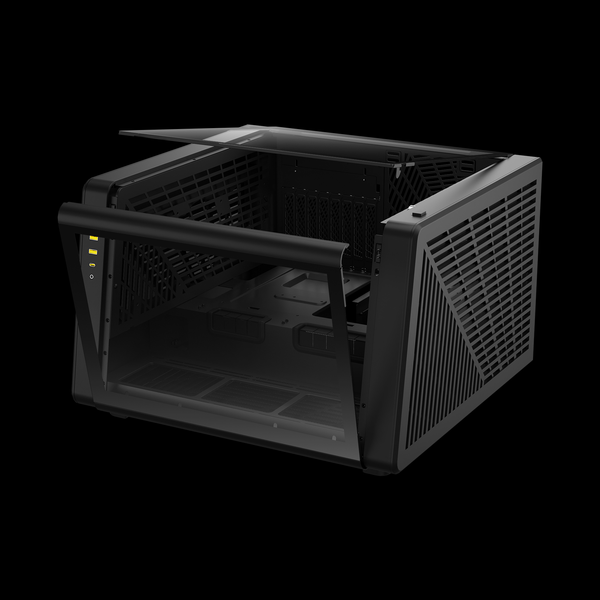

ONE-TOUCH RELEASE MECHANISM

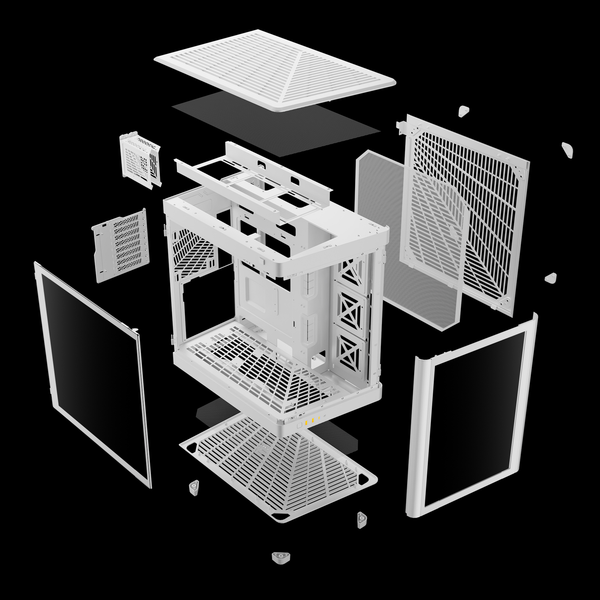

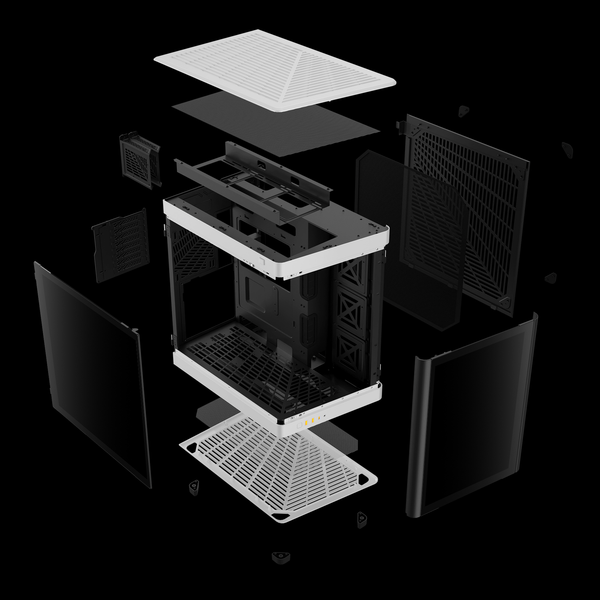

Access your hardware with ease with a simple touch of a button. The dual-hinged tempered glass side panels are detachable for an improved modding experience.

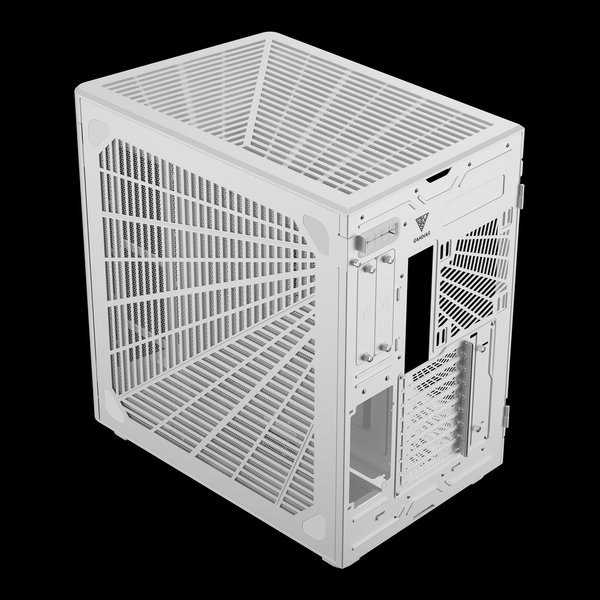

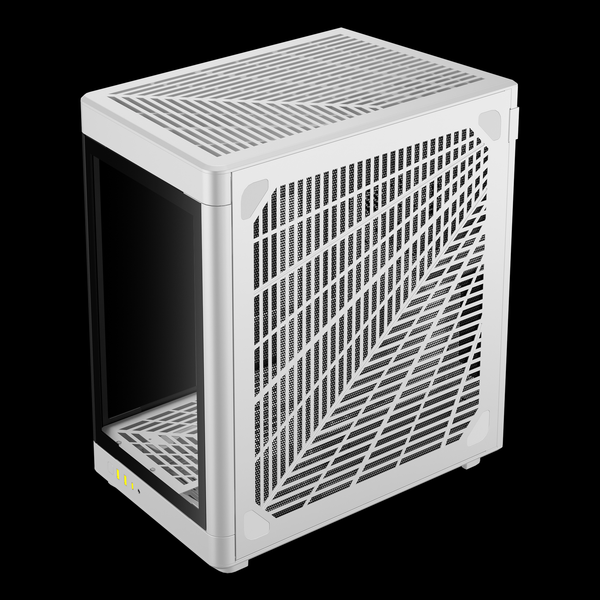

NEXT-LEVEL AIRFLOW DESIGN

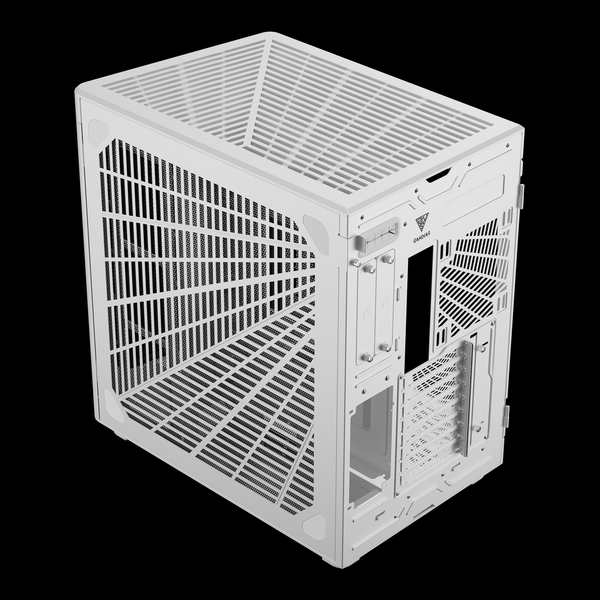

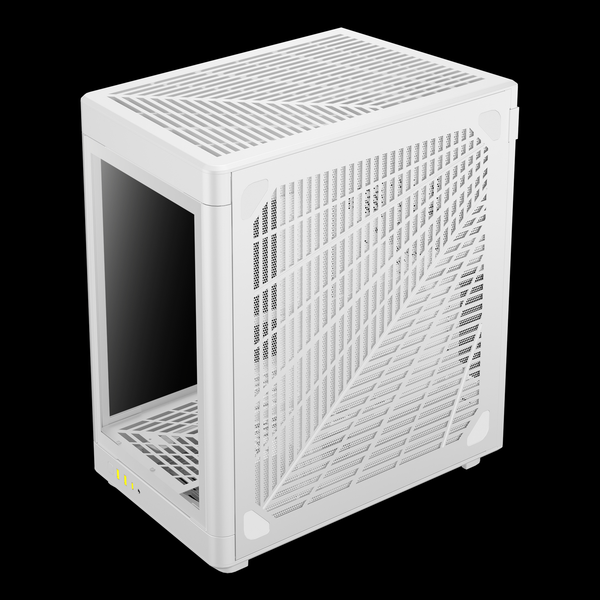

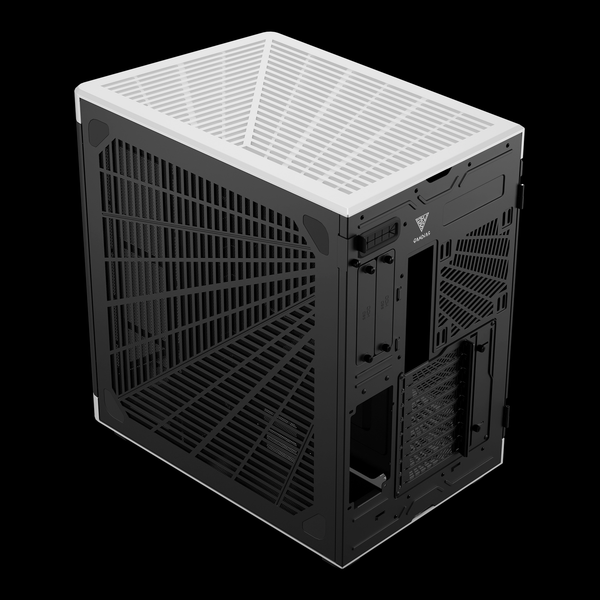

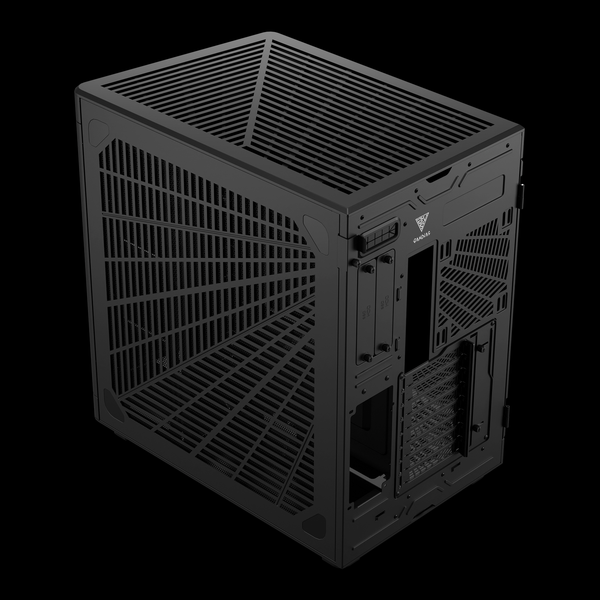

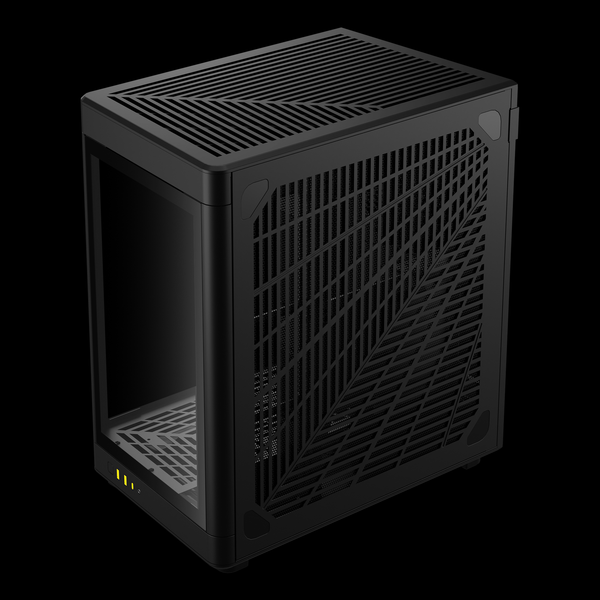

Through fully perforated mesh panels around the case, the NESO P1 provides optimum airflow routes and endless options to configure airflow intake and exhaust while utilizing the modular case orientation.

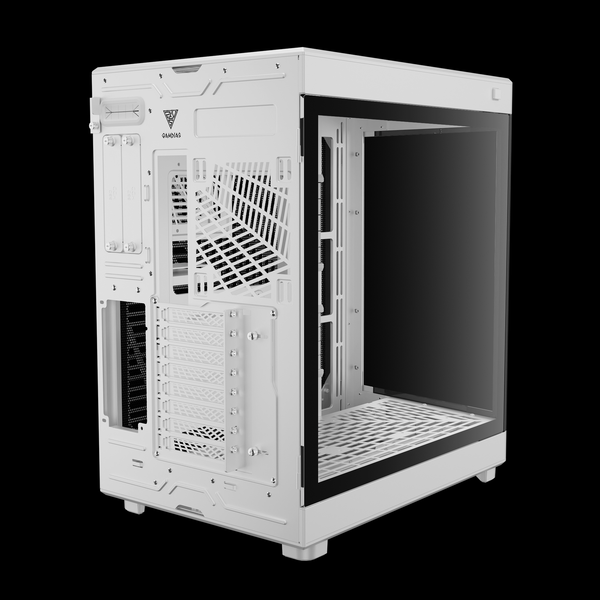

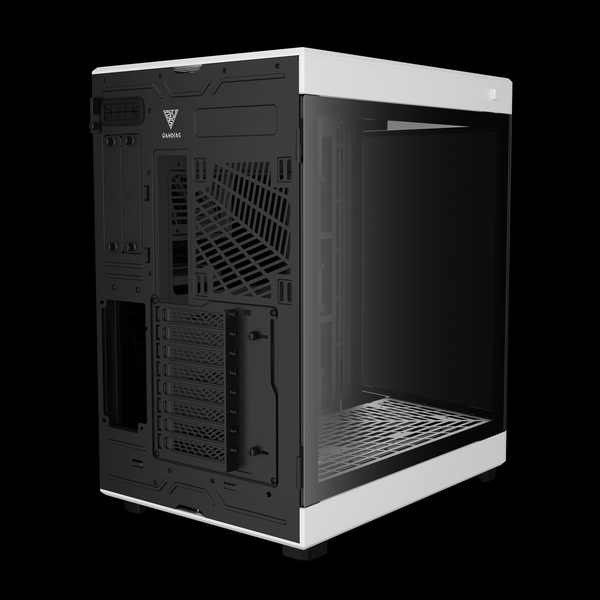

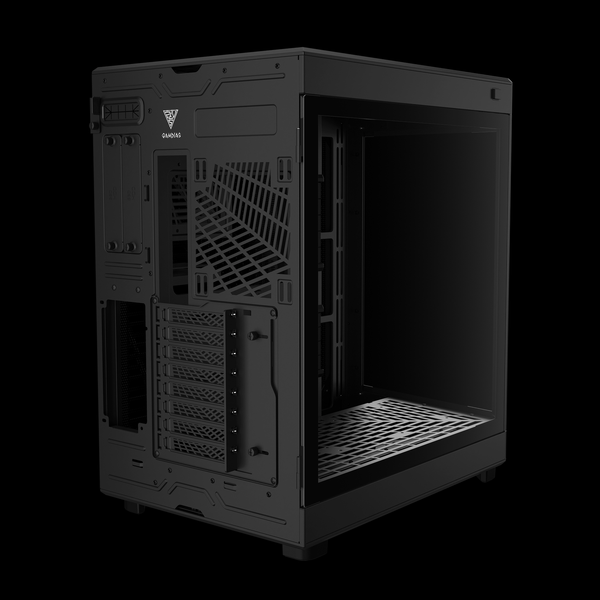

ROTATABLE PCIe SLOTS

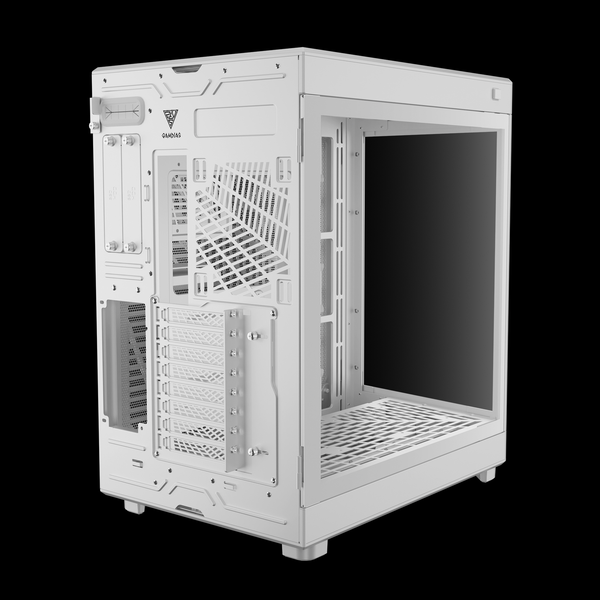

NESO P1 features 8x8 rotatable PCIe slots and interior space of up to 426mm allowing flexible installation of horizontal and vertical GPUs of up to RTX 40-series.

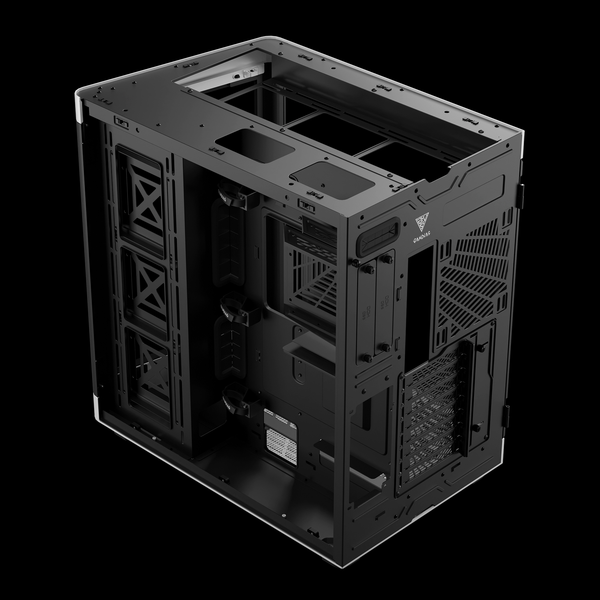

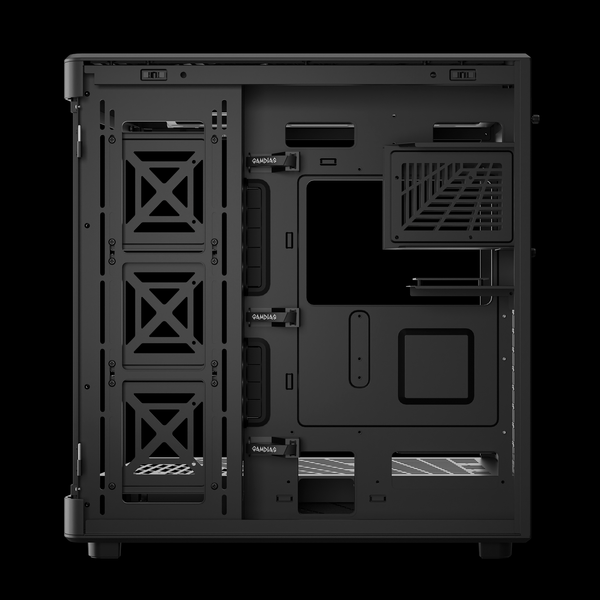

EXCELLENT CABLE MANAGEMENT

The case's hidden compartment is 90mm deep, allowing for ample cable management as well as a well-designed cable routing system with included velcro straps for a superb building experience.

MODERN FRONT PANEL I/O

The concise I/O features USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and an integrated audio jack.

EXTENSIVE COOLING CAPABILITY

The side of the case is compatible with up to 420mm radiators and features an increased depth of 80mm for extra thick radiators and next-generation configurations.

EFFORTLESS INSTALLATION

The case is equipped with a detachable top cooling bracket for easy installation of top-side radiators up to 280/360mm in length.

FAN CAPACITY

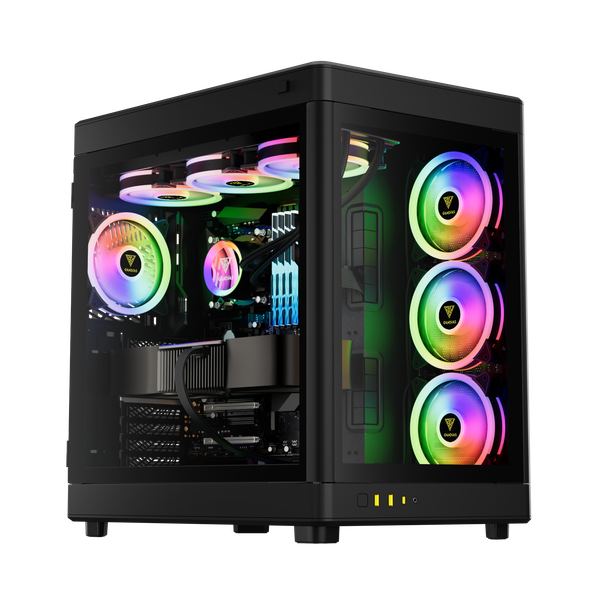

NESO P1 is able to house up to 10 fans, providing a wider range of build customizability for professionals and enthusiasts.

EXTENSIVE STORAGE COMPATIBILITY

The hidden compartment is able to accommodate PSU with lengths up to 180mm. It also comes with an additional SSD bracket and allows the case to install up to 5 x 2.5" SSD, or up to 2 x 3.5" HDD.

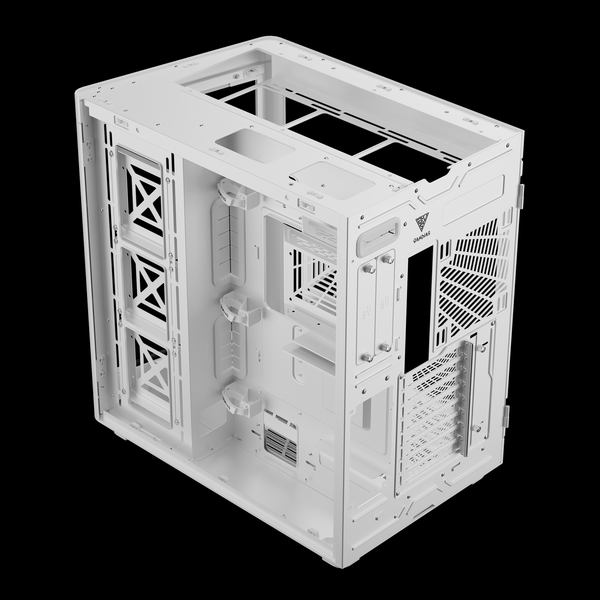

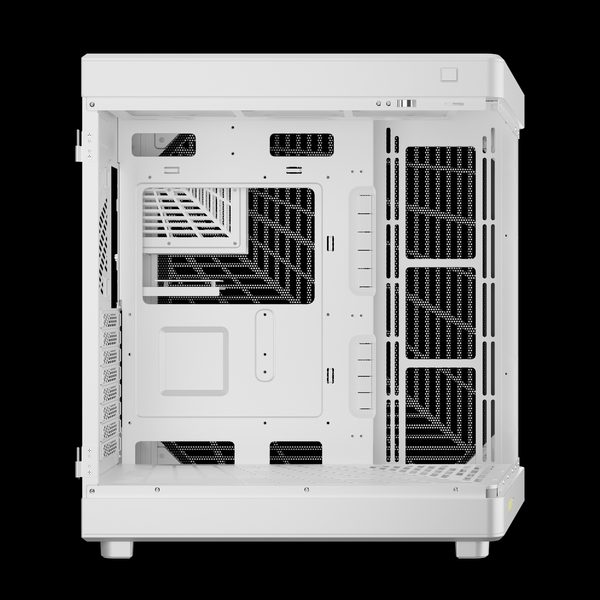

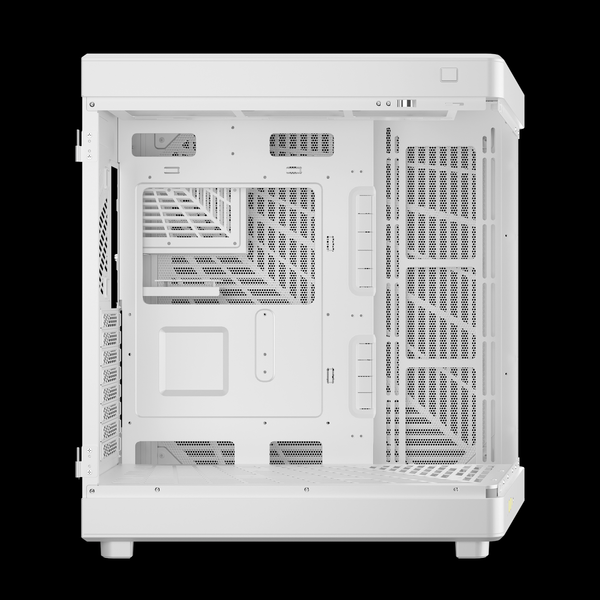

MASSIVE INTERIOR

Ready for the next-gen configurations and hardware, NESO P1 supports E-ATX motherboards with widths up to 310 mm, and VGA cards with lengths up to 426mm and widths up to 192 mm.

FIND YOUR IDENTITY

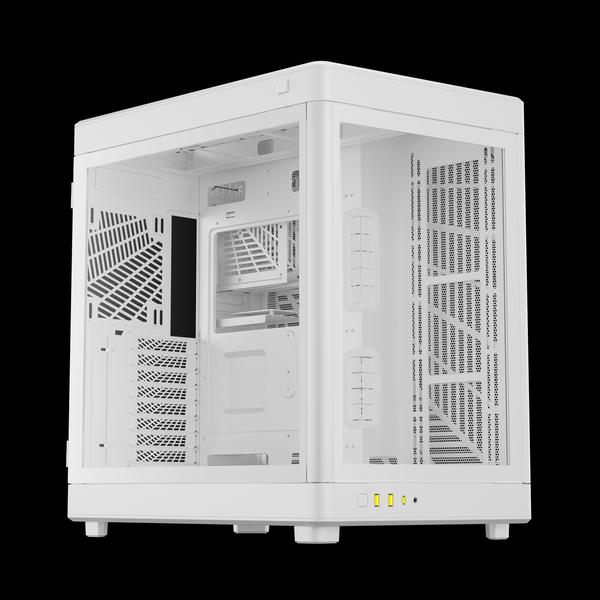

Available in five different color variations: black, black and white, white, red, and pure white. Choose and combine your components to create a NESO P1 build that will stand out and best reflect you.

SPECIFICATIONS

Model

NESO P1 B, BW, W, WW

CASE

Case Type FULL Tower

MB Support E-ATX (310mm Width)、ATX、Micro-ATX、Mini-ITX

Synchronization No

CASE Color Black/ White

Expansion Slots 8 to 8

Material SPCC & ABS & Tempered glass

Window Front, Left

Radiator Support Top: 360mm、280mm / Side: 360mm、420mm / Rear: 120mm

Fan Support Top: 3 x 120mm、2 x 140mm / Side: 3 x 120mm、 3 x 140mm / Rear: 1 x 120mm / Bottom: 3 x 120mm

Drive Bays 2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage)
2 x 2.5"(HDD Cage) + 3 x 2.5'' (SSD Bracket)

I/O Port USB 3.0 x2, Type C x 1, HD Audio x1

Clearance CPU cooler height limitation:193mm
VGA length limitation: 426mm
VGA width limitation: 192mm
PSU length limitation: 180mm

Dimension (L x W x H) 490 x 310 x 495 mm

Net Weight 11.97 kg / 26.38 lb
