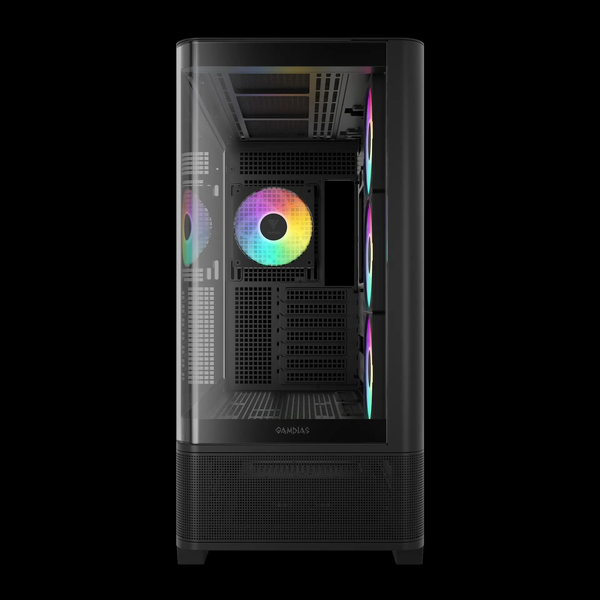

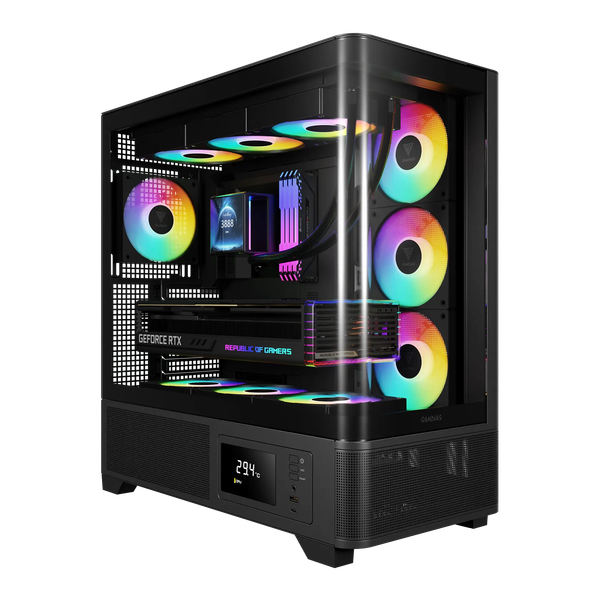

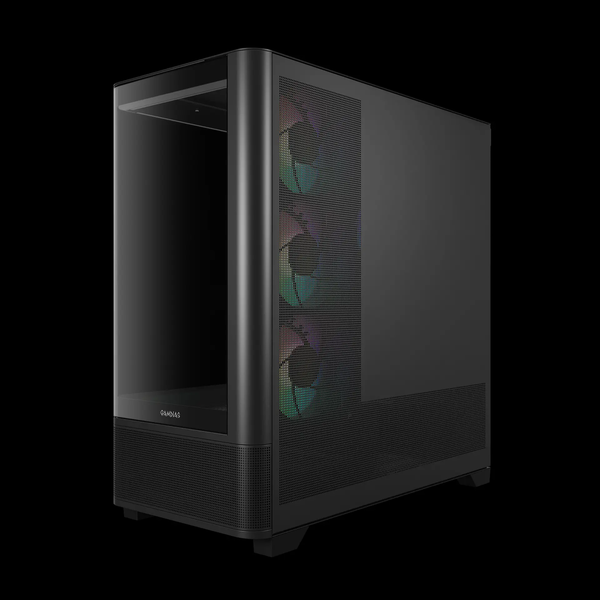

ATLAS P2 CG

SEAMLESS CURVE, LIMITLESS POTENTIAL

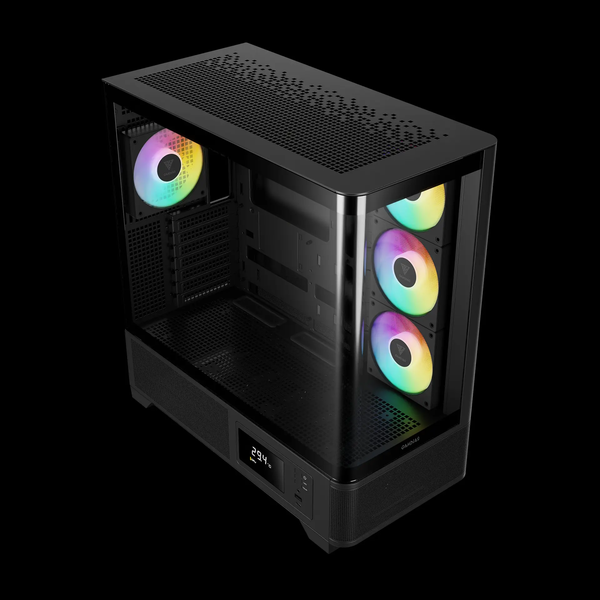

• Seamless Tempered Glass Display

• One-piece Curved Glass Panel

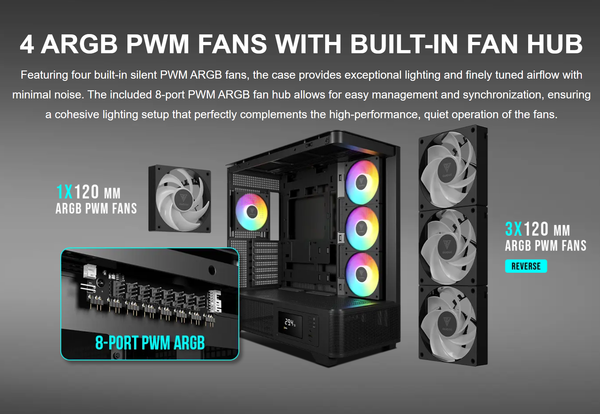

• 4 Built-in 120mm ARGB PWM Fans

• Includes Fan Hub & Velcro Straps

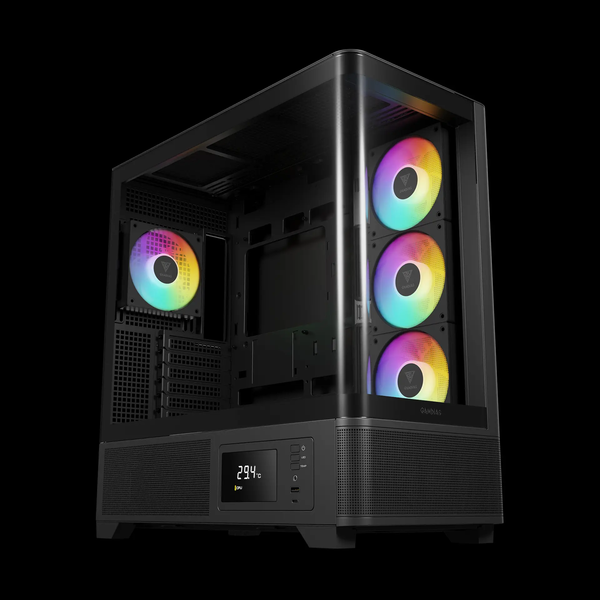

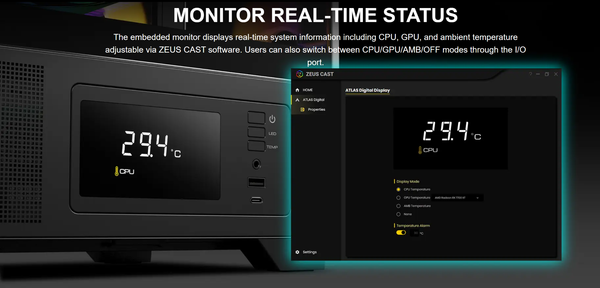

• Customized Monitor for System Information and Ambient Temperature

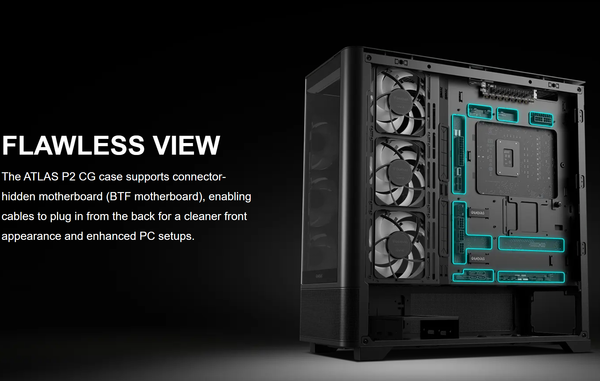

• Supports Connector-hidden Motherboards

• Fits Mini-ITX, Micro-ATX and ATX motherboards

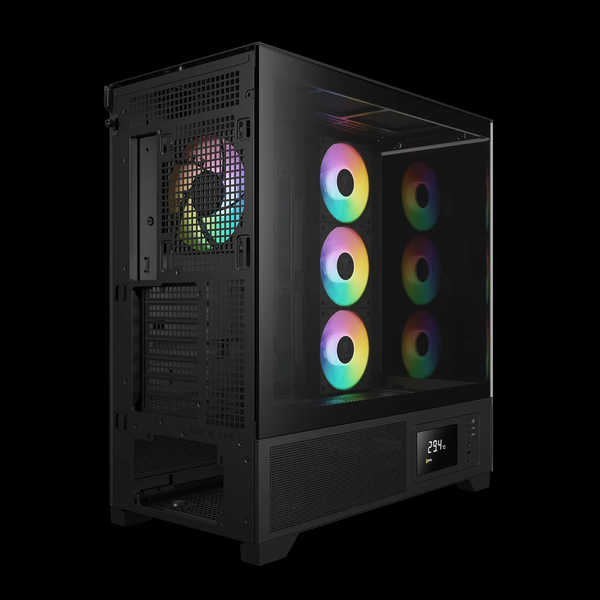

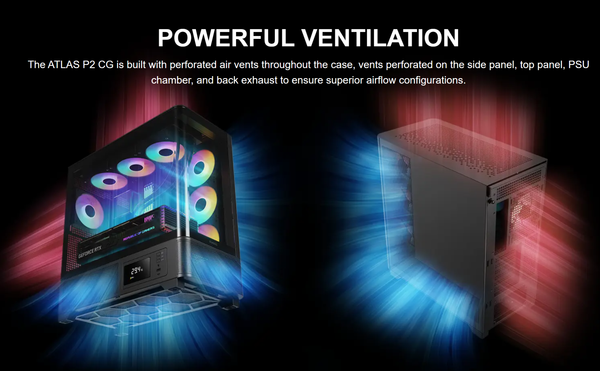

• Perforated Air Vent PSU Chamber

• Compatible with 430mm GPU

• Magnetic Dust Filter

Kính cong nguyên khối
Màn hình Digital hiển thị nhiệt độ thời gian thực
Case Type: MID Tower
MB hỗ trợ: ATX、Micro-ATX、Mini-ITX
Chất liệu: SPCC & ABS & Kính cuòng lực

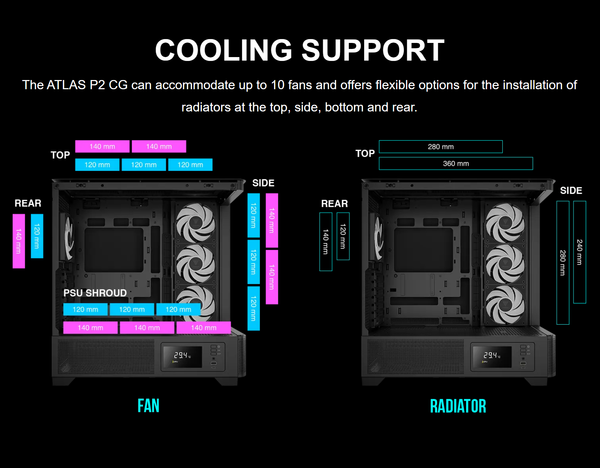

Tản/fan hỗ trợ:
AIO: Top: 360mm, 280mm / Bên: 240mm, 280mm / Sau: 120mm, 140mm.
Fan:
- Top: 3 x 120mm, 2 x 140mm
- Side: 3 x 120mm, 2 x 140mm
- Rear: 1 x 120mm, 1 x 140mm
- Bottom: 3 x 120mm, 3 x 140mm
SẴN 4 FANS ARGB syncmain, đi kèm controller hub 8 slots

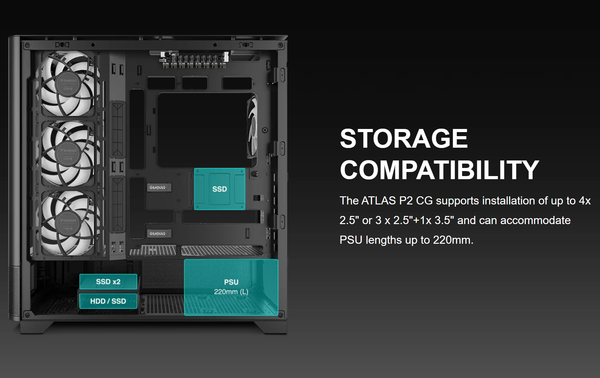

Hỗ trợ ổ cứng:
2 x 3.5" or 2 x 2.5"+1 x 3.5"(HDD Cage)
1 x 2.5"(SSD Bracket)
I/O Ports: USB 3.0 x 1, Type C x 1, HD Audio x1, LED Control x1, Monitor Mode Switch x 1

Hỗ trợ chiều cao tản CPU: 180mm
Hỗ trợ chiều dài VGA: 430mm
Hỗ trợ PSU: 220mm
Kích thước:
475 x 238 x 500 mm

SPECIFICATIONS

Model

ATLAS P2 CG

CASE

Case Type MID Tower

MB Support ATX、Micro-ATX、Mini-ITX

Synchronization 5V 3-Pin Addressable Header

CASE Color Black

Expansion Slots 7

Material SPCC & ABS & Tempered glass

Window Front, Left

Radiator Support Top: 360mm、 280mm
Side: 240mm、 280mm
Rear: 120mm、 140mm

Fan SupportTop: 3 x 120mm, 2 x 140mm
Side: 3 x 120mm, 2 x 140mm
Rear: 1 x 120mm, 1 x 140mm
Bottom: 3 x 120mm, 3 x 140mm

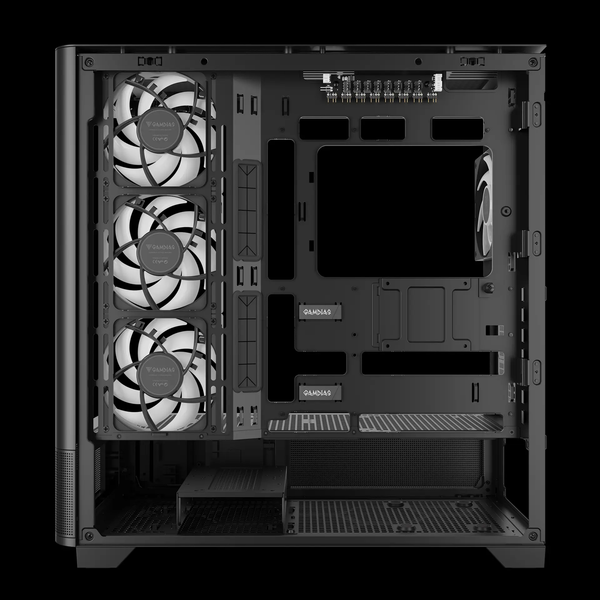

Pre-installed FansSide : 3 x 120mm ARGB PWM Fans
Rear: 1 x 120mm ARGB PWM Fan

Drive Bays 2 x 3.5" or 2 x 2.5"+1 x 3.5"(HDD Cage)
1 x 2.5"(SSD Bracket)

I/O Port USB 3.0 x 1, Type C x 1, HD Audio x1, LED Control x1, Monitor Mode Switch x 1

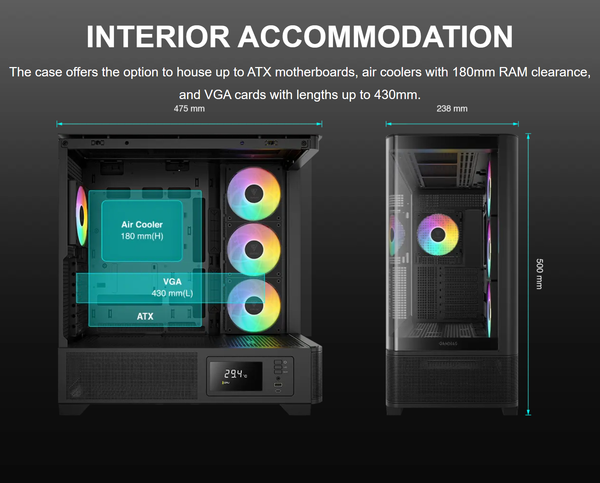

Clearance CPU cooler height limitation:180mm
VGA length limitation:430mm
PSU length limitation:220mm

Dimension (L x W x H)475 x 238 x 500 mm

Net Weight 9.55kg / 21 lb

Pre-installed Control BOX8 Ports Hub (4 ports are used)
