Màn hình hiển thị nhiệt độ thời gian thực
Case Type: MID Tower
MB hỗ trợ: ATX、Micro-ATX、Mini-ITX
Chất liệu: SPCC & ABS & Tempered glass
Tản/fan hỗ trợ:
AIO: Top: 360mm、280mm / Side: 240mm / Rear: 120mm.
gẮN 3 FANS ARGB syncmain, fan PWM, đi kèm controller hub 6slots
Hỗ trợ ổ cứng:
2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage)
2 x 2.5"(SSD Bracket)
I/O Ports:
USB 3.0 x 1, Type C x 1, HD Audio x1, LED Control x1, Monitor Mode Switch x 1

Hỗ trợ chiều cao tản CPU: 160mm
Hỗ trợ chiều dài VGA: 410mm
Hỗ trợ PSU: 180mm
Kích thước:
420 x 210 x 465 mm

SPECIFICATIONS

Model

ATLAS M1

CASE

Case Type MID Tower

MB Support ATX、Micro-ATX、Mini-ITX

Synchronization 5V 3-Pin Addressable Header

CASE Color Black

Expansion Slots 7+2

Material SPCC & ABS & Tempered glass

Window Front, Left

Radiator Support Top: 360mm、 280mm / Side: 240mm / Rear: 120mm

Fan Support Top: 3 x 120mm、2 x 140mm / Side: 2 x 120mm / Rear: 1 x 120mm

Pre-installed Fans Side : 2 x 120mm ARGB PWM Fans /
Rear : 1 x 120mm ARGB PWM Fan

Drive Bays 2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage)
2 x 2.5" (SSD Bracket)

I/O Port USB 3.0 x 1, Type C x 1, HD Audio x1, LED Control x1, Monitor Mode Switch x 1

Clearance CPU cooler height limitation:160mm
VGA length limitation: 410mm
PSU length limitation: 180mm

Dimension (L x W x H) 420 x 210 x 465 mm

Net Weight 7.6 kg / 16 lb

Pre-installed Control BOX 6 Ports Hub (3 ports are used)

FUNCTIONALITY WITH SEAMLESS VISUALS

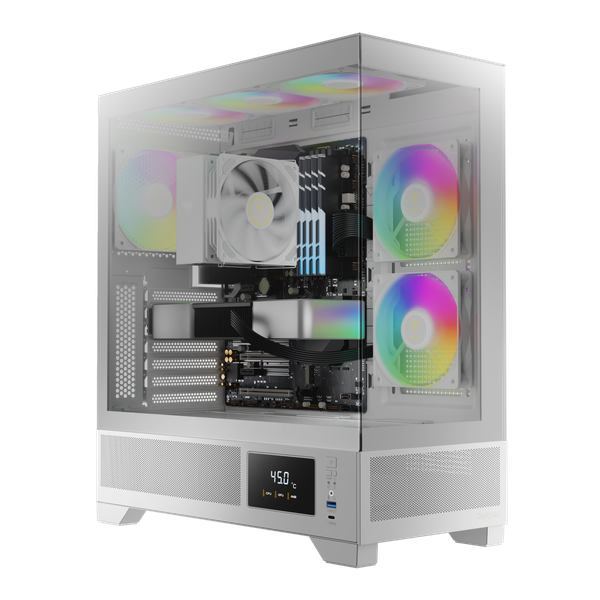

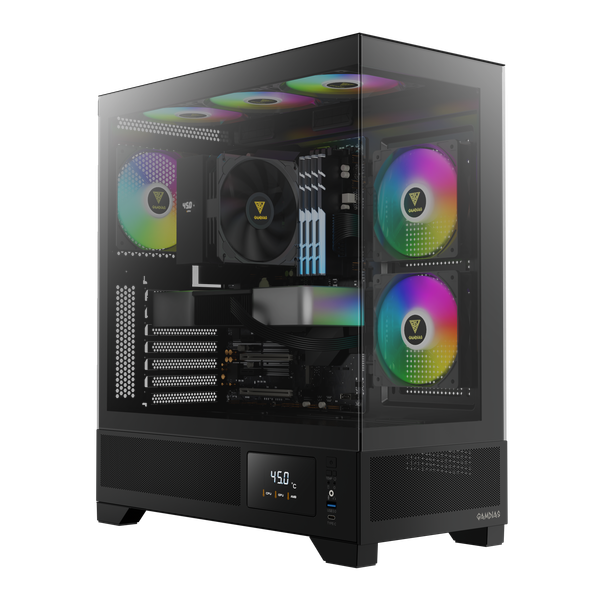

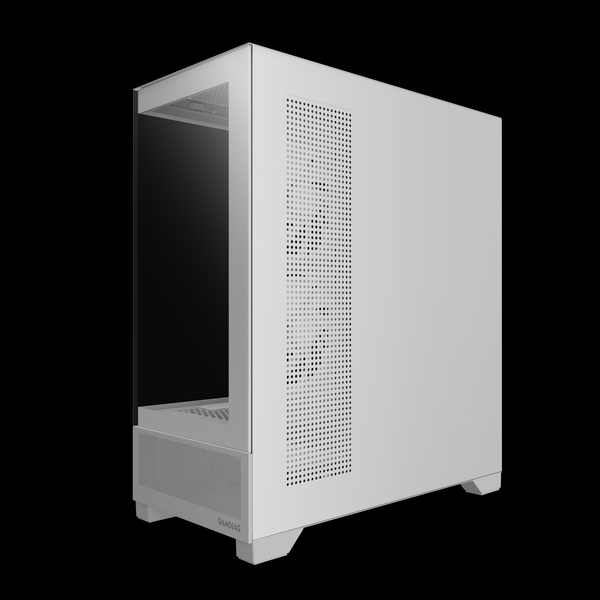

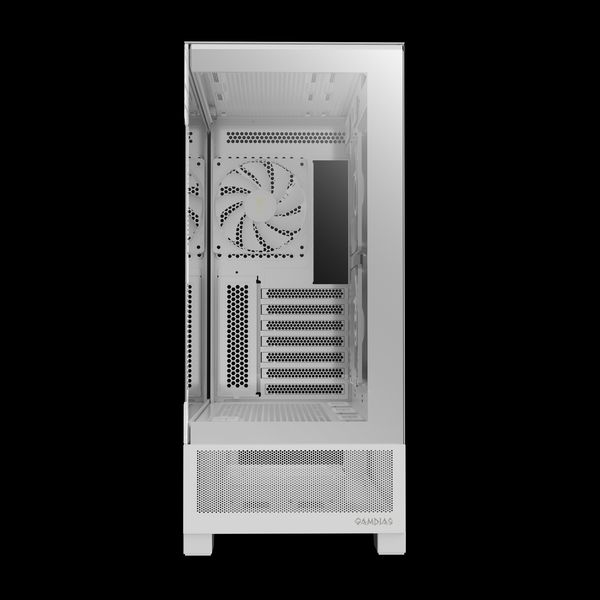

The ATLAS M1 Series is available in black and white editions. The case features perforated air vents with three built-in ARGB PWM fans for optimal airflow and a customizable monitor for real-time system information. Enjoy the benefit of seamless tempered glass panels providing stunning visuals of your build.

POWERFUL VENTILATION

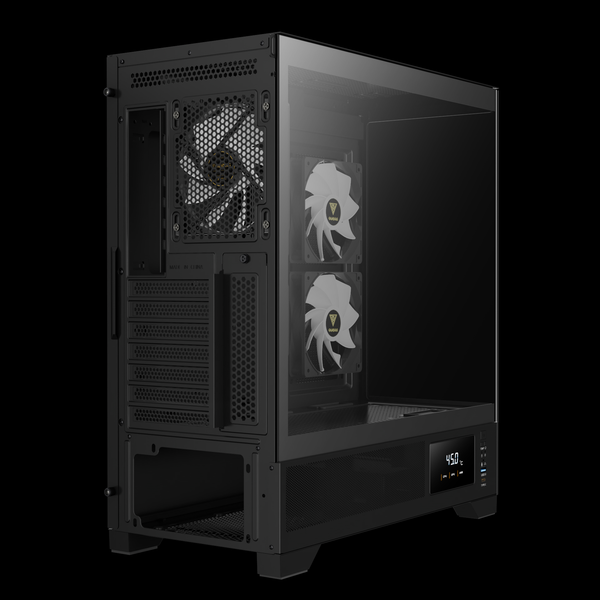

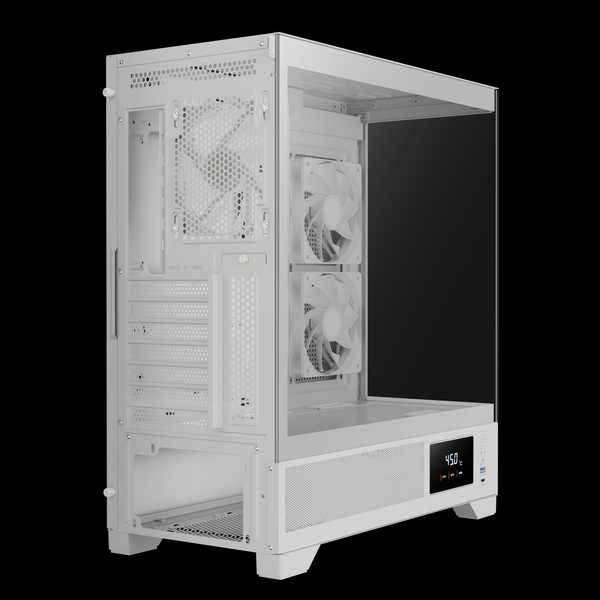

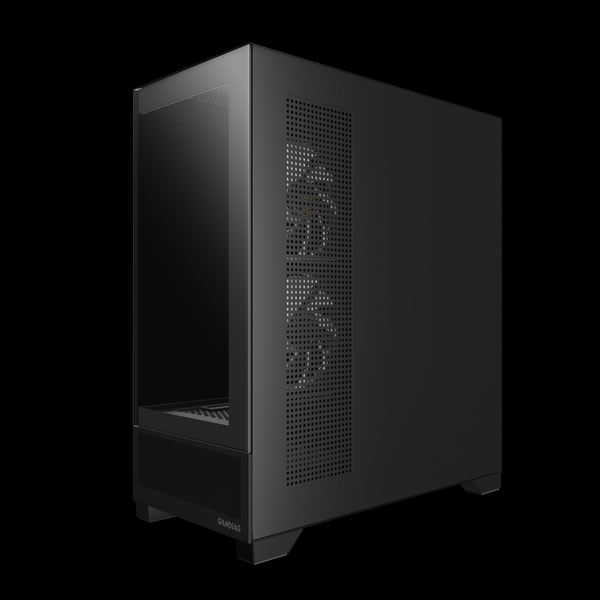

The ATLAS M1 is built with perforated air vents throughout the case, vents perforated on the side panel, PSU chamber, and back exhaust to ensure superior airflow configurations.

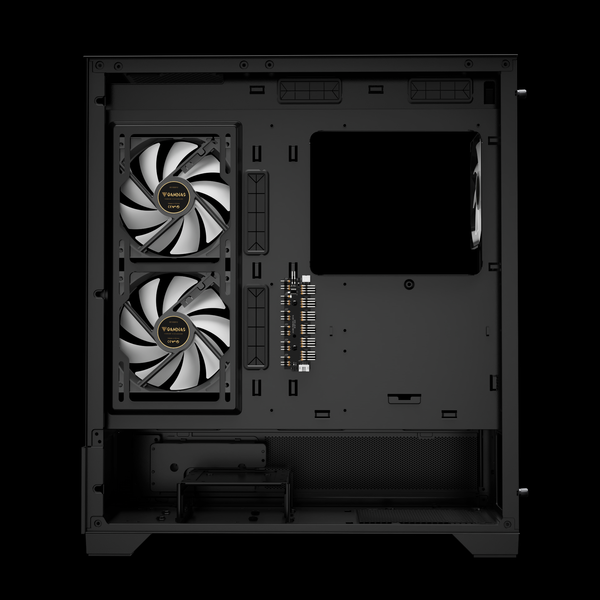

3 PRE-INSTALLED ARGB PWM FANS WITH BUILT-IN FAN HUB

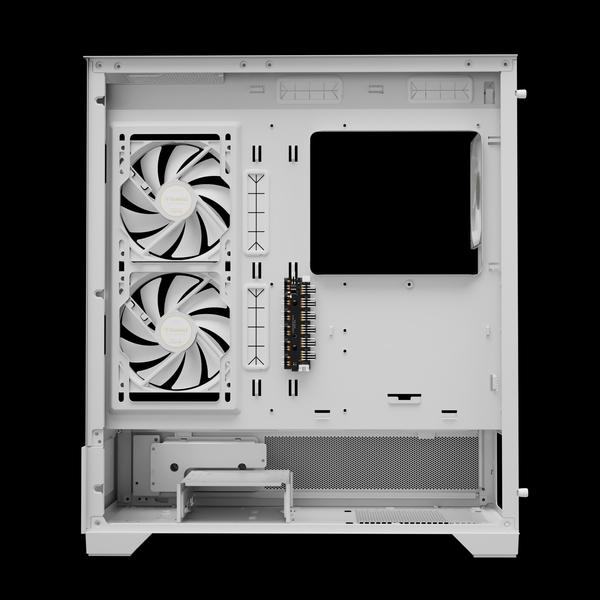

Featuring three built-in PWM ARGB fans, the case can provide exceptional lighting and fine-tuned airflow. Additionally, it includes a 6-port PWM ARGB fan hub, allowing for easy management and synchronization, ensuring a cohesive lighting setup.

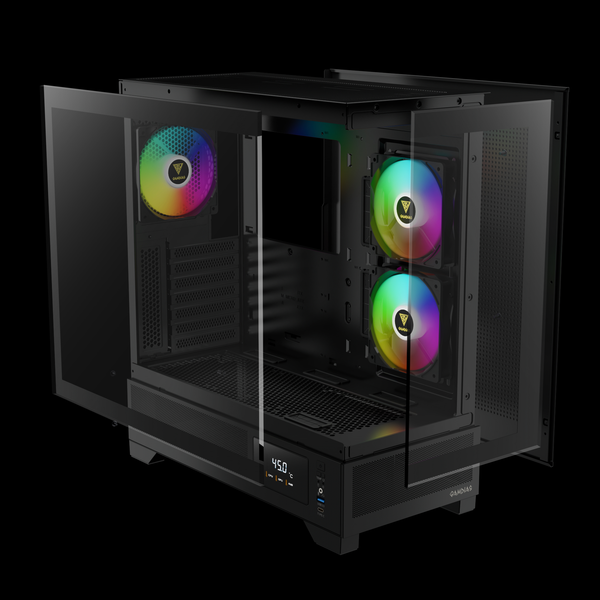

BREATHTAKING VISUALS

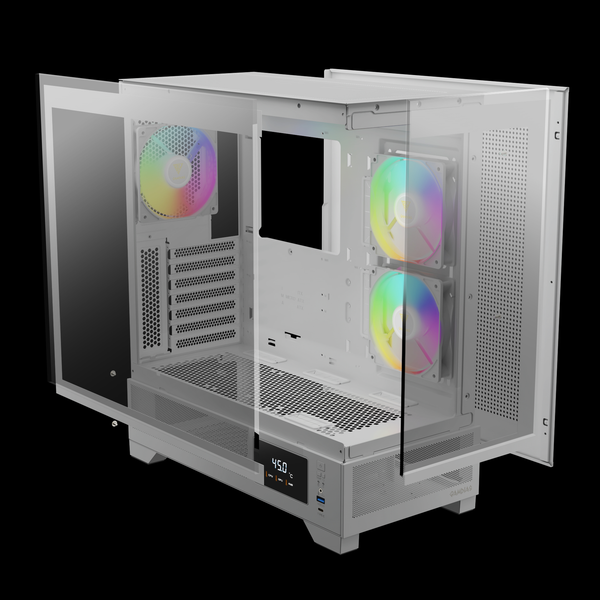

The ATLAS M1 provides a perfect view of all your components with its seamless glass panels equipped with a clasp mechanism for simple glass removal. The case excels in not only visuals but improves on the user's modding experience.

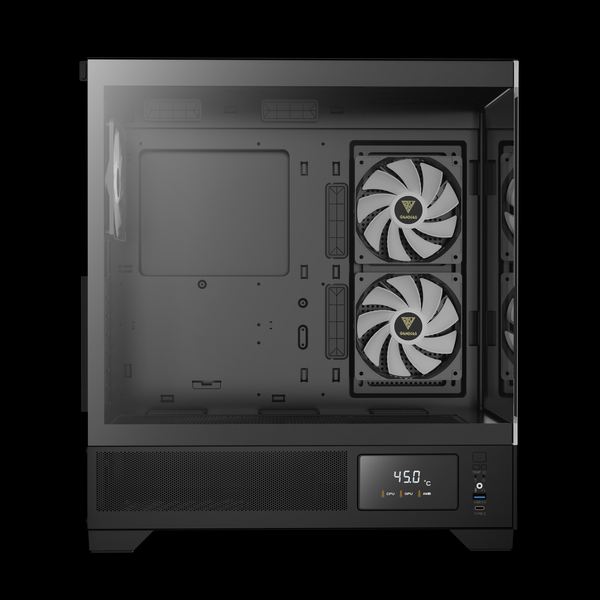

MONITOR REAL-TIME STATUS

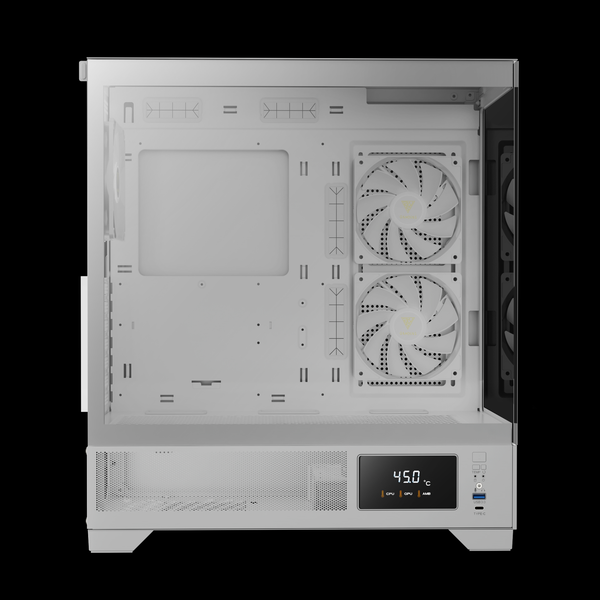

The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature adjustable via ZEUS CAST software. Users can also switch between CPU/GPU/AMB/OFF modes through the I/O port.

COOLING SUPPORT

The ATLAS M1 can accommodate up to 6 fans and offers flexible options for the installation of radiators at the top, side, and rear.

INTERIOR ACCOMMODATION

The case offers the option to house up to ATX motherboards, air coolers with 160mm RAM clearance, and VGA cards with lengths up to 410mm.

STORAGE COMPATIBILITY

The ATLAS M1 Series supports installation of up to 4x 2.5" or 3 x 2.5"+1x 3.5" and can accommodate PSU lengths up to 180mm.

DUST RESISTANT

Equipped with dust filters on the top and bottom, the case effectively protects against dust while maintaining ventilation.

CONCISE I/O DESIGN

The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, a USB 3.0 port, a fan LED control, a monitor mode switch, and an integrated audio jack.
