ATHENA M4M

MINIMAL FORM. MASSIVE POTENTIAL.

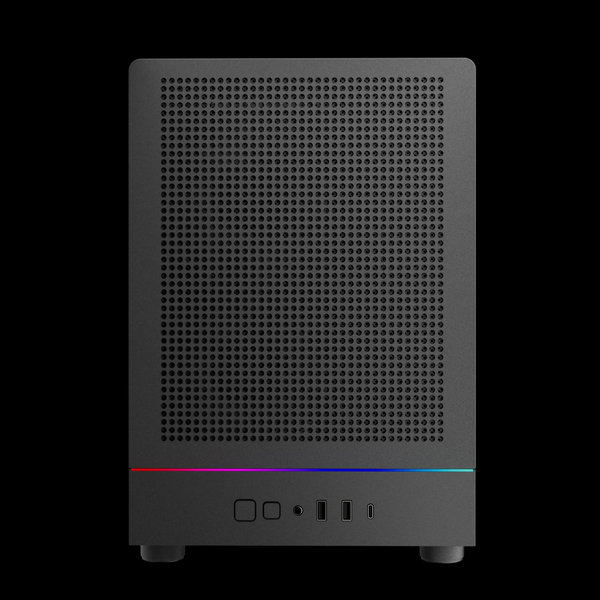

• Perforated Mesh Front Panel with Lighting Strip

• 3 Built-in 120mm NOTUS M1 Fans

• Front-Mounted ATX PSU Design

• Supports Dual 360mm Radiators

• Supports Connector-hidden Motherboards

• Fits Mini-ITX, and Micro-ATX motherboards

• Compatible with 395mm GPU

• Gen 2x2 Type-C Port Ready

Case Type: MID Tower
MB hỗ trợ: Micro-ATX、Mini-ITX
Chất liệu: SPCC & ABS & Kính cường lực & Gỗ

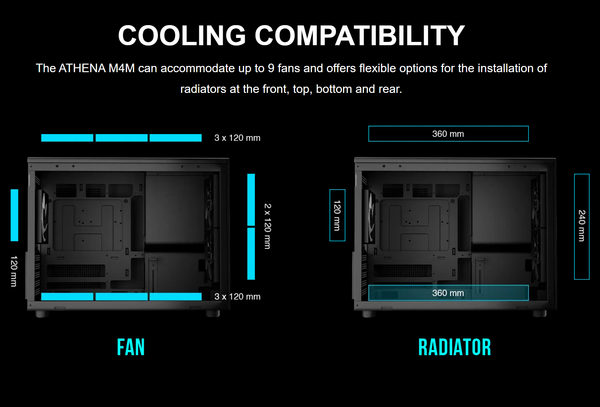

Tản/fan hỗ trợ:
AIO: Trên: 360mm / Trước: 240mm / Dưới: 360mm.
Fan: Trên: 3 x 120mm / Dưới: 3 x 120 mm / Trước : 2 x 120 mm
/ Sau: 1 x 120mm
Mã LED: SẴN 1 FANS ARGB syncmain, 2 fan PWM không LED, đi kèm controller hub
Mã Gỗ: SẴN 3 FANS PWM không LED, đi kèm controller hub

Hỗ trợ ổ cứng:
2 x 2.5" or 1 x 2.5"+1 x 3.5"
I/O Ports: USB 3.0 x2, Type Cx1, HD Audio x1, Reset x1

Hỗ trợ chiều cao tản CPU: 175mm
Hỗ trợ chiều dài VGA: 395mm
Hỗ trợ PSU: 150mm
Kích thước:
446 x 235 x 347mm

SPECIFICATIONS

Model

ATHENA M4M

CASE

Case TypeMicro Tower

MB SupportMini-ITX、Micro-ATX

Synchronization5V 3-Pin Addressable Header

CASE ColorBlack

Expansion Slots5

MaterialSPCC & ABS & Tempered glass

WindowLeft

Radiator SupportTop: 360 mm
Front: 240mm
Bottom: 360mm

Fan SupportTop: 3 x 120mm
Bottom: 3 x 120 mm
Front : 2 x 120 mm
Rear: 1 x 120mm

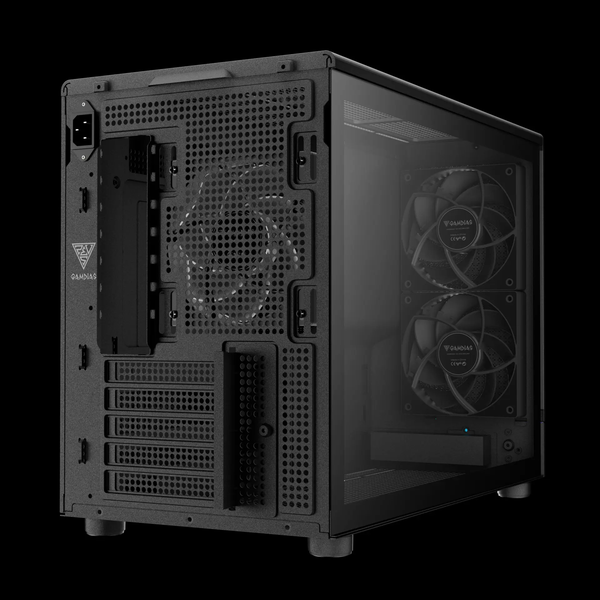

Pre-installed FansFront: 2 x 120mm BK PWM Fans
Rear: 1 x 120mm ARGB PWM Fan

Drive Bays1 x 3.5" + 1 x 2.5" or 2 x 2.5"

I/O PortUSB 3.0 x2, Type Cx1, HD Audio x1, LED Control x1

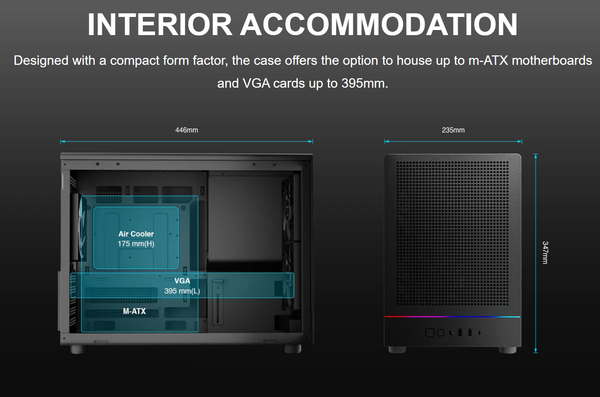

ClearanceCPU cooler height limitation: 175mm
VGA length limitation: 395mm
PSU length limitation: 150mm

Dimension (L x W x H)446 x 235 x 347mm

Pre-installed Control BOX8 Ports Hub (4 port are used)

NoteSome PSUs may have compatibility issues depending on the AC inlet orientation; we recommend using a GAMDIAS PSU.
