Case Type: MID Tower
MB hỗ trợ: E-ATX, ATX、Micro-ATX、Mini-ITX
Chất liệu: SPCC & ABS & Tempered glass với mặt lưới trước. Sẵn 4 fans ARGB 120 . FAN PWM điều chỉnh trong Bios
Tản/fan hỗ trợ:
Top: 360mm、280mm / Front: 360mm、280mm / Rear: 120mm、140mm
Hỗ trợ ổ cứng:
2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage)
4 x 2.5" (SSD Bracket)
I/O Ports:
USB 3.0 x1, Type Cx1, HD Audio x1, LED Control x1, Đi kèm Hub 8 slots
Hỗ trợ chiều cao tản CPU: 170mm
Hỗ trợ chiều dài VGA: 420mm
Hỗ trợ PSU: 200mm
Kích thước:
460 x 218 x 450 mm

SPECIFICATIONS

Model

ATHENA M3

CASE

Case Type MID Tower

MB Support E-ATX、ATX、Micro-ATX、Mini-ITX

Synchronization 5V 3-Pin Addressable Header

CASE Color Black

Expansion Slots 7

Material SPCC & ABS & Tempered glass

Window Left

Radiator Support Top: 360mm / Front: 360mm / Rear: 120mm

Fan Support Top: 3 x 120mm , 2 x 140mm
Front : 3 x 120 mm
Rear: 1 x 120mm

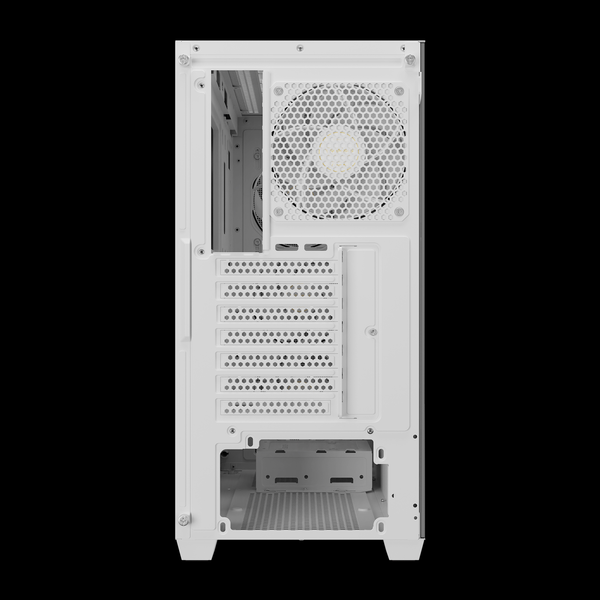

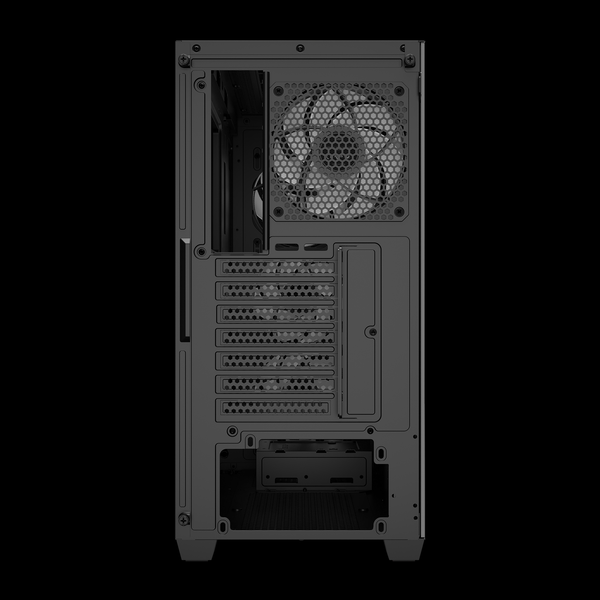

Pre-installed Fans Front: 3x 120mm ARGB PWM Fans
Rear: 1 x 120mm ARGB PWM Fan

Drive Bays 2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage)
4 x 2.5"

I/O Port USB 3.0 x1, Type Cx1, HD Audio x1, LED Control x1

Clearance CPU cooler height limitation: 170mm
VGA length limitation: 420mm
VGA width limitation: 150mm
PSU length limitation: 200mm

Dimension (L x W x H) 460 x 218 x 450 mm

Net Weight 6.59 kg / 14.53 lb

Pre-installed Control BOX 8 Ports Hub (4 ports are used)

UNLEASHING SUPERIOR PERFORMANCE

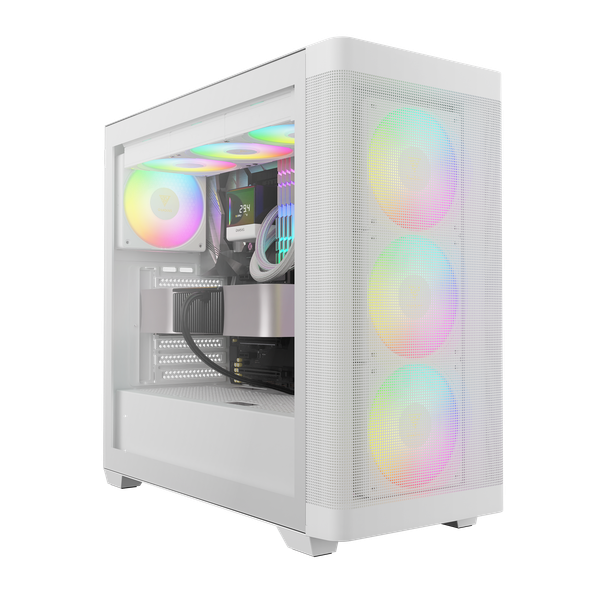

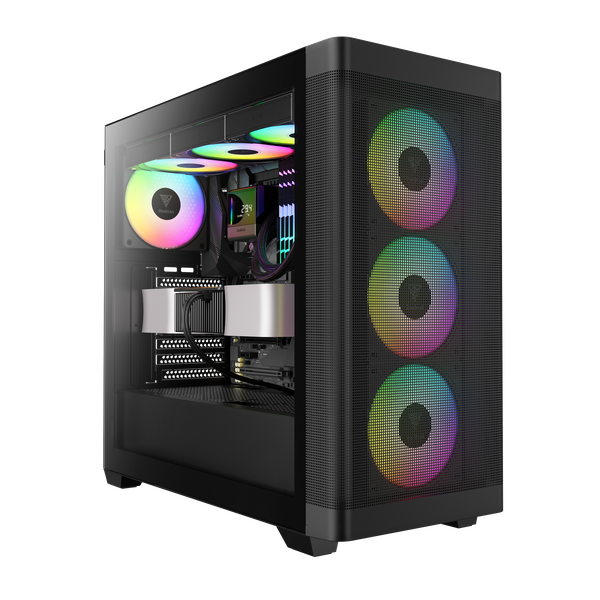

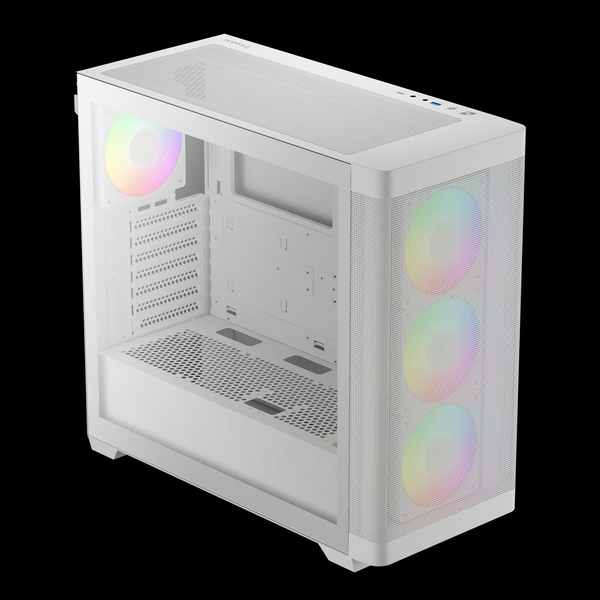

The ATHENA M3 Series mid-tower case is engineered to optimize airflow, ensuring top-tier performance for demanding applications. Its mesh front panel, combined with four built-in 120mm ARGB PWM fans, significantly enhances airflow efficiency. This case improves thermal management and offers a sleek and visually appealing design, making it an excellent choice for all users.

EXTENSIVE AIRFLOW CONFIGURATION

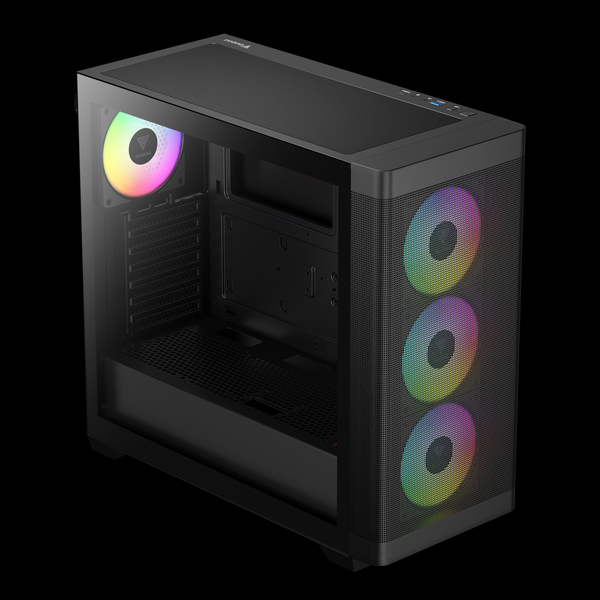

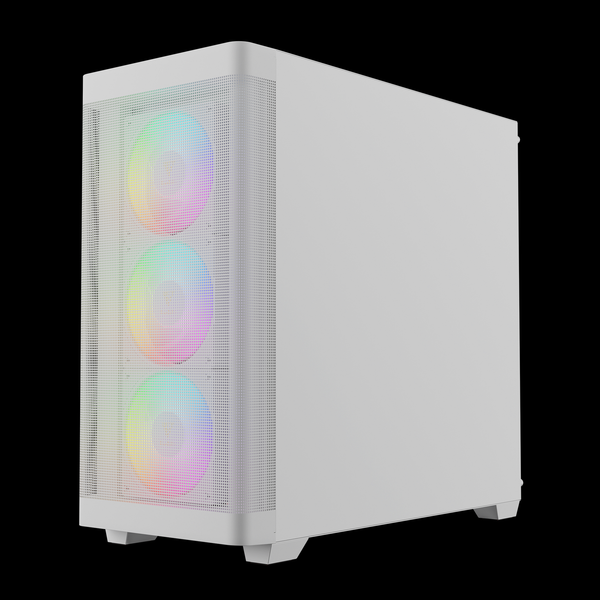

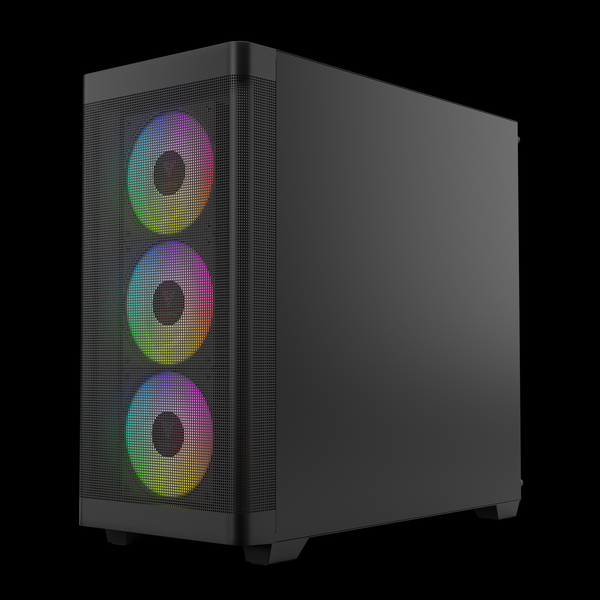

The ATHENA M3 allows robust airflow intake and exhaust configurations with a mesh front panel and perforated vents built throughout the case.

4 ARGB PWM FANS WITH BUILT-IN FAN HUB

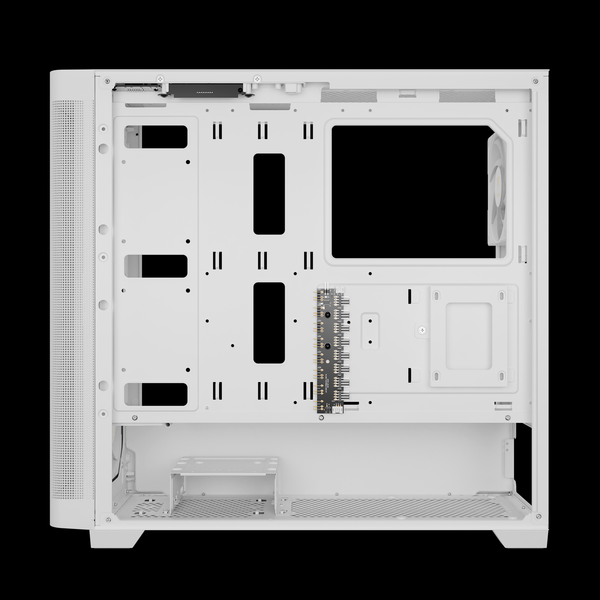

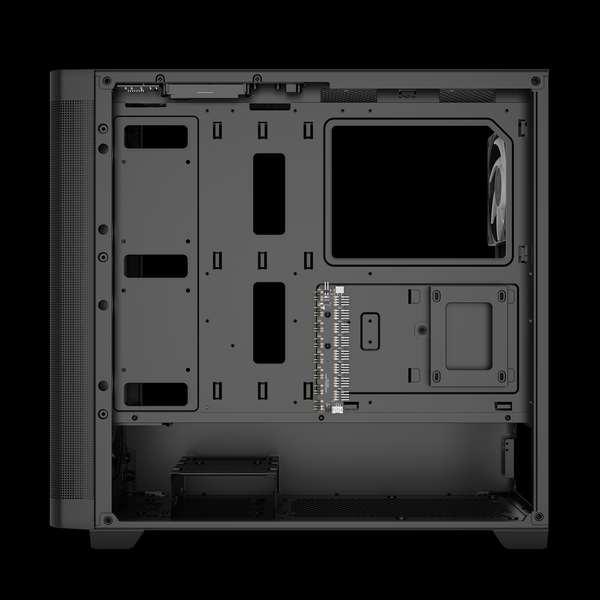

Featuring four built-in silent PWM ARGB fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.

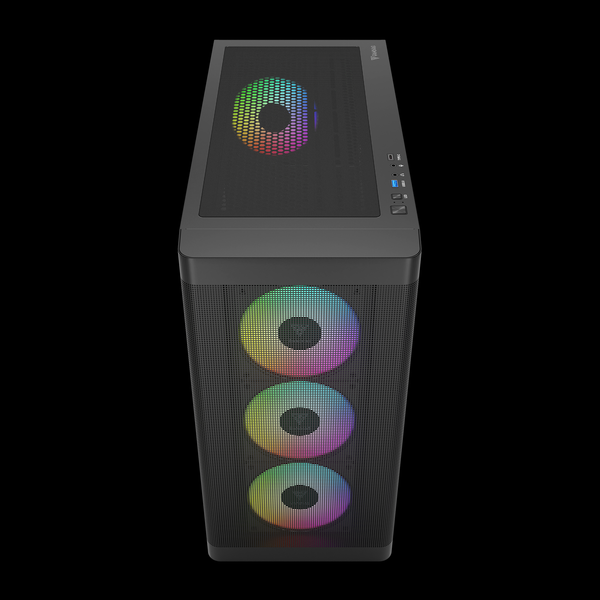

DUAL 360MM RADIATOR SUPPORT

The ATHENA M3 provides superior cooling performance as it can support 360mm radiators on the front and the top simultaneously.

GEN 2 TYPE-C INTERFACE

The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, USB 3.0 port, fan LED controls, and additional audio connectivity.

COOLING COMPATIBILITY

The case accommodates three 120mm or two 140mm fans at the top, with multiple mounting points for 240mm or 360mm radiators at the front and top. Additionally, it supports CPU coolers with heights up to 170mm.

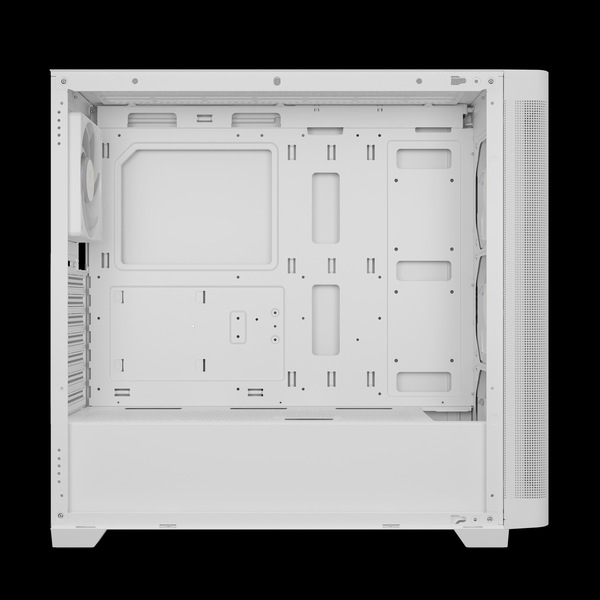

INTERIOR ACCOMMODATION

The case offers the option to house up to E-ATX motherboards, air coolers with 170mm RAM clearance, and VGA cards with lengths up to 420mm.

STORAGE COMPATIBILITY

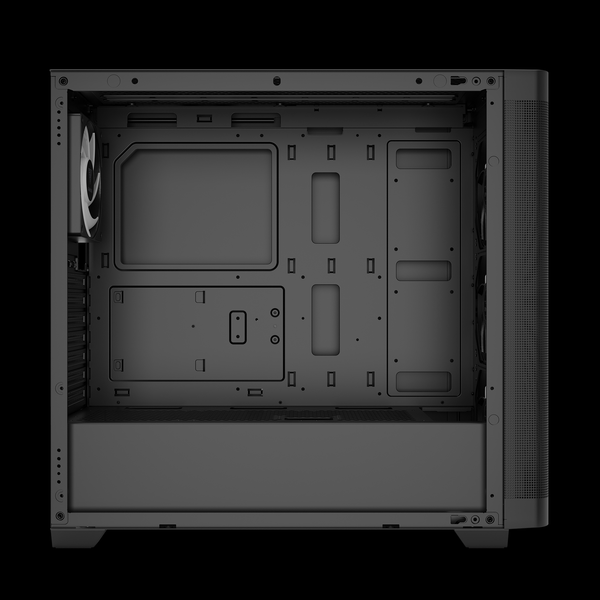

The interior configuration has ample room for cable management optimization and supports PSU lengths up to 200mm.
