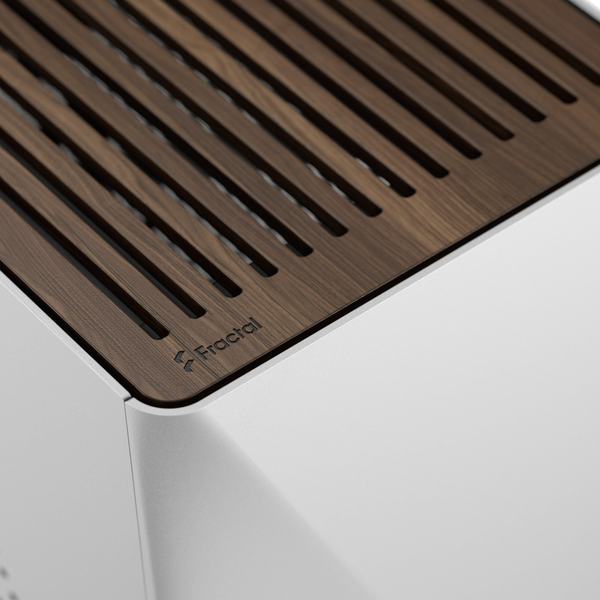

Era 2

Era 2 is an evolution of our iconic small form factor case — melding design innovation with engineering prowess.

Specifications

• 3.5"/2.5" drive mounts

  0 total, 0 included

• Dedicated 2.5" drive mounts

  4 total, 4 included (2 on motherboard wall)

• 5.25” drive mounts

  0 total, 0 included

• Expansion slots

  3

• Motherboard compatibility

  ITX

• Power supply type

  SFX / SFX-L

• Front interface

  1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio

• Total fan mounts

  4 x 120 or 2 x 120 and 2 x 140 mm (2x120 mm Aspect PWM fans included)

• Top fan

  2 x 120 mm or 2 x 140

• Bottom fan

  2 x 120 mm

• Dust filters

  Bottom

• Top radiator

  Up to 315 x 140 mm with total thickness ≤ 52 mm
  Up to 300 x 140 mm with total thickness ≤ 58 mm

• GPU max length

  326 mm

• GPU max Height

  137 mm

• GPU max thickness

  48-63 mm (depending on motherboard wall position)

• CPU cooler max height

  55-70 mm (depending on motherboard wall position)

• Cable routing grommets

  No

• Fixed cable straps

  Yes (2 included)

• Captive thumbscrews

  PCI-e Blanks

• Panels

  Aluminum

• SFF-Ready Enthusiast GeForce Cards

  Yes

• *Note

  If you wish to use the Era 2 PCIe 4.0 riser cable together with a PCIe 5.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen4 for best system stability.

Other

• Case dimensions (LxWxH)

  366 x 165 x 314 mm

• Case dimensions w/o feet/protrusions/screws

  365 x 165 x 314 mm

• Net weight

  4,64 kg

• Package dimensions (LxWxH)

  455 x 250 x 408 mm

• Gross weight

  5.74 kg

• Package contents

  Case, Accessory Box, Designers Letter, Quick Start Note
